Connector Views
>>
Seats
>>
System Diagram
>>
Seat Connectors In Numeric Order
>>
357a
357a
Location:
in the seat under the
seat cushion

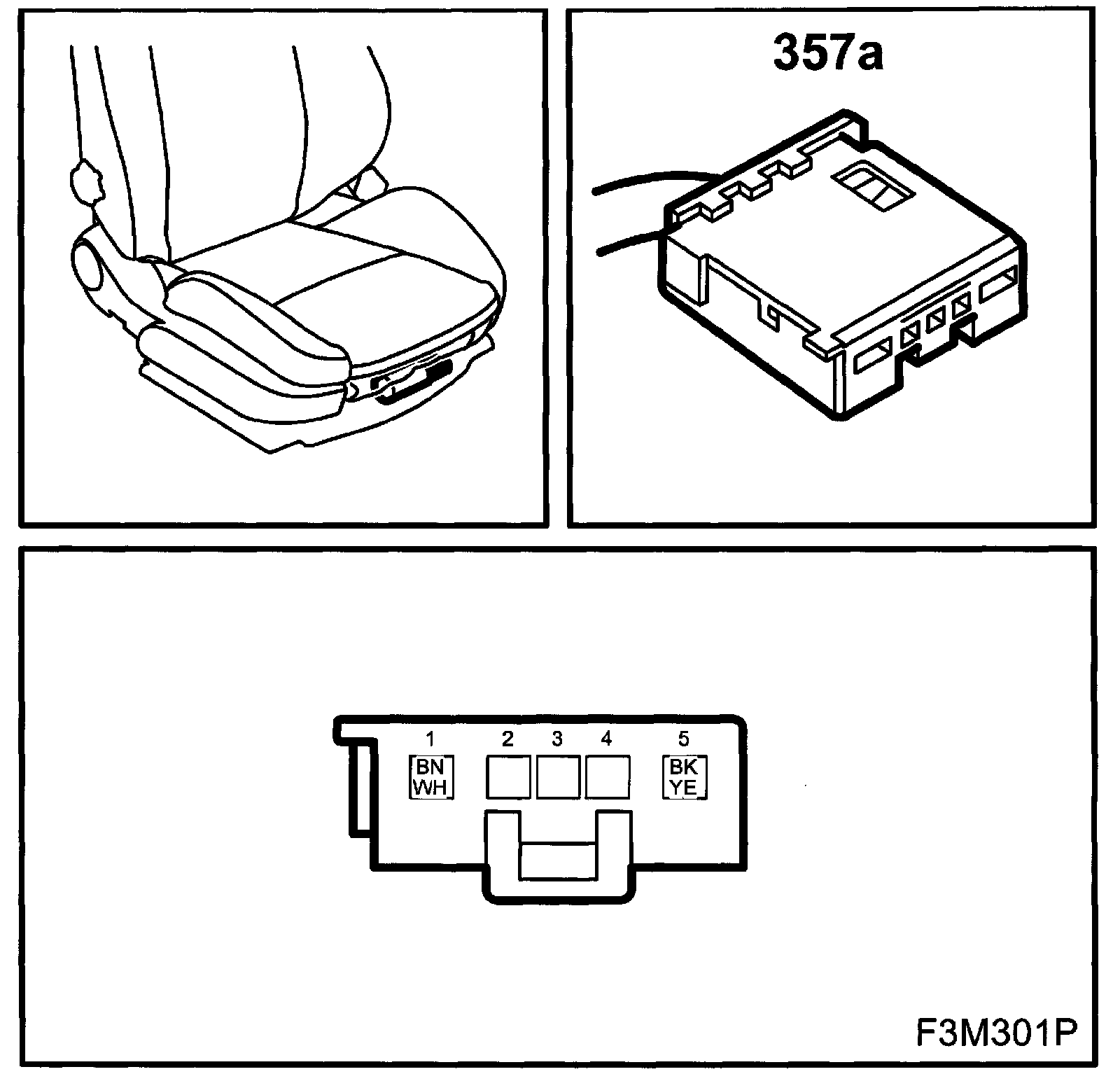

LH
Motor, Length Adjustment, Electrically Operated Seat (357a):

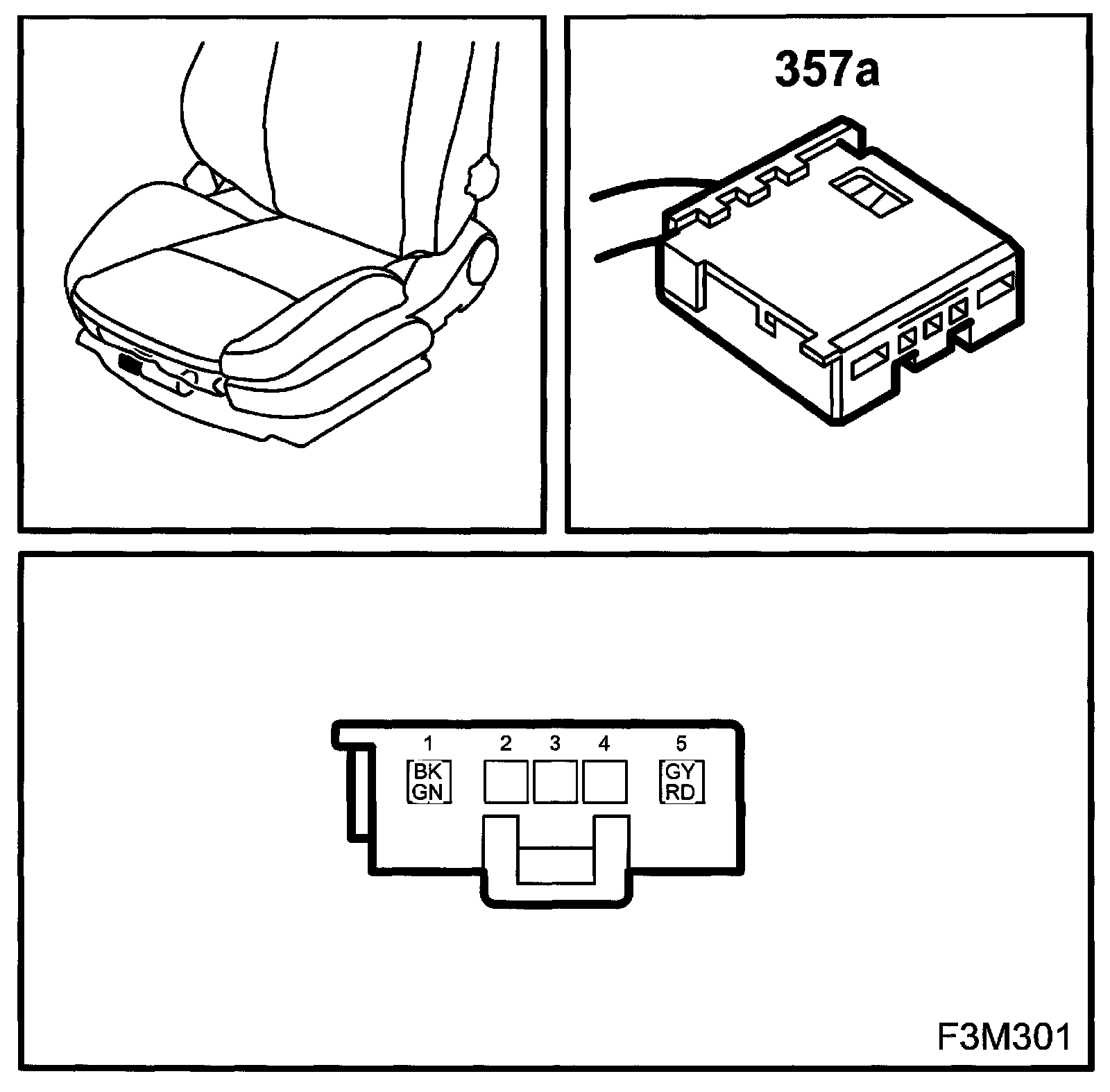

RH
Motor, Length Adjustment, Electrically Operated Seat (357a):
