Restraints and Safety Systems
>>
Seat Belt Tensioner
>>
Belt Tensioner, Rear Seat, Driver's Side (236RD)
Belt Tensioner, Rear Seat, Driver's Side (236RD)
Location:
under the parcel shelf

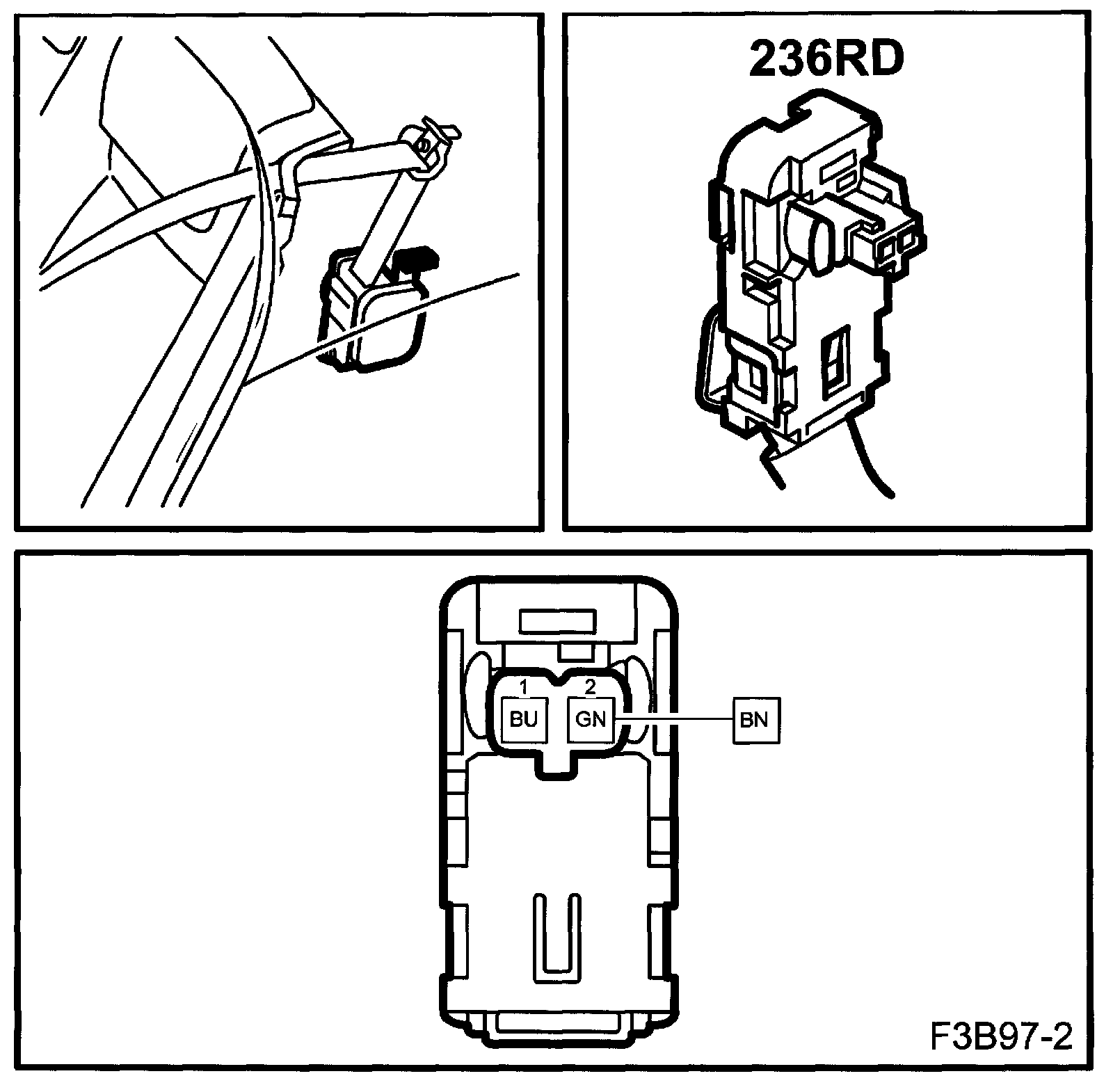

Belt Tensioner, Rear Seat, Driver's Side (236RD):
