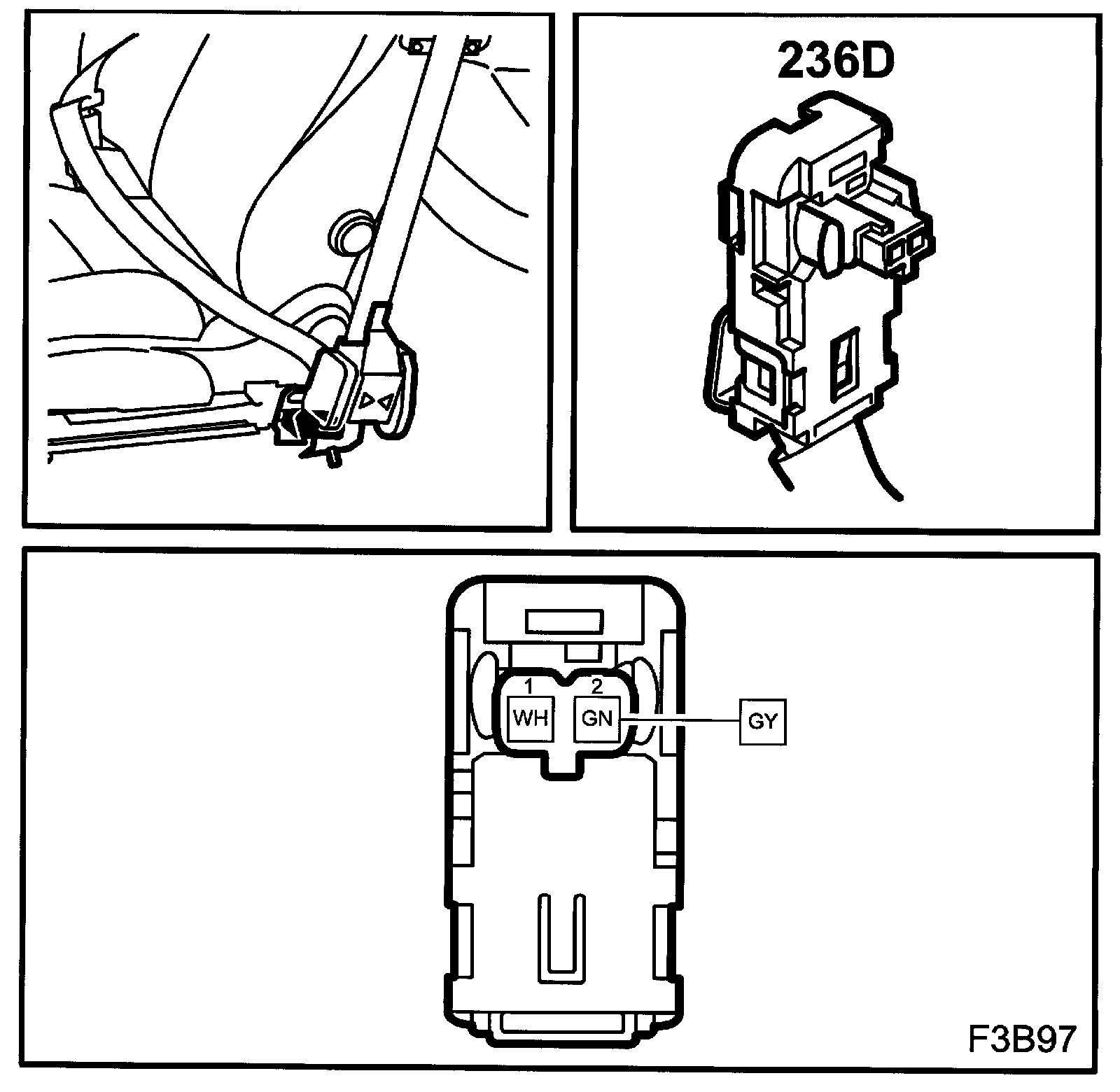

Belt Tensioner, Driver (236D)
Belt Tensioner, Driver (236D)
Location:
in the driver's side B-pillar
Belt Tensioner, Driver (236D):
