Entertainment Head Unit (353)
Entertainment Head Unit (353)
Location:
in centre console

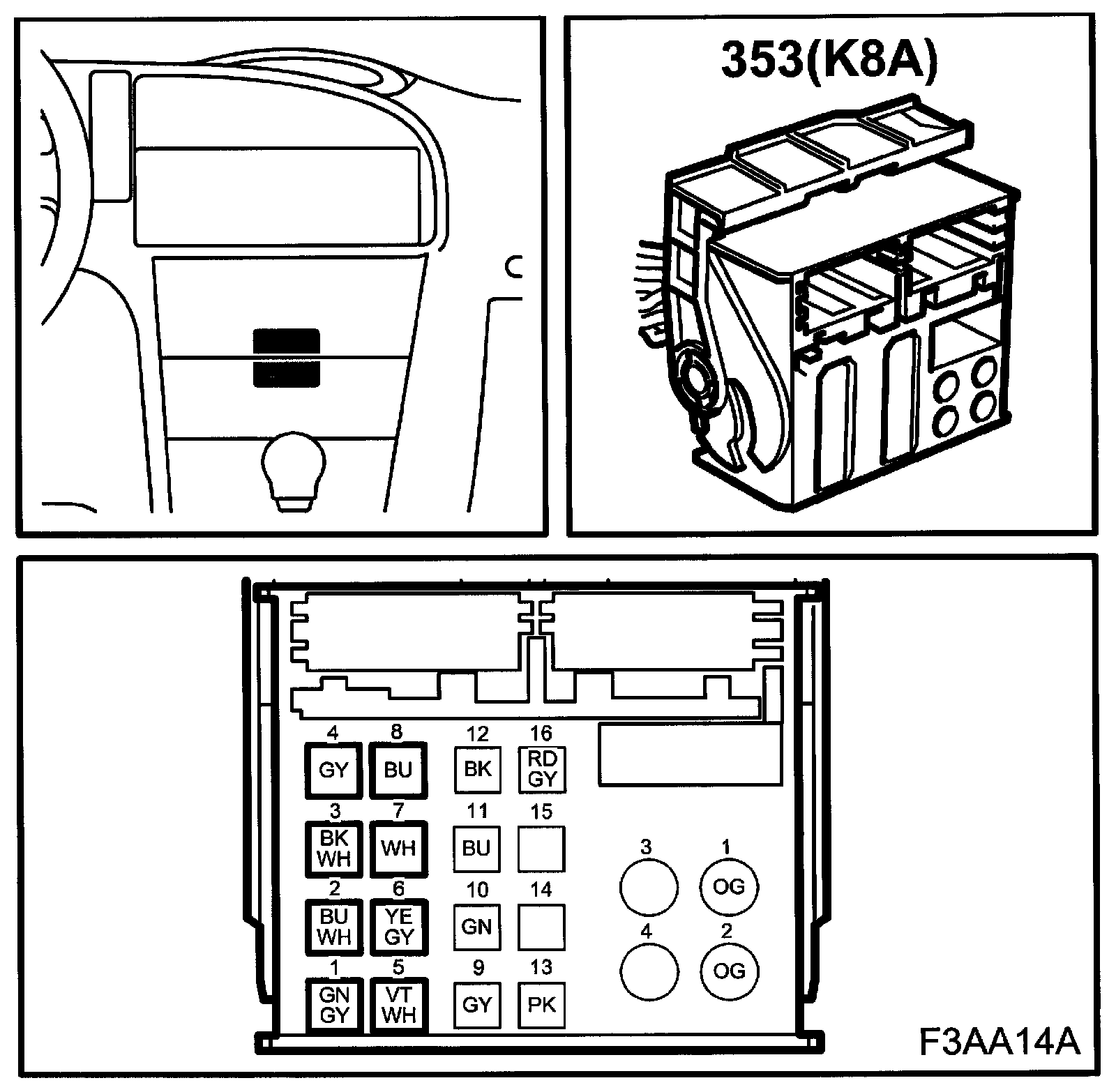

K8A
Entertainment Head Unit (353):

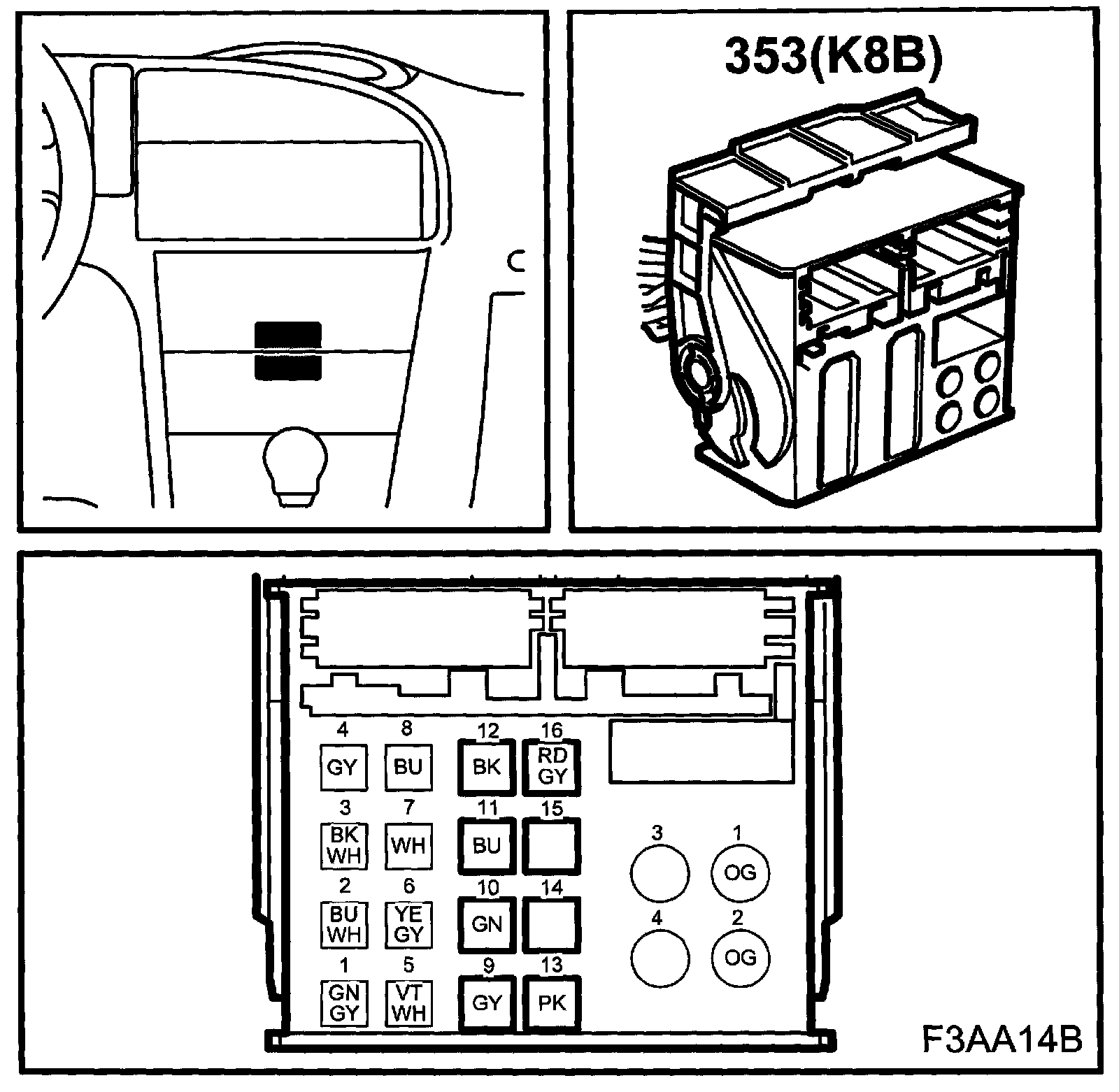

K8B
Entertainment Head Unit (353):

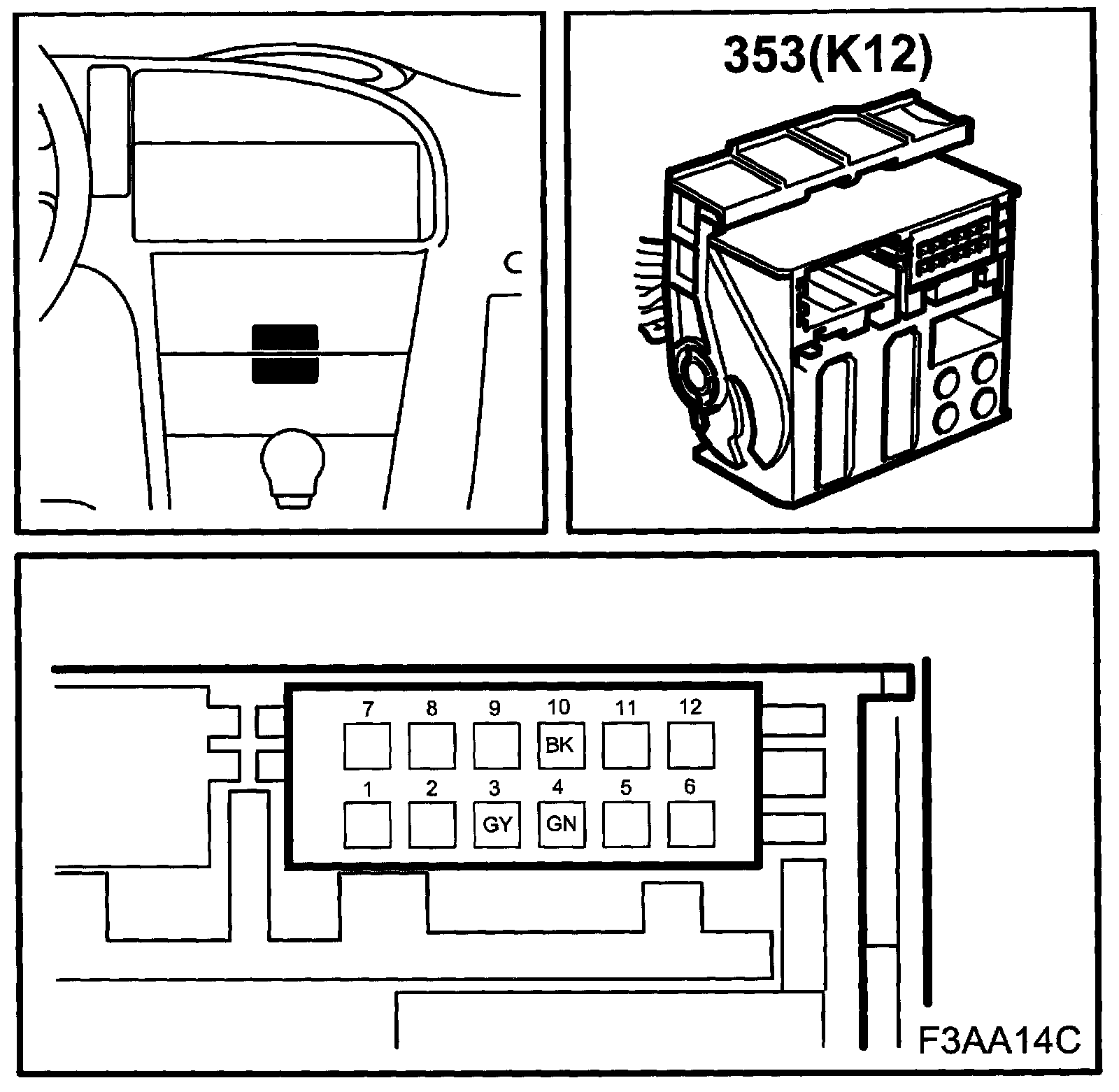

K12
Entertainment Head Unit (353):

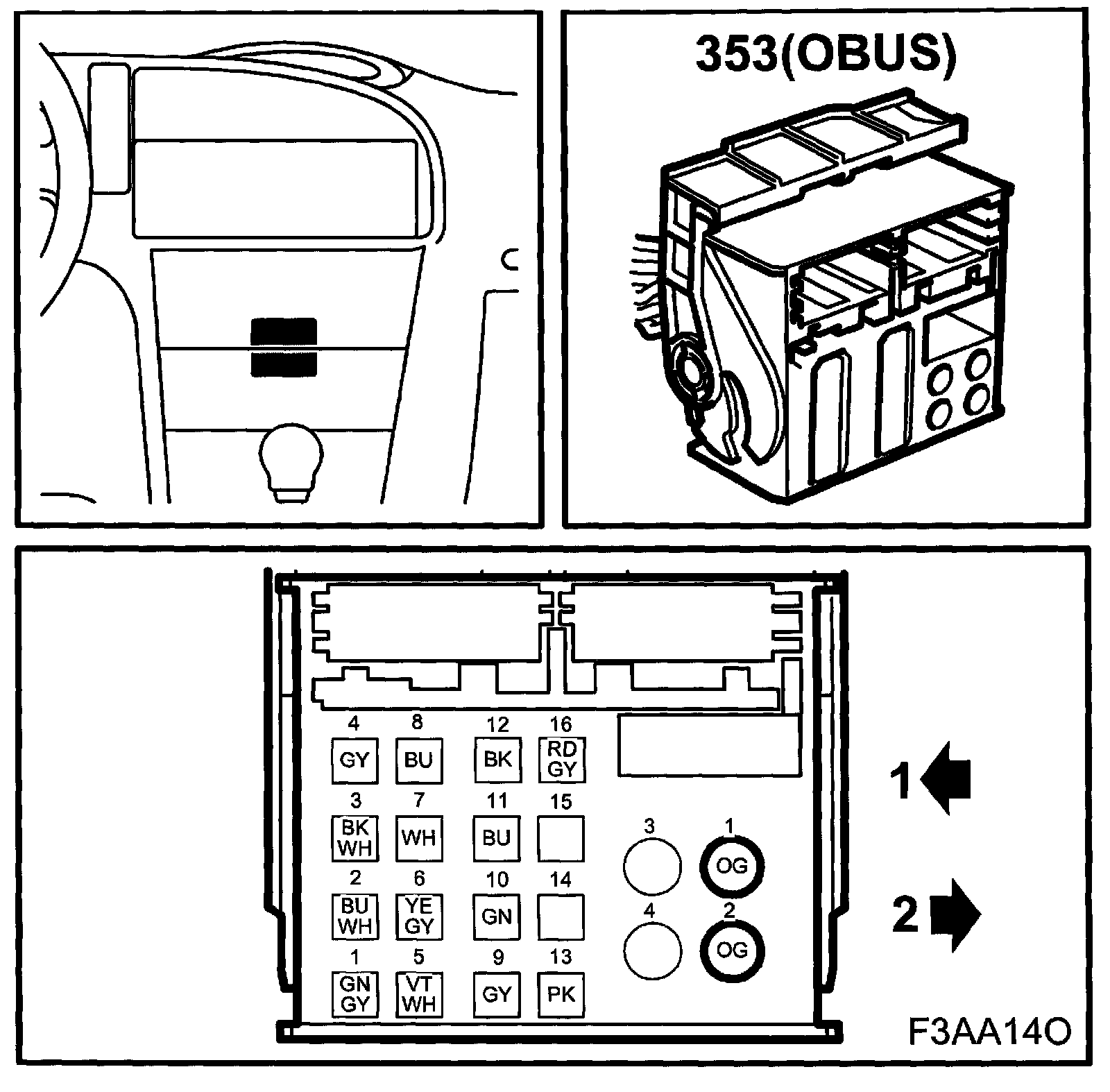

O-bus
Entertainment Head Unit (353):
