Speaker, Woofer, Rear, LH (266RLW)
Speaker, Woofer, Rear, LH (266RLW)

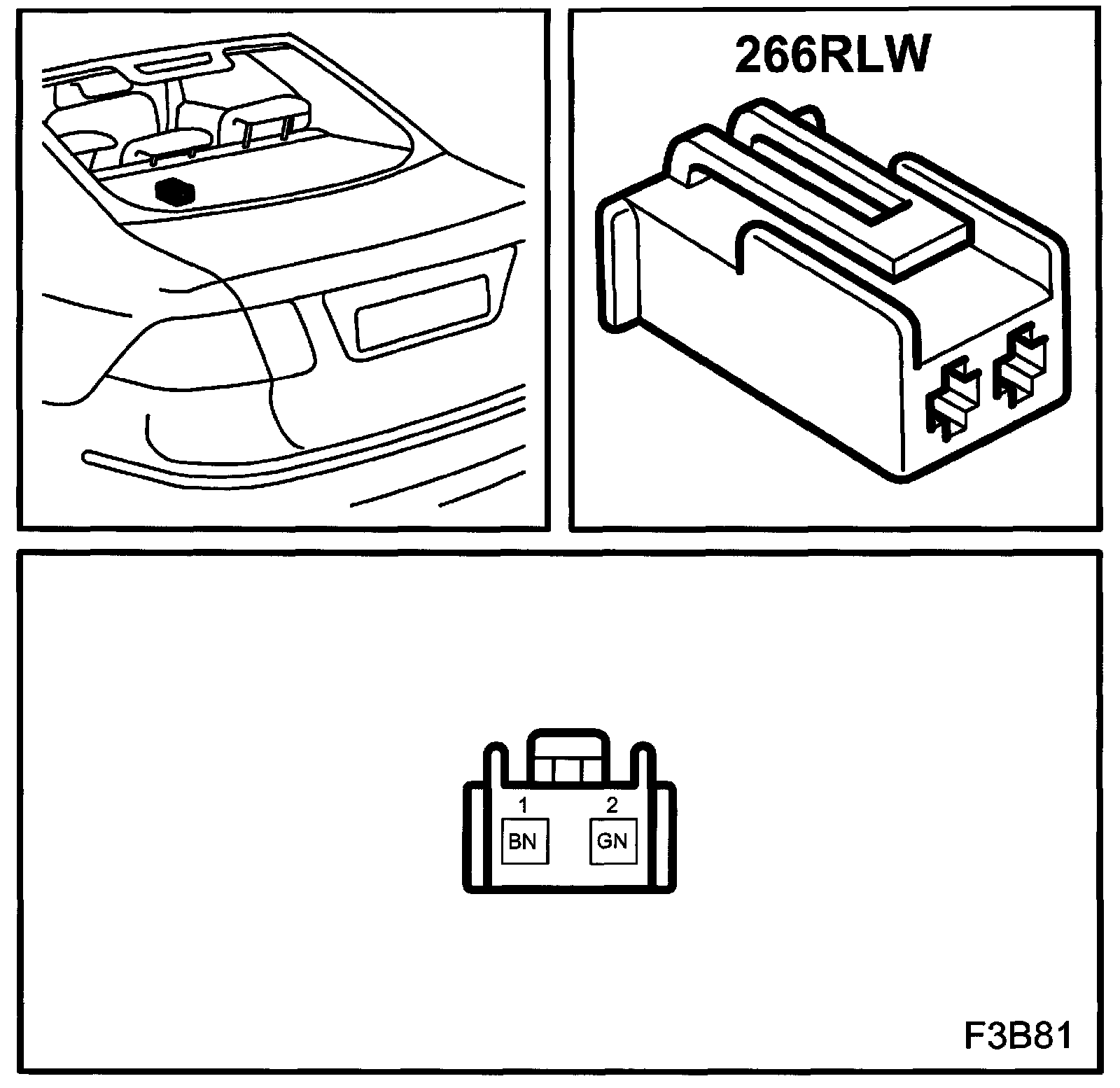

Location:
to the left in the parcel shelf
4D

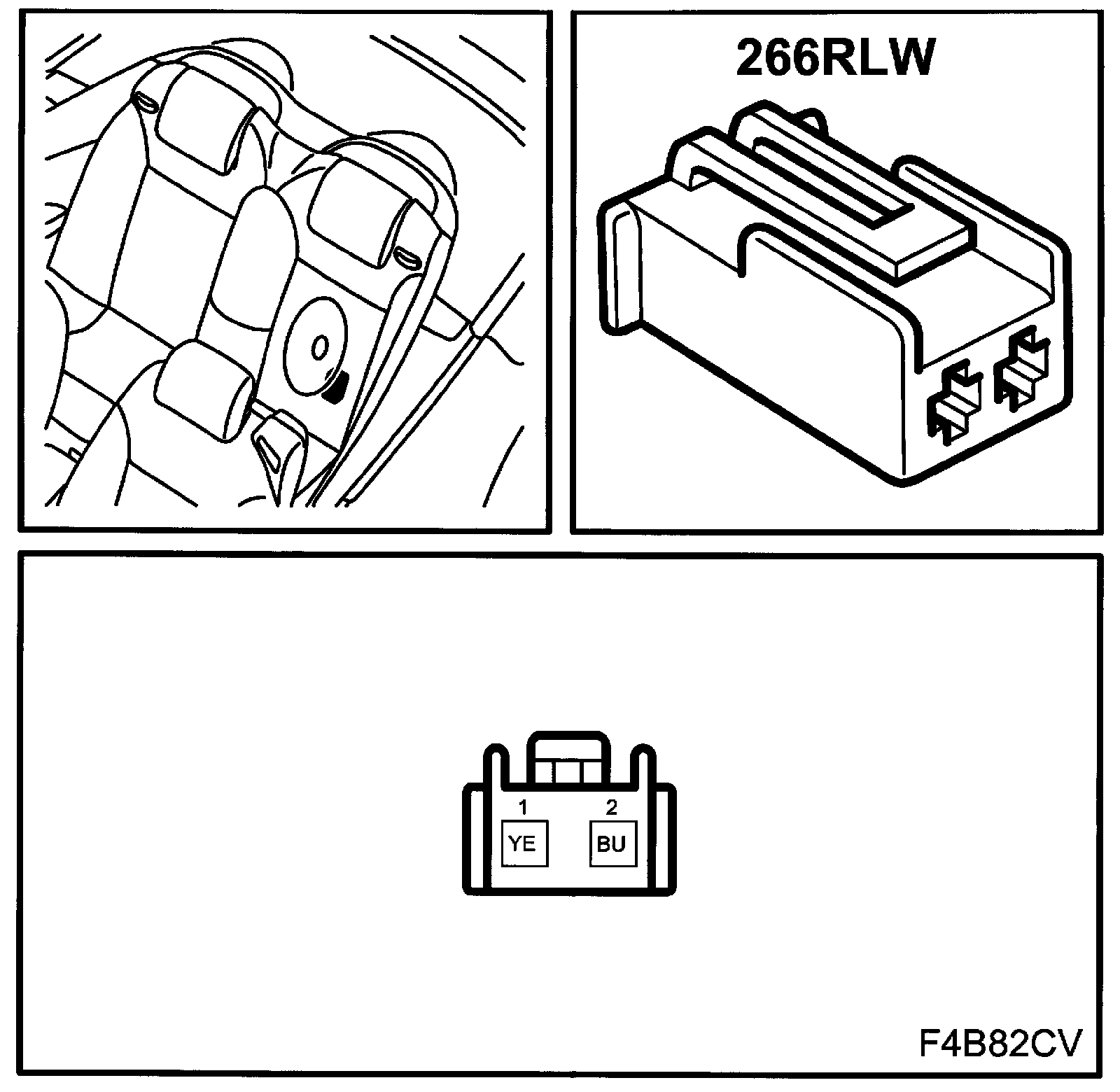

Speaker, Woofer, Rear, LH, (266RLW):
CV
Speaker, Woofer, Rear, LH, (266RLW):
