Speaker, Rear, RH (266RR)
Speaker, Rear, RH (266RR)
Location:
to the right in the parcel shelf
4D

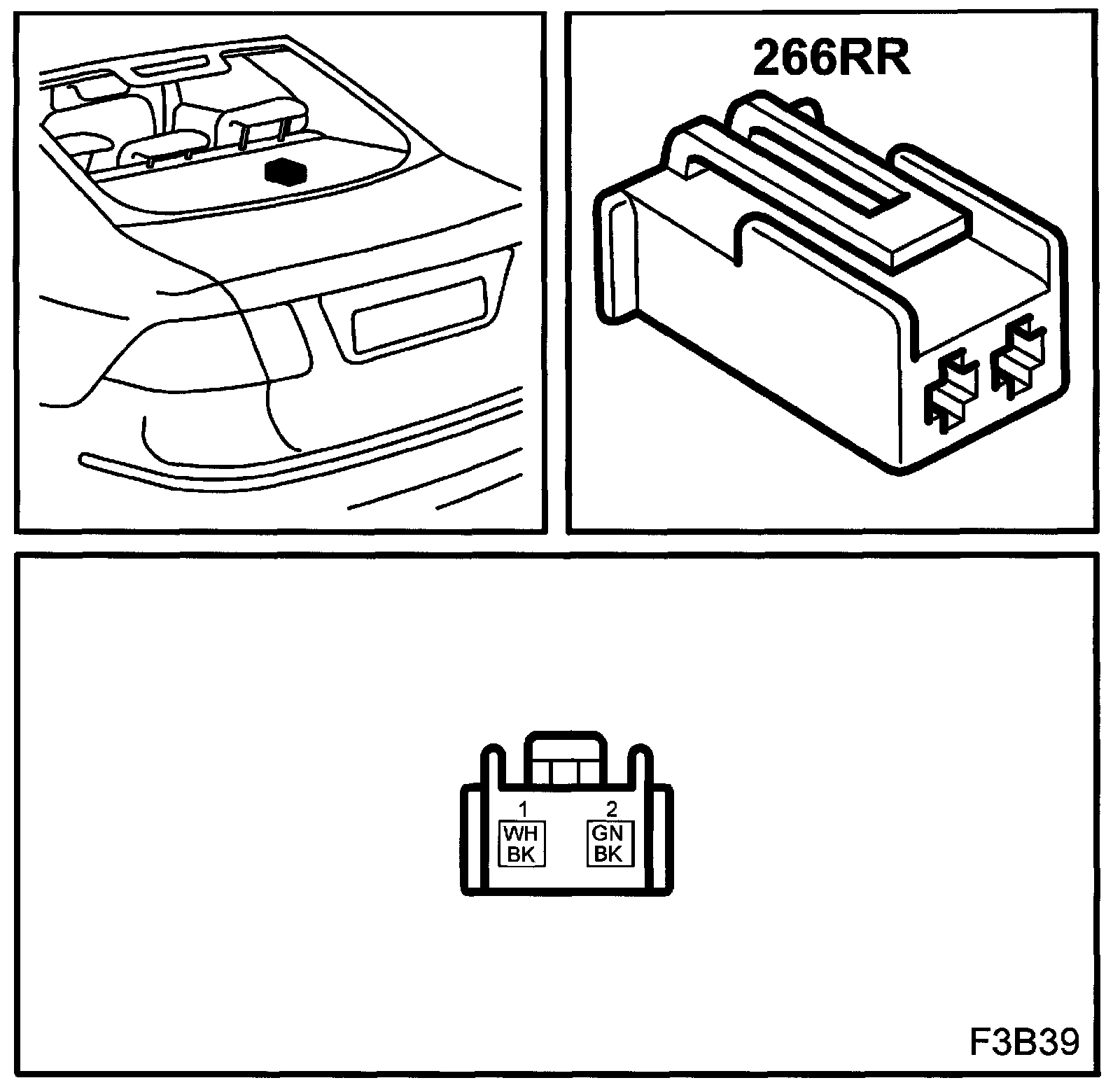

Speaker, Rear, RH, (266RR):
CV

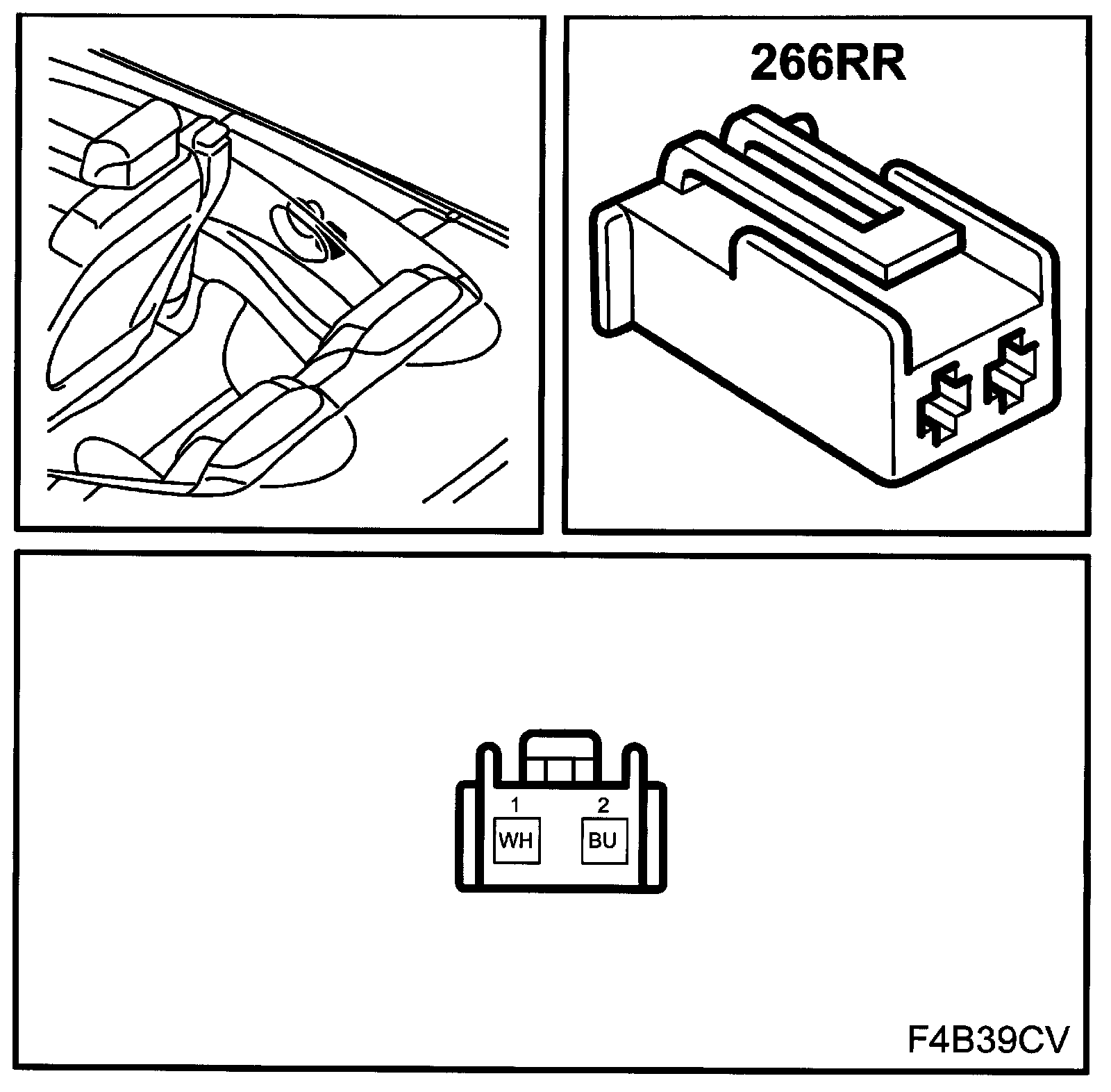

Speaker, Rear, RH, (266RR):
