Home >> Saab >> 2004 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Amplifier, Sound System >> Amplifier, Front Speaker (354F)

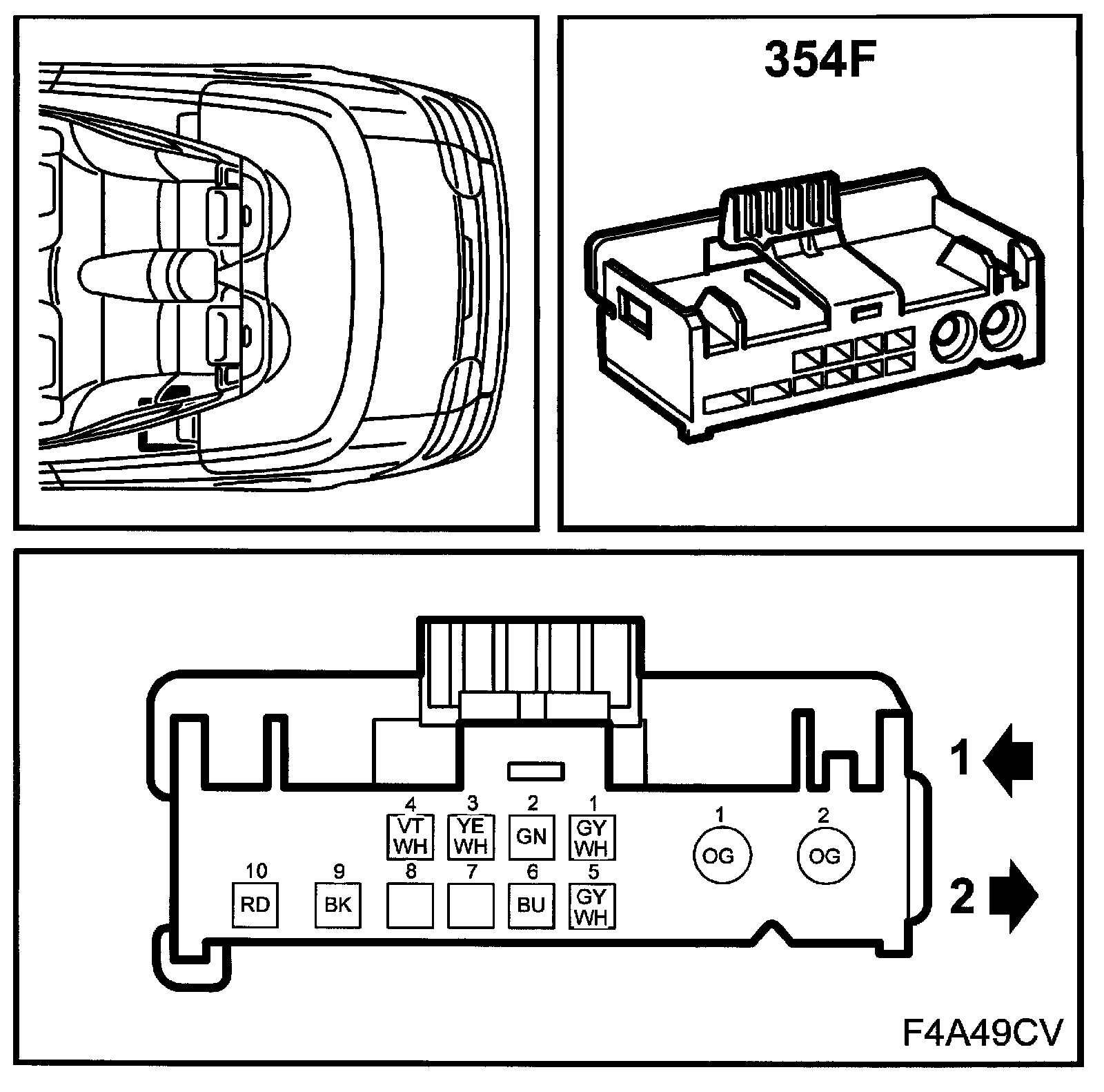

Amplifier, Front Speaker (354F)



Location: under the LH seat


4D


Amplifier, Front Speaker (354F):






CV


Amplifier, Front Speaker (354F):
