Compressor Clutch Relay

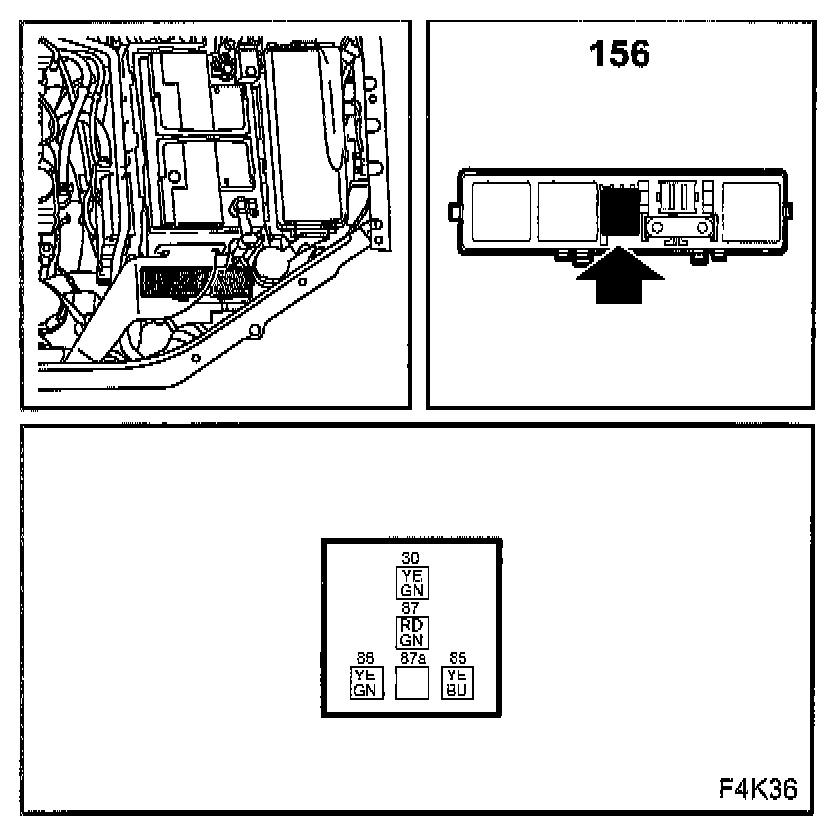

A/C Compressor Relay (156)
Location: in the electrical centre in front of the battery.
A/C Compressor Relay (156):
