9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
Control Module, A/T

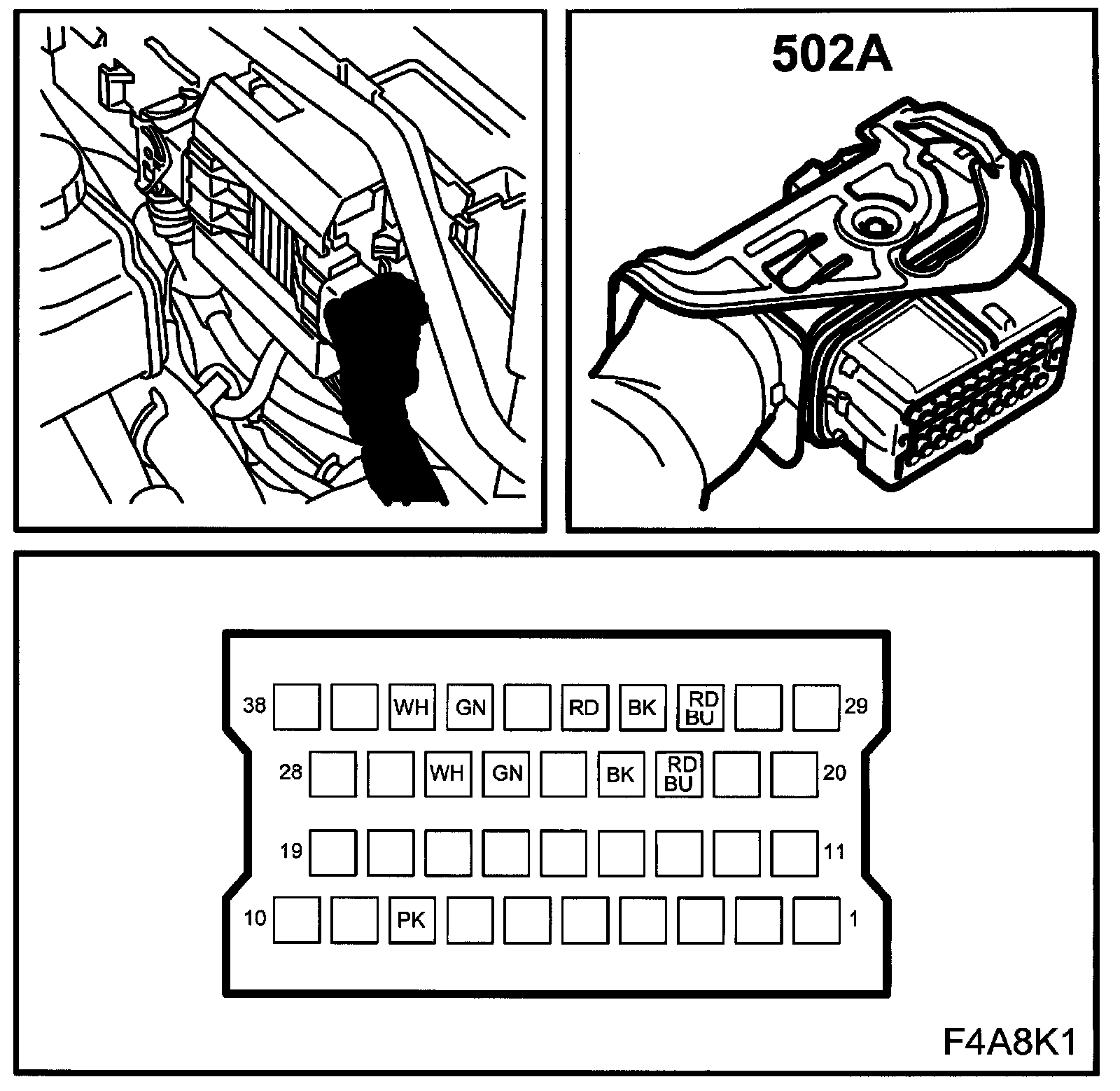

Location:
On bracket between battery and engine
K38A
Control Module TCM (502):
K38B
Control Module TCM (502):
