Home >> Saab >> 2004 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Horn >> Theft Alarm Sensor (690)

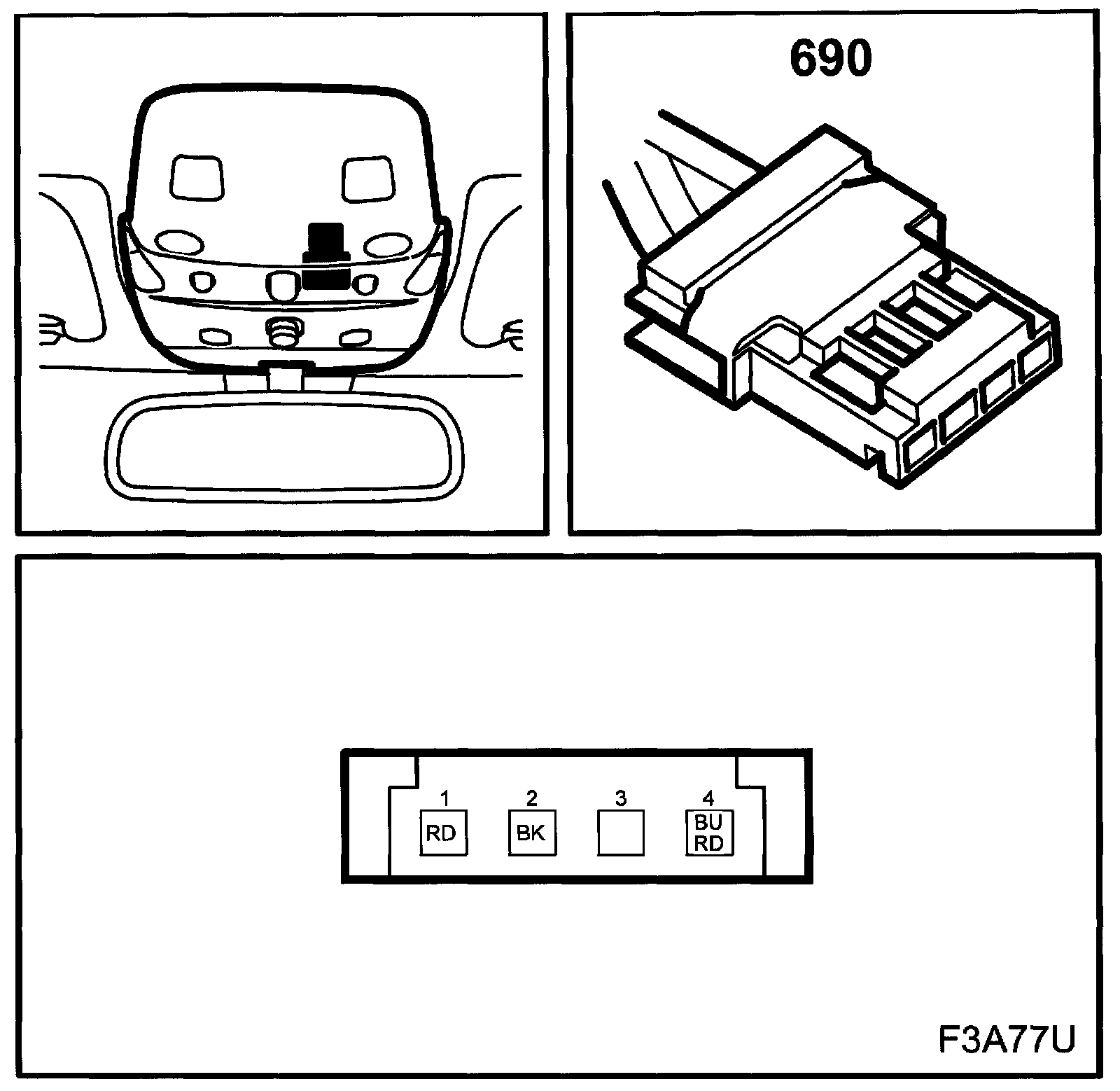

Theft Alarm Sensor (690)



Location: In front roof console

Theft Alarm Sensor (690):
