Seat Connectors In Numeric Order
>>

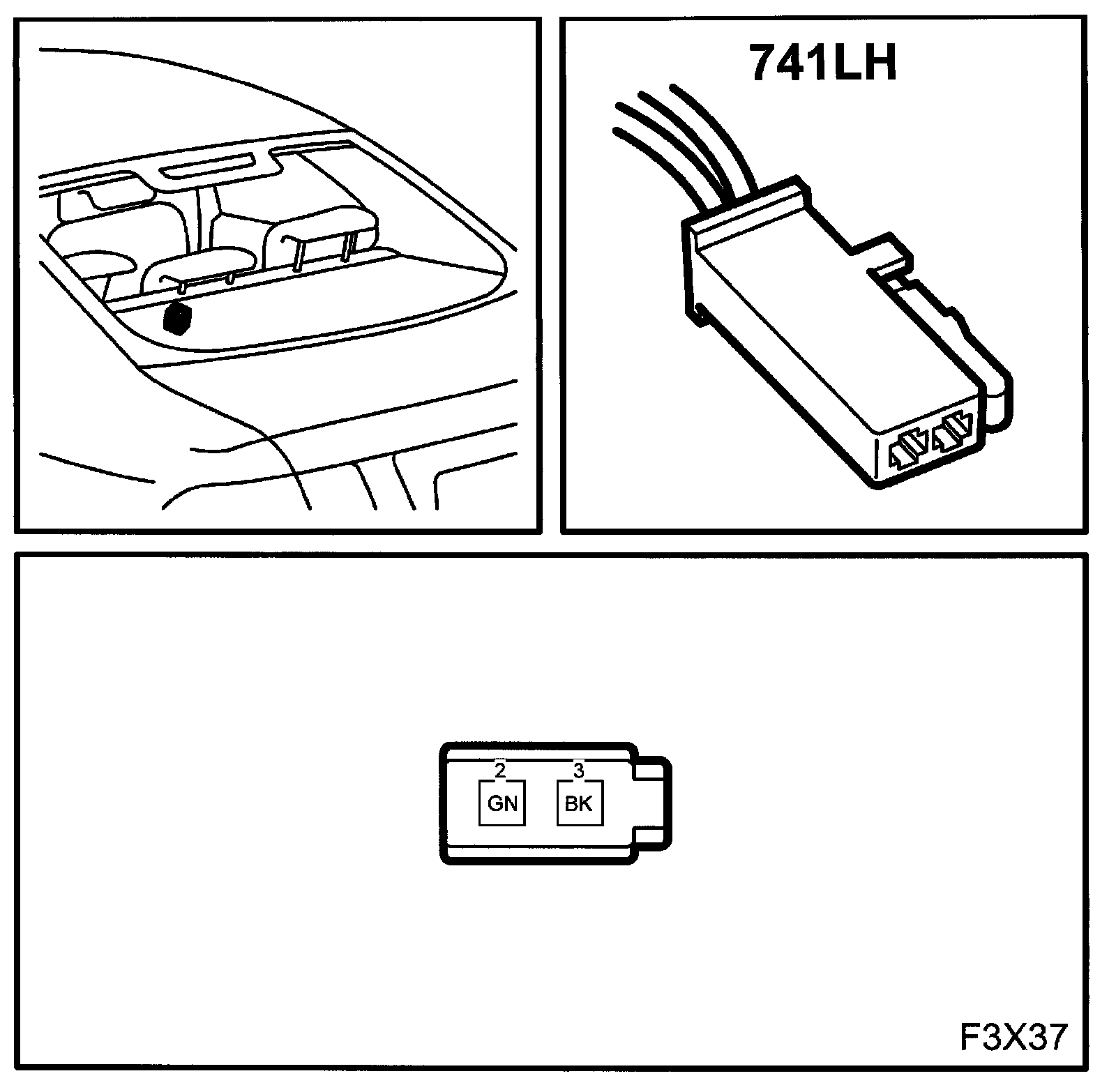

741LH
741LH
Location:
in the backrest lock
Microswitch, Backrest Locked In Upright Position, Rear Seat (741LH):
