Seat Connectors In Numeric Order
>>
357c
357c
Location:
in the seat under the
seat cushion

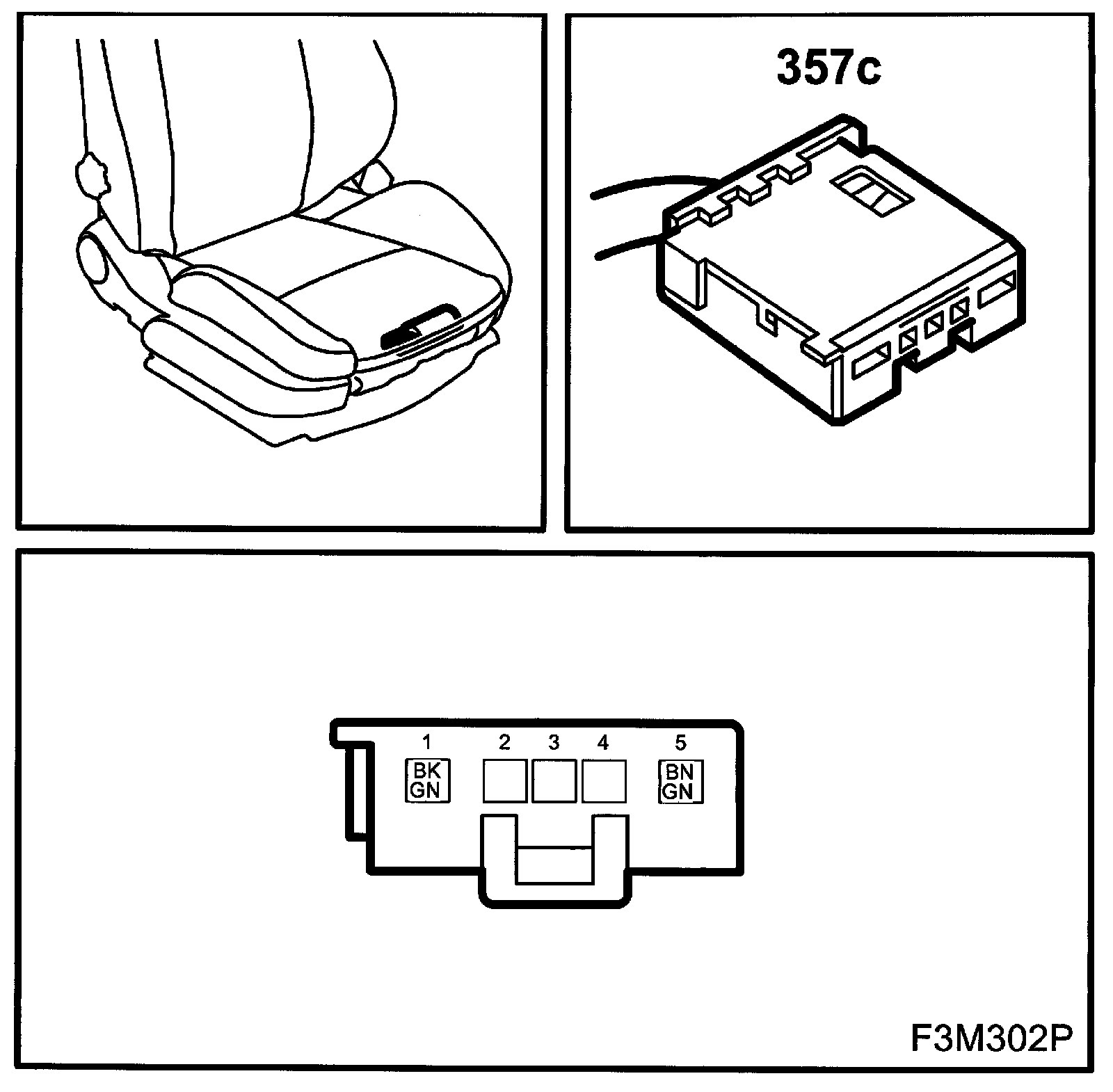

LH
Motor, Height Adjustment, Electrically Operated Seat (357c):

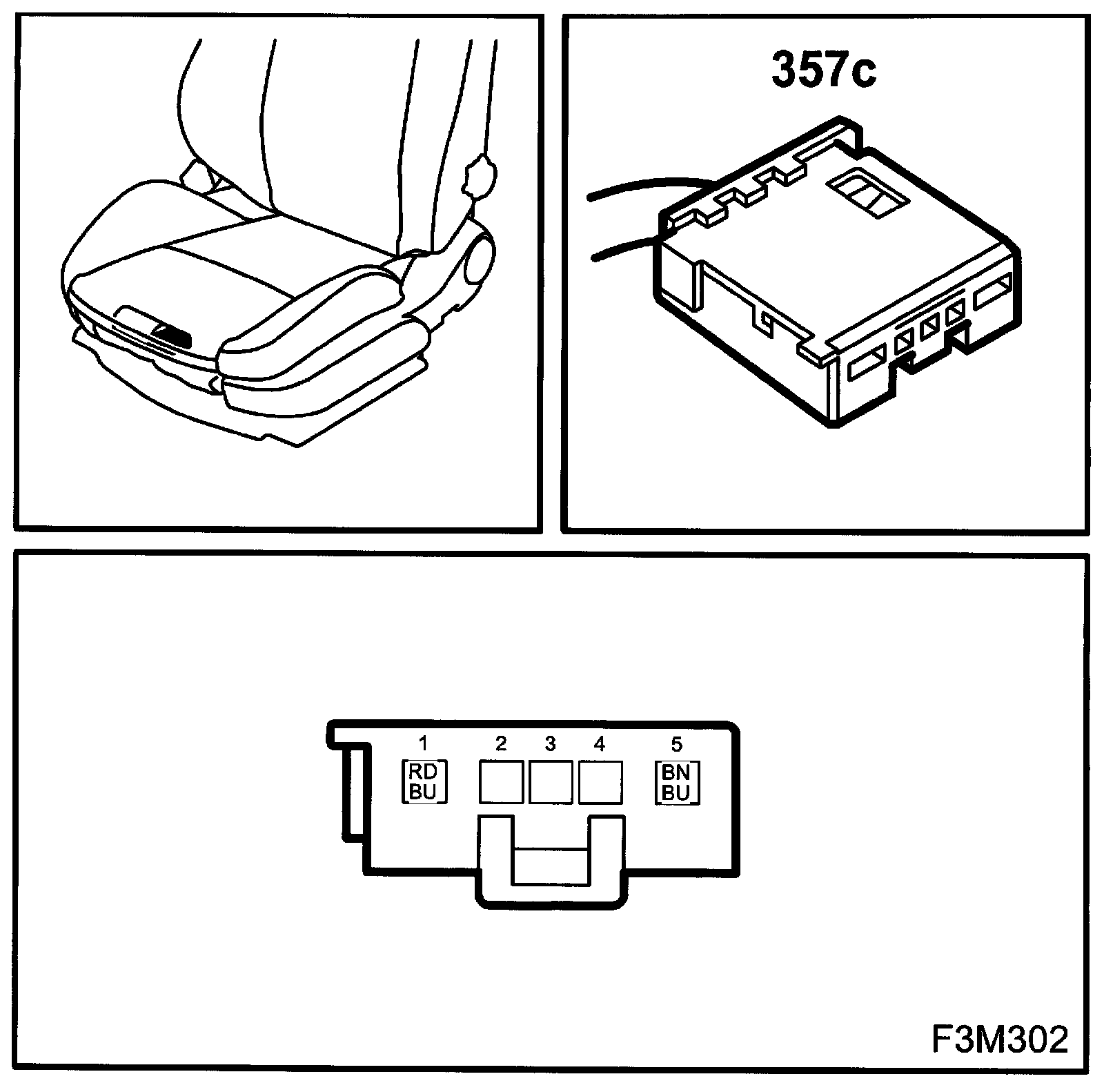

RH
Motor, Height Adjustment, Electrically Operated Seat (357c):
