9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Connector Views
>>
Seat Connectors In Numeric Order
>>
357
Seat Connectors In Numeric Order: 357
Location:
on the outside of the seat towards the door

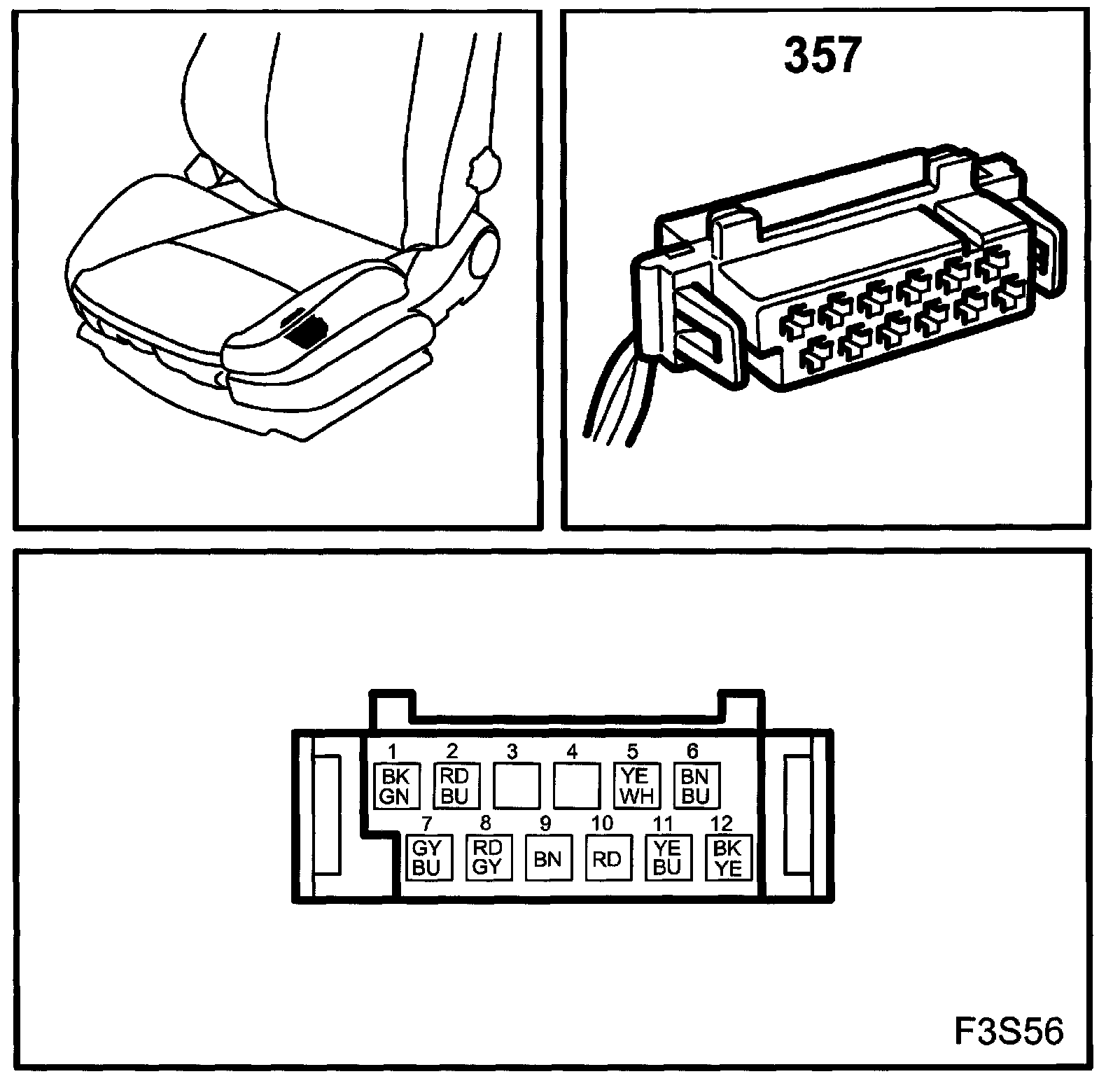

LH
Electrically Adjustable Seat Switch (357):

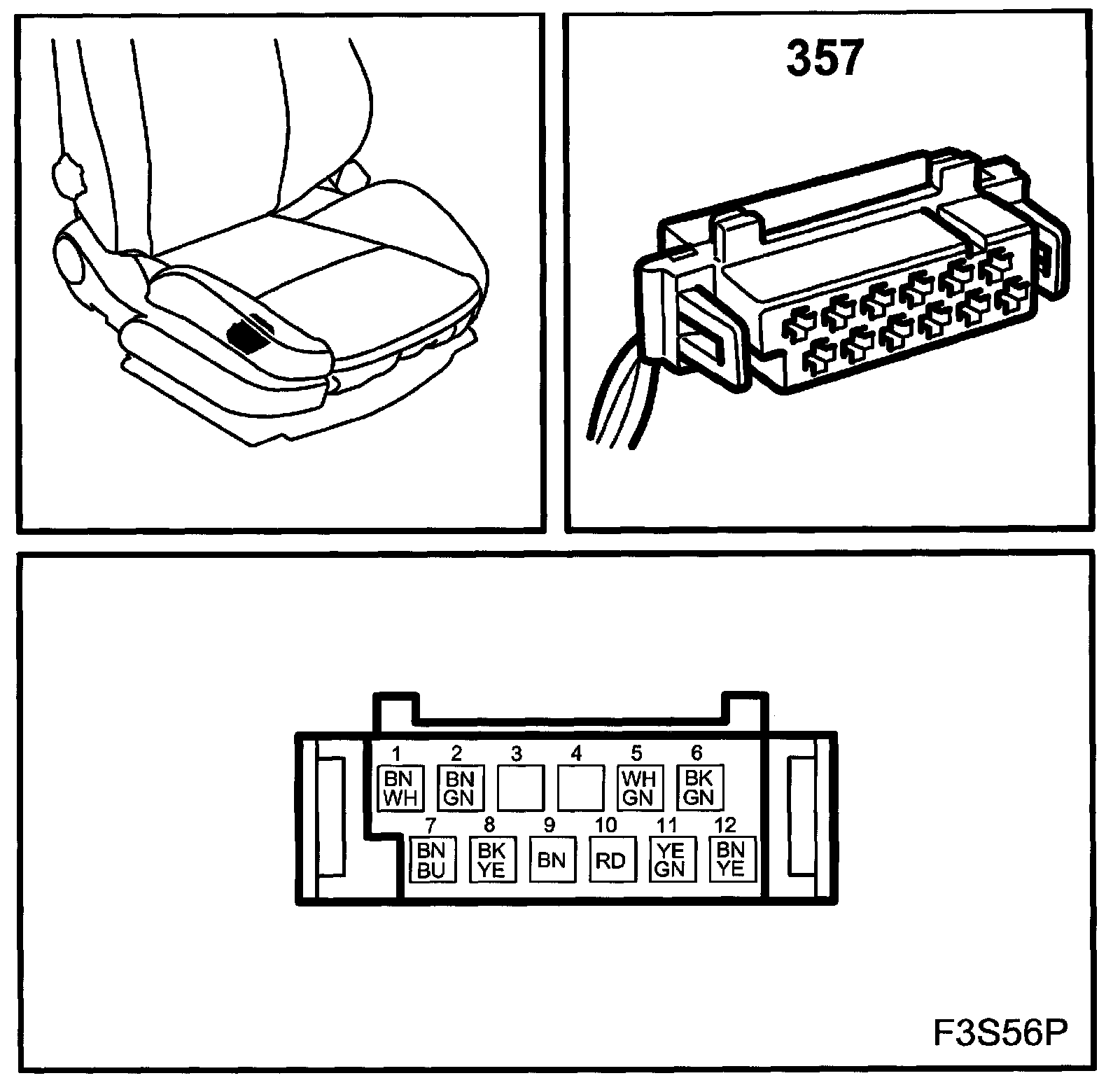

RH
Electrically Adjustable Seat Switch (357):
