A-Pillar Trim, CV

A-Pillar Trim, CV

To remove

1. Remove the windscreen frame upper trim.

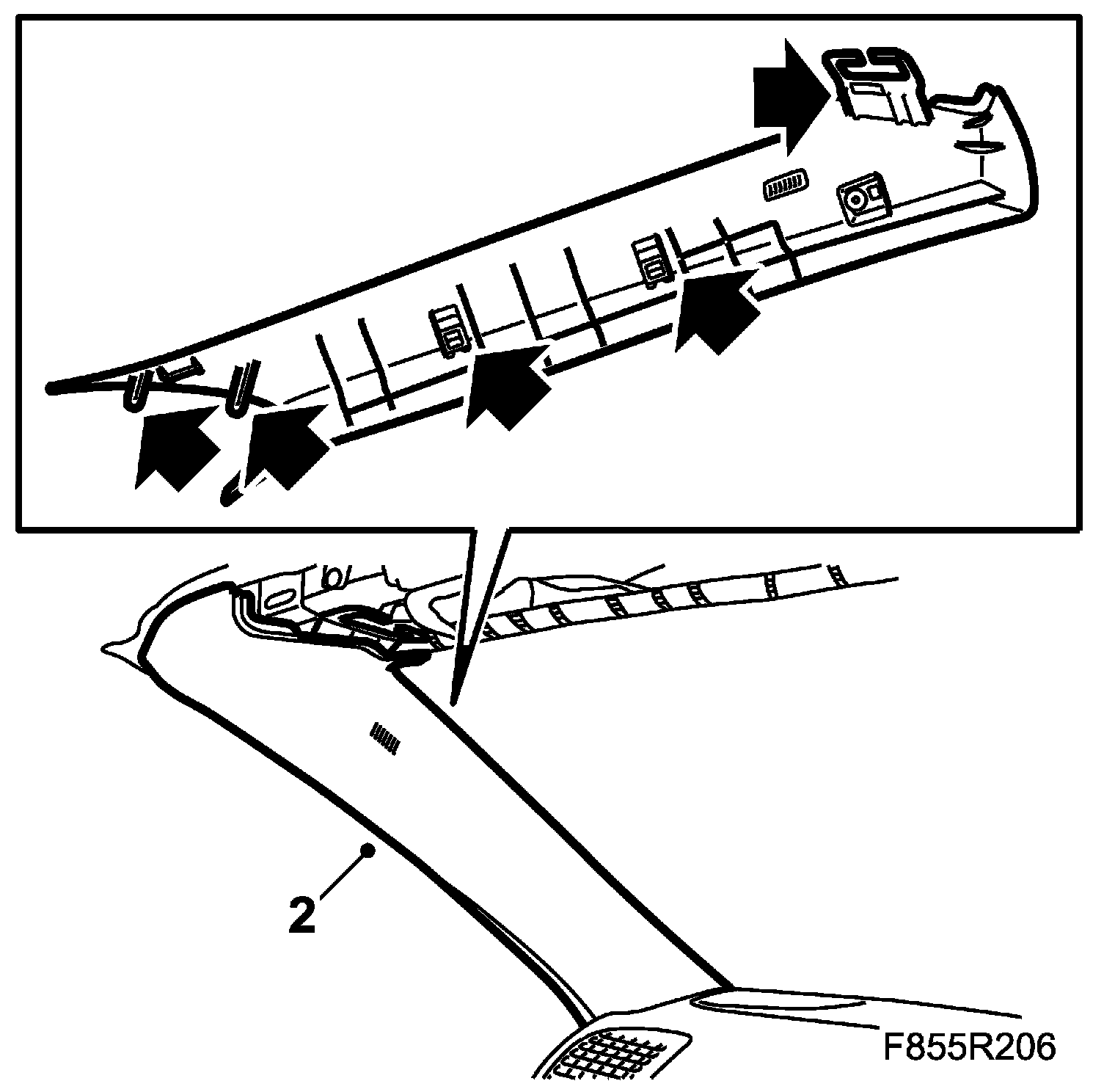

2. Carefully pull the A-pillar trim in the top and bottom edge.







3. Cars with microphone: Disconnect the connector from the microphone.

To fit

1. Cars with microphone: Connect the connector to the microphone.
Fit the lower section of the trim in the holes in the dashboard.

NOTE: Make sure that the fasteners are not damaged.







2. Make sure that the rubber moulding covers the trim.
3. Press the trim securely to the A-pillar.
4. Check that the rubber moulding is in place.
5. Fit the windscreen frame upper trim.
