Chassis Reinforcement, Front Subframe, Convertible

Chassis Reinforcement, Front Subframe, CV

To Remove
1. Raise the car.

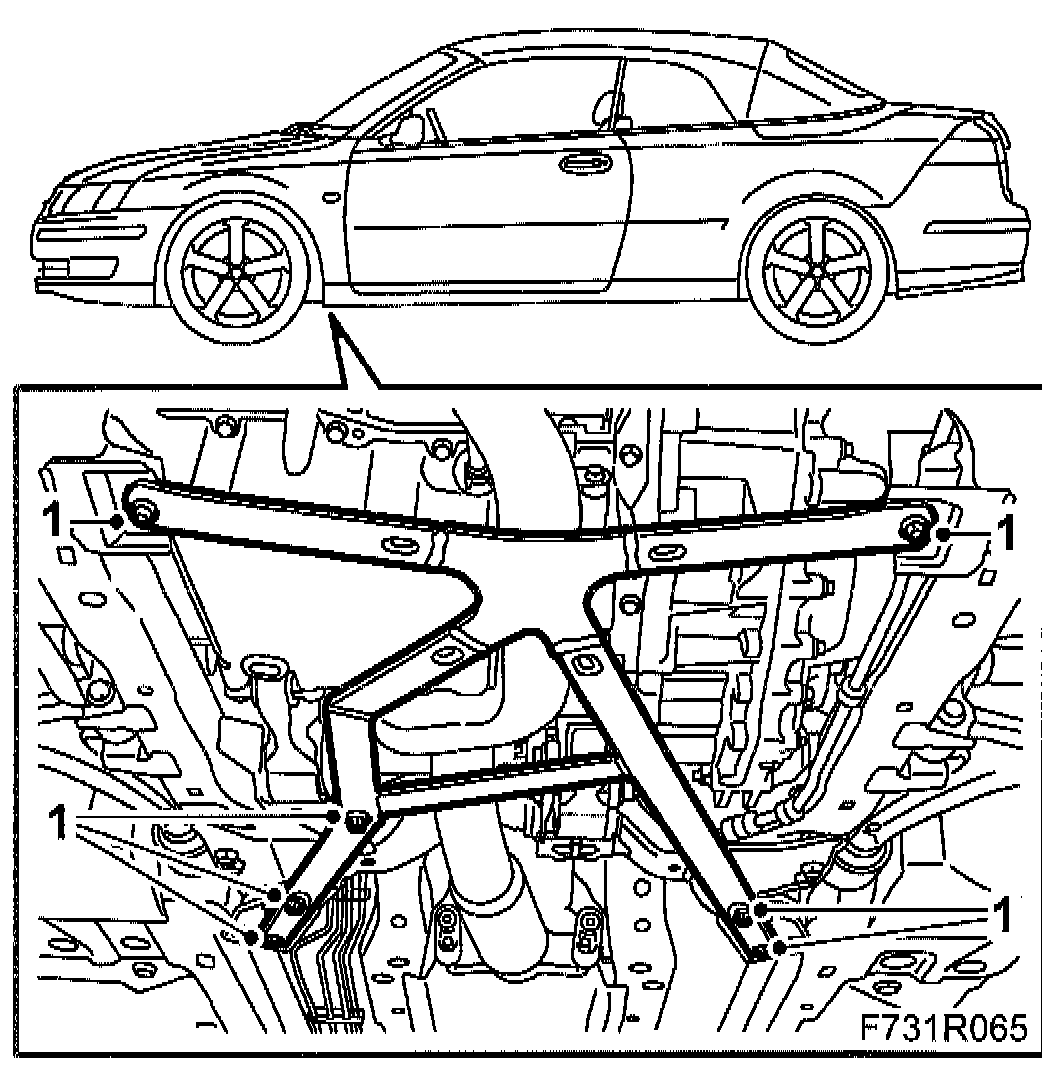

2. Remove the bolts holding the front chassis reinforcement and remove the reinforcement.

Note : On some cars the front left-hand bolt is shorter than the others.

To Fit






1. Position the chassis reinforcement and fit the bolts.

Note: Fit the shortest bolt on the reinforcement's front left-hand side.

Tightening torque 50 Nm (37 ft. lbs.).
2. Lower the car to the floor.
