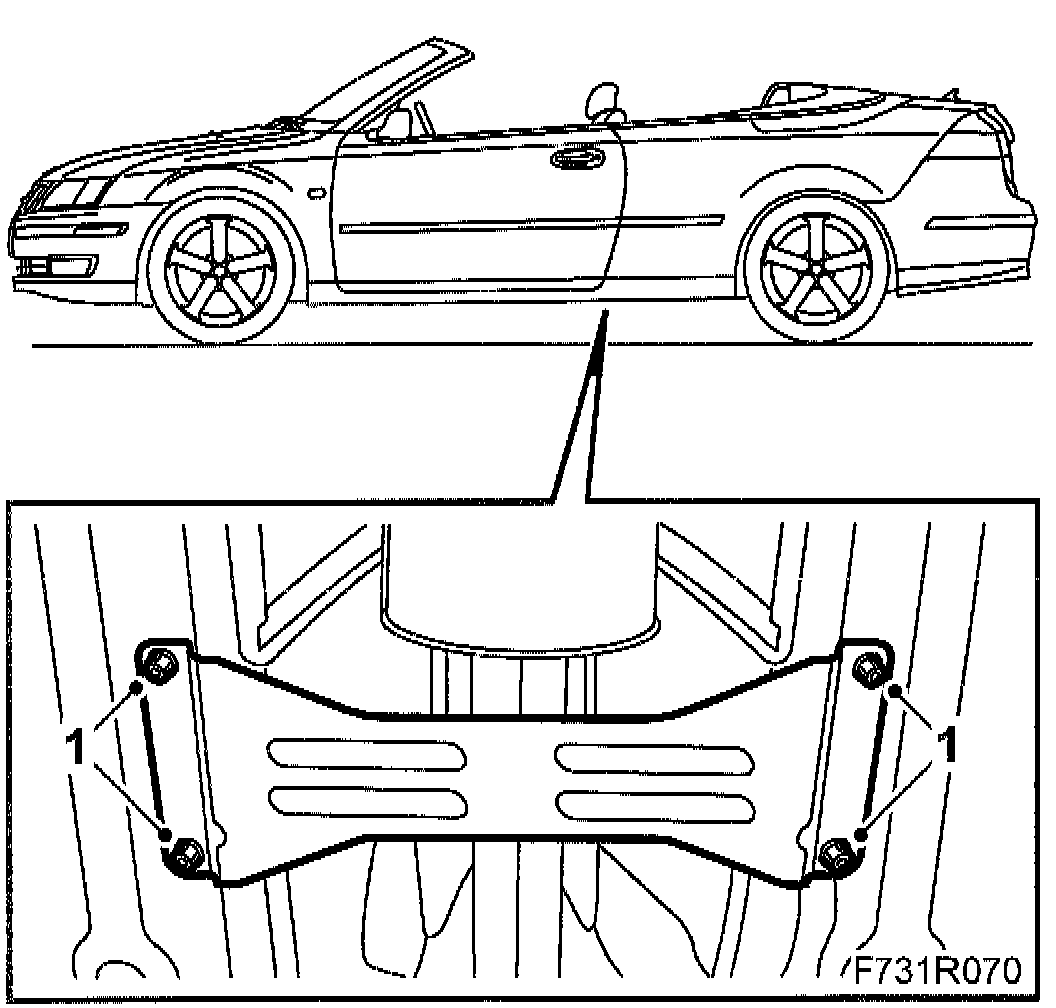

Chassis Reinforcement, Centre Tunnel, Convertible

Chassis Reinforcement, Centre Tunnel, CV

To Remove
1. Raise the car.
2. Remove the centre chassis reinforcement.

To Fit






1. Fit the centre chassis reinforcement.
Tightening torque 18 Nm (13 ft. lbs.).
2. Lower the car to the floor.
