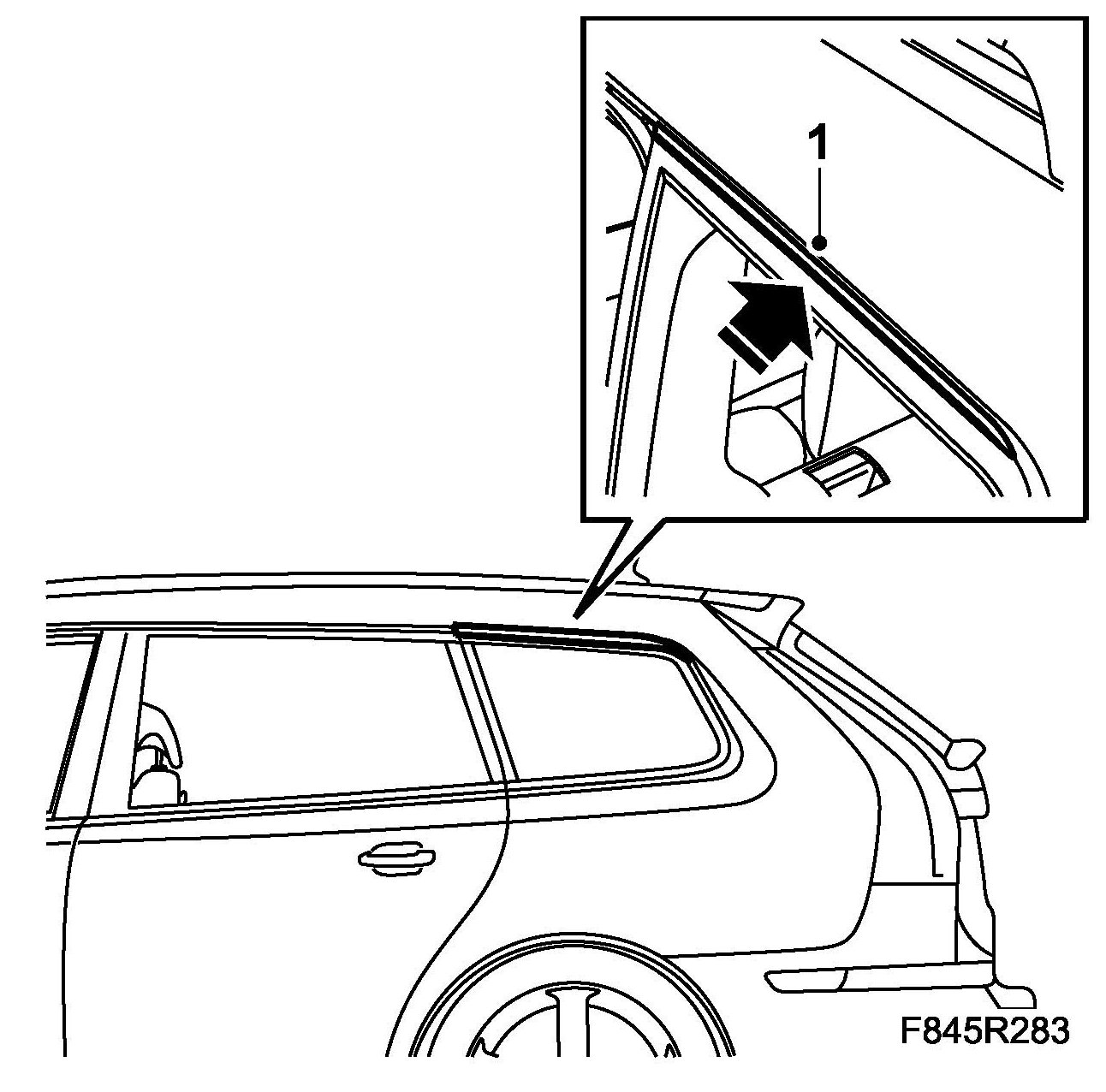

Moulding, Rear Side Window, 5D



Moulding, Rear Side Window, 5D

To remove
1. Remove Front moulding, door opening, 5D.
2. Remove the moulding using 82 93 474 Removal tool.







To fit
1. Refit the moulding.







2. Fit Front moulding, door opening, 5D.
