Hood Insulator / Pad: Service and Repair

Insulation, Bonnet

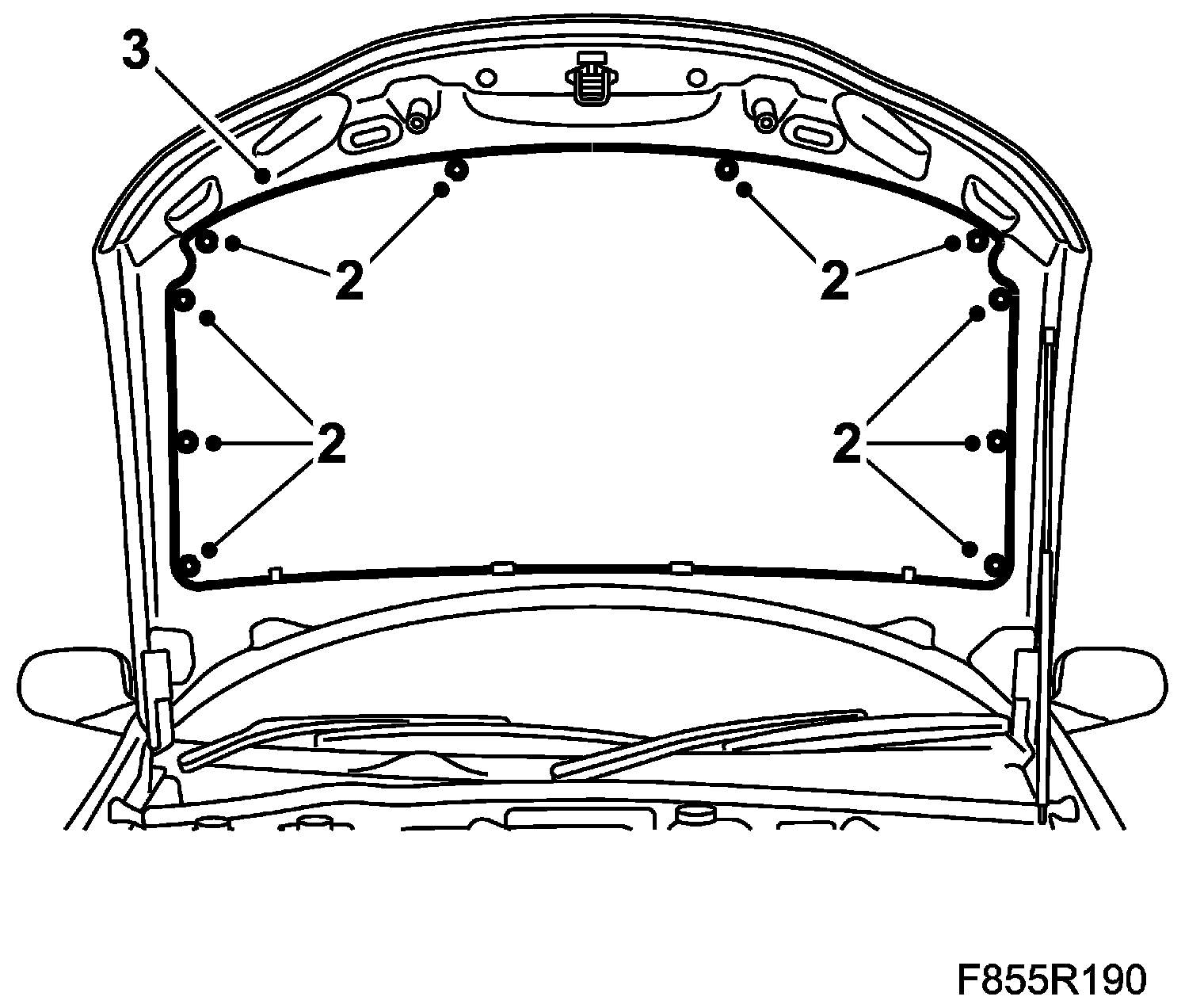

To remove

1. Open the bonnet.





2. Clips with screw: Remove the bonnet insulation clips by unscrewing the centre screw. Pull the clips directly outward.

Clips with hole: Insert 84 71 179 Removal tool, clips under the clip. Insert a 1.5 mm alien key with ball into the hole and release the clip. Pull out the clip.

3. Release the insulation from the hooks on the back edge of the bonnet.

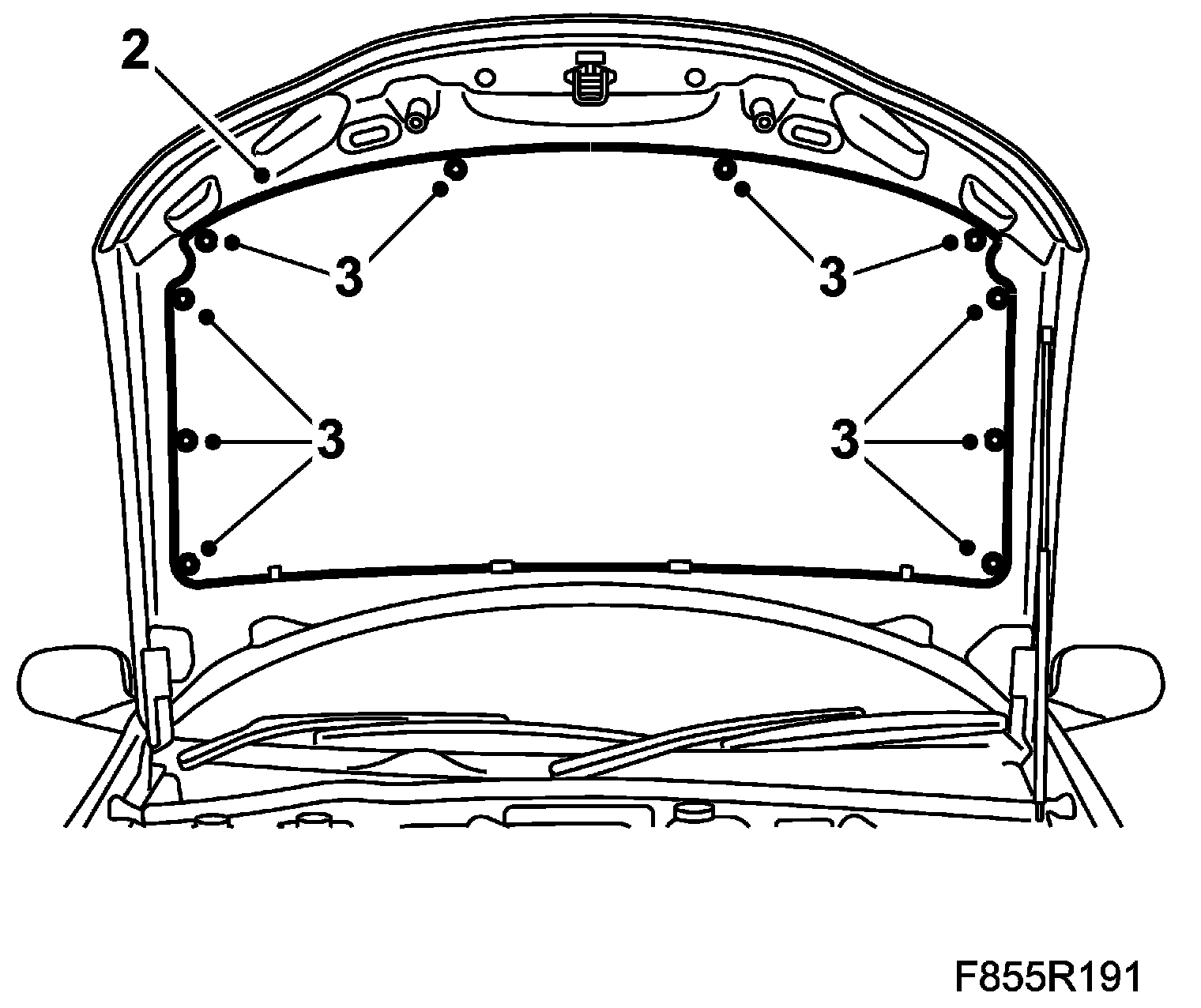

To fit

1. Fit the insulation onto the hooks on the back edge of the bonnet.





2. Centre the insulation so that the clip holes align.
3. Clips with screw: Fit the clips and press in the centre screws.

Clips with hole: Fit the clips.

4. Close the bonnet.
