Speaker, Woofer, Rear (266)

Speaker, Woofer, Rear (266)

To remove
1. Remove the Parcel shelf trim.
2. Remove the C-pillar trim.

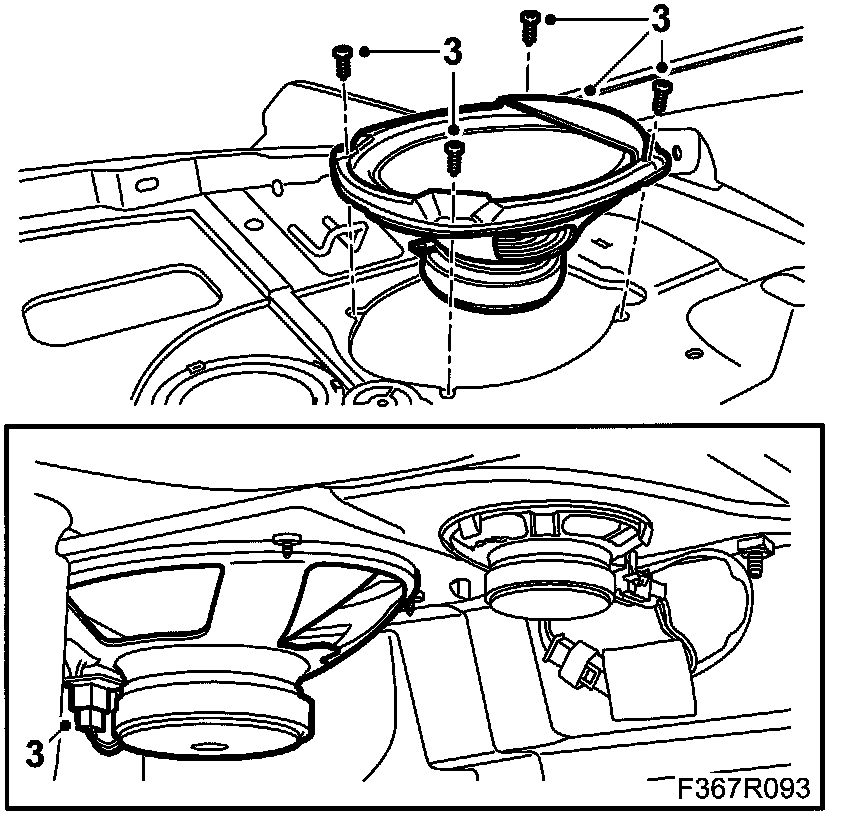

3. Remove the 4 screws for the speaker. Lift up and unplug the connector.







To fit
1. Plug in the speaker's connector.







2. Position the speaker.Fit the speakers screws.

IMPORTANT: Make sure no cables or connectors are pinched.

3. Fit the C-pillar trim.
4. Fit the Parcel shelf trim
