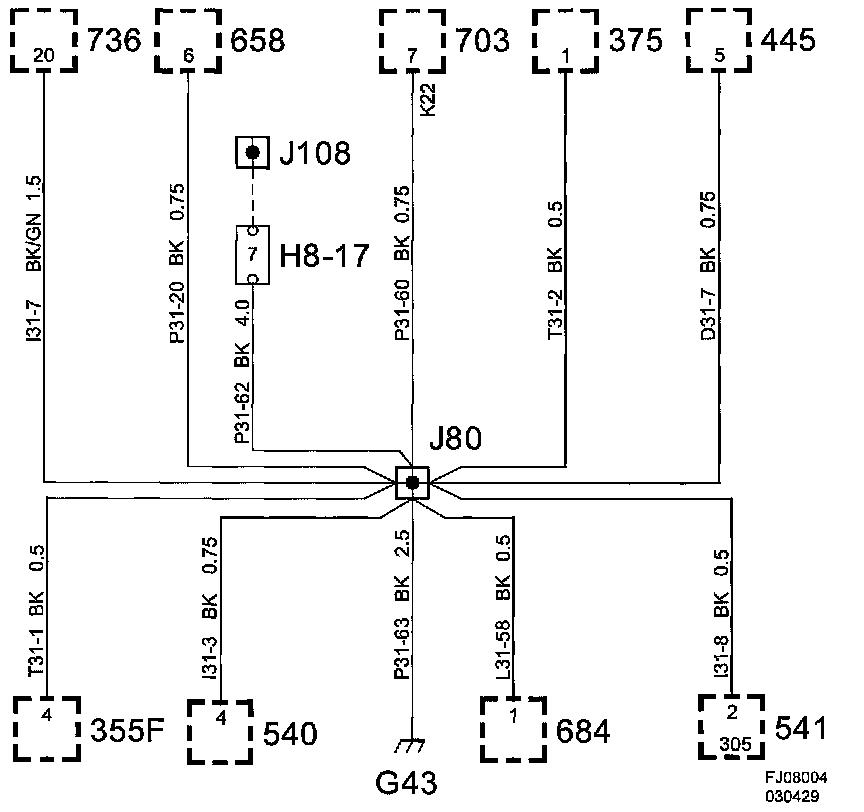

Crimp J80, Instrument Harness



Crimp J80, Instrument Harness

Location:
LHD: Approx. 80 mm from branching point grounding point G43 towards grounding point G41

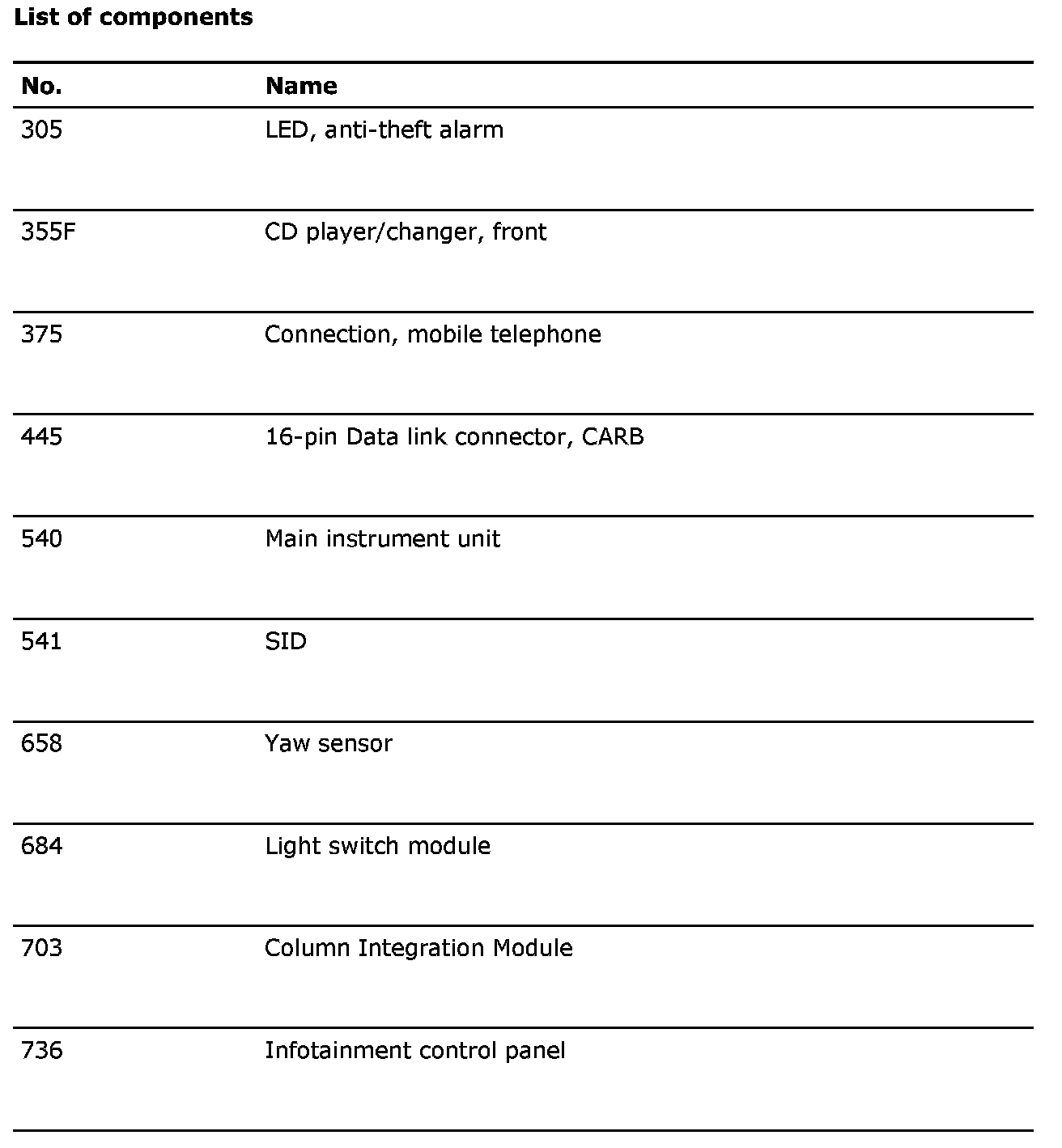

List Of Components:
