Sedan

Antenna, GPS/Mobile Telephone (467/627), 4D

To remove

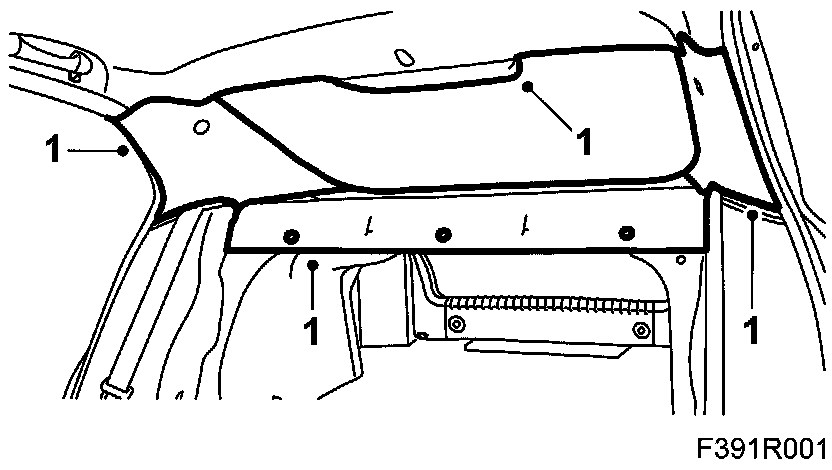

1. Remove the inner roof lining.

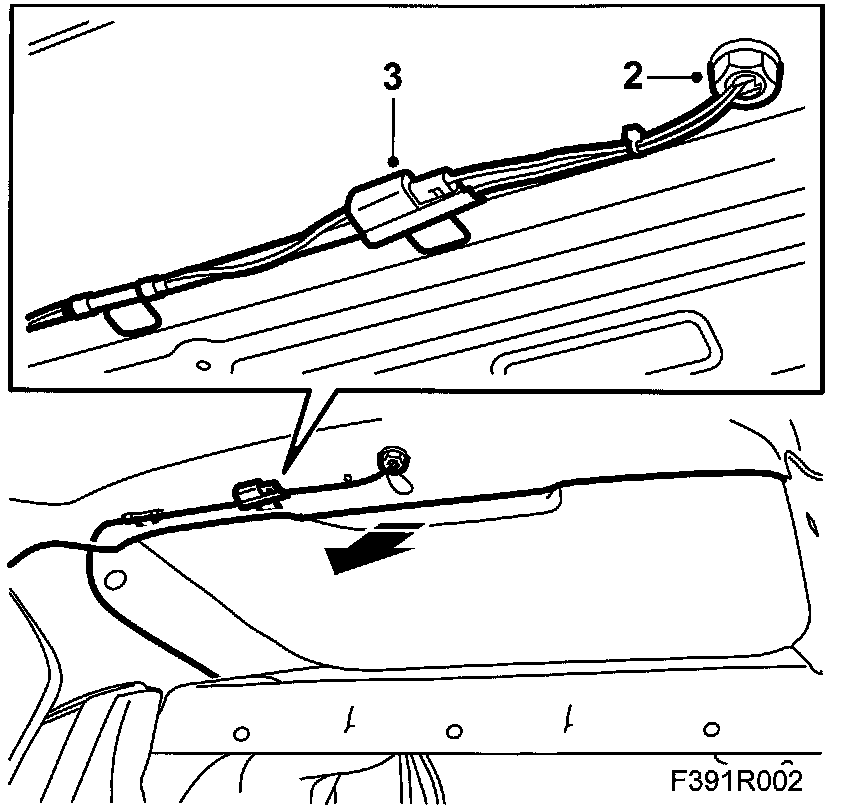

2. Remove the nut securing the antenna.







3. Unplug the connector with the help of a small screwdriver.

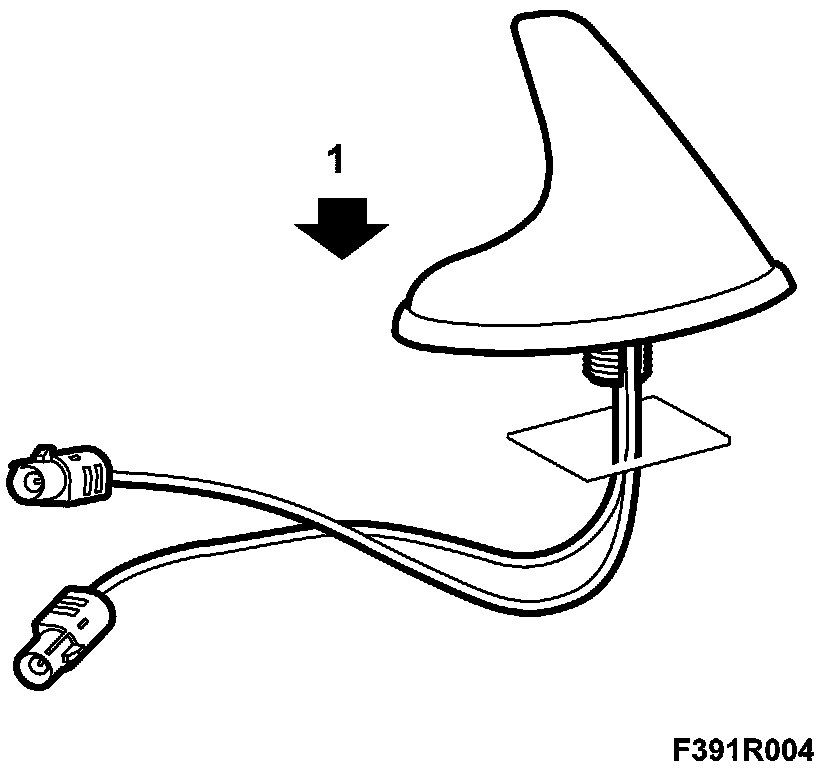

4. Remove the antenna by carefully coaxing it up.







To fit

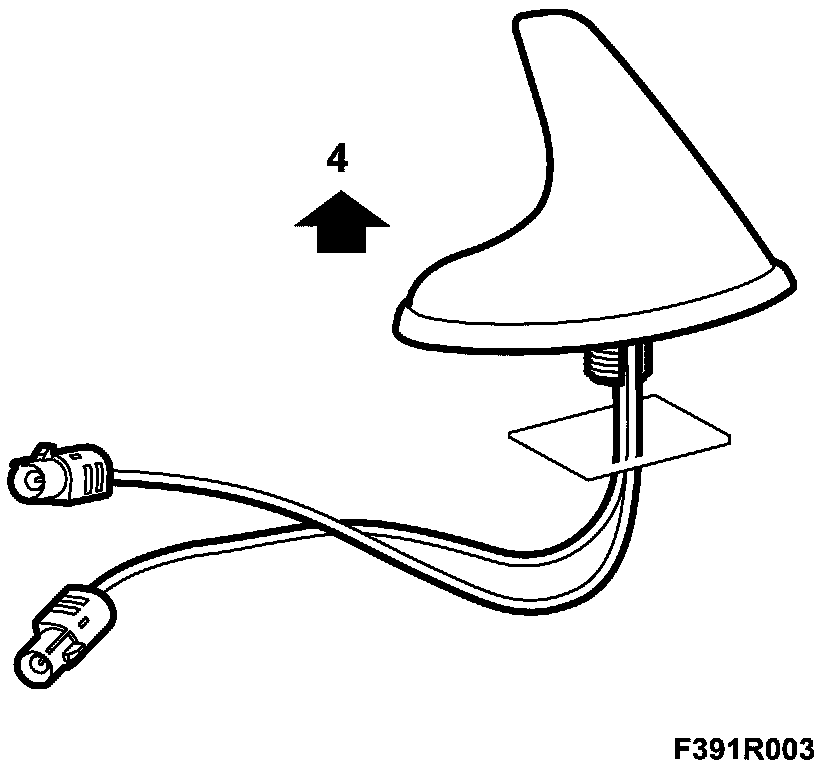

1. Fit the antenna.

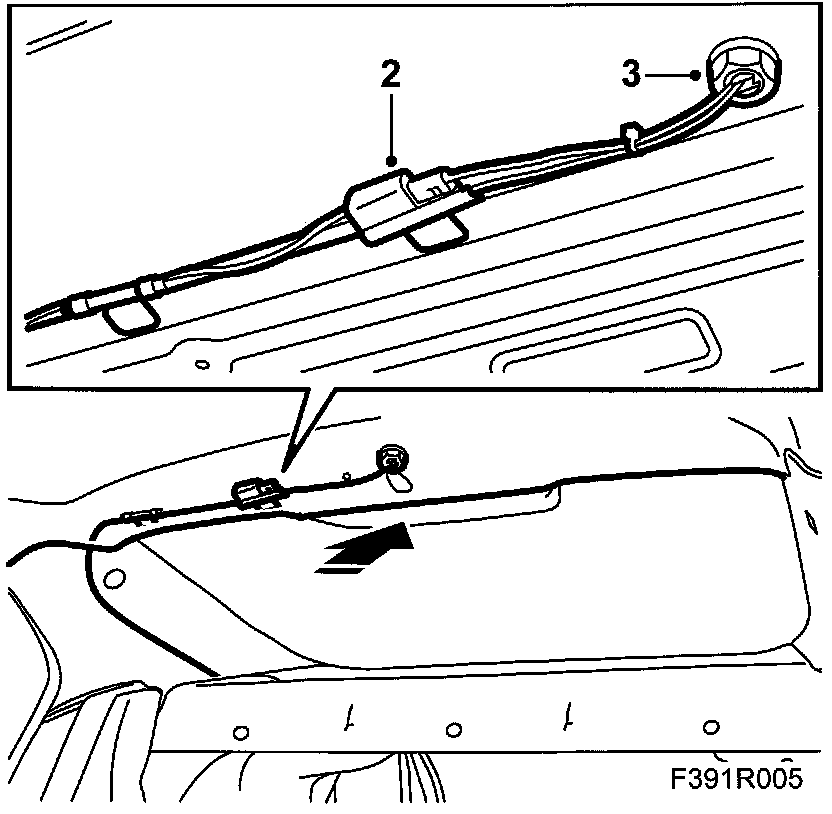

2. Plug in the connector.







3. Fit the nut securing the antenna.

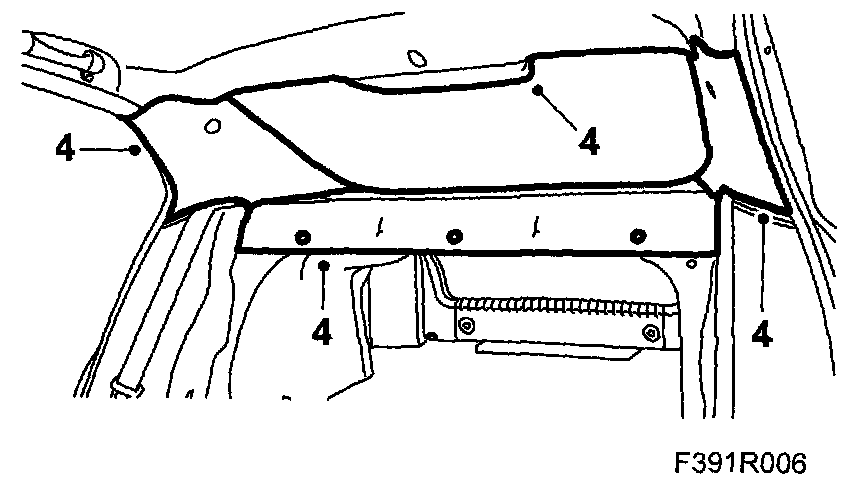

4. Fit the inner roof lining.
