Home >> Saab >> 2004 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Global Positioning System >> Locations >> Splice Locations >> Crimp Connection J99, Main Wiring Harness >> Sedan

Sedan

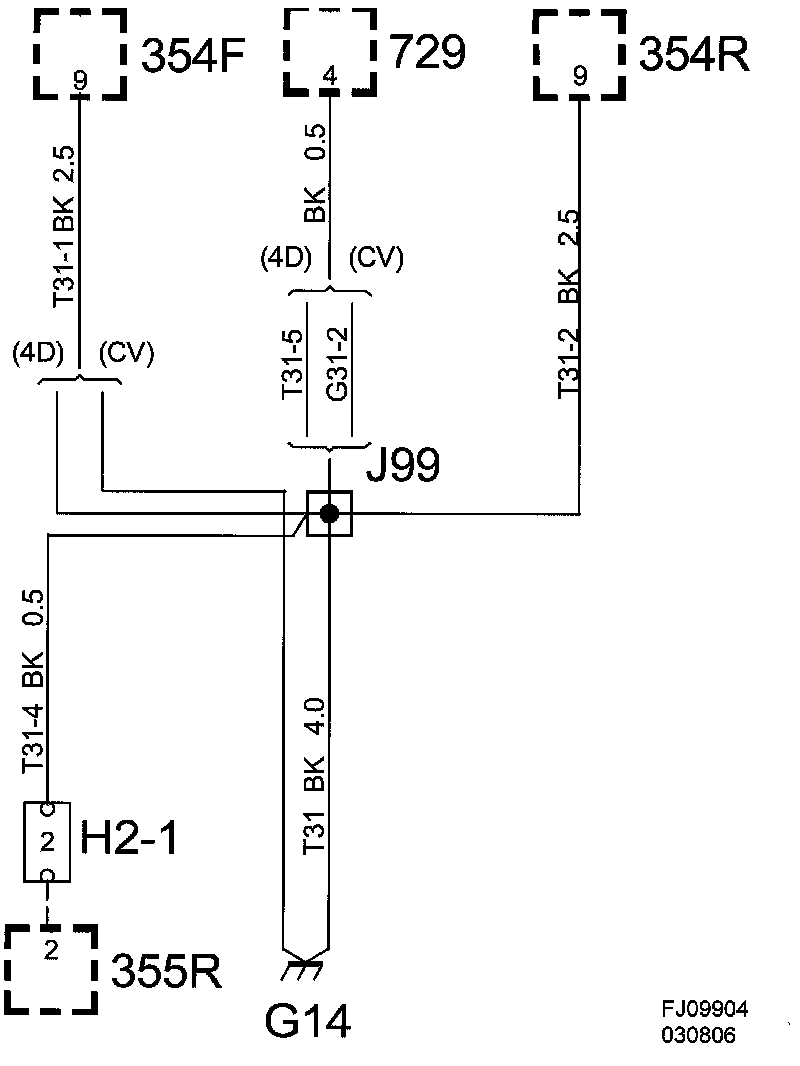

Crimp J99, Main Wiring Harness

Location:

4D: Approx. 480 mm from the branching point grounding point G33P/S towards the left-hand rear door

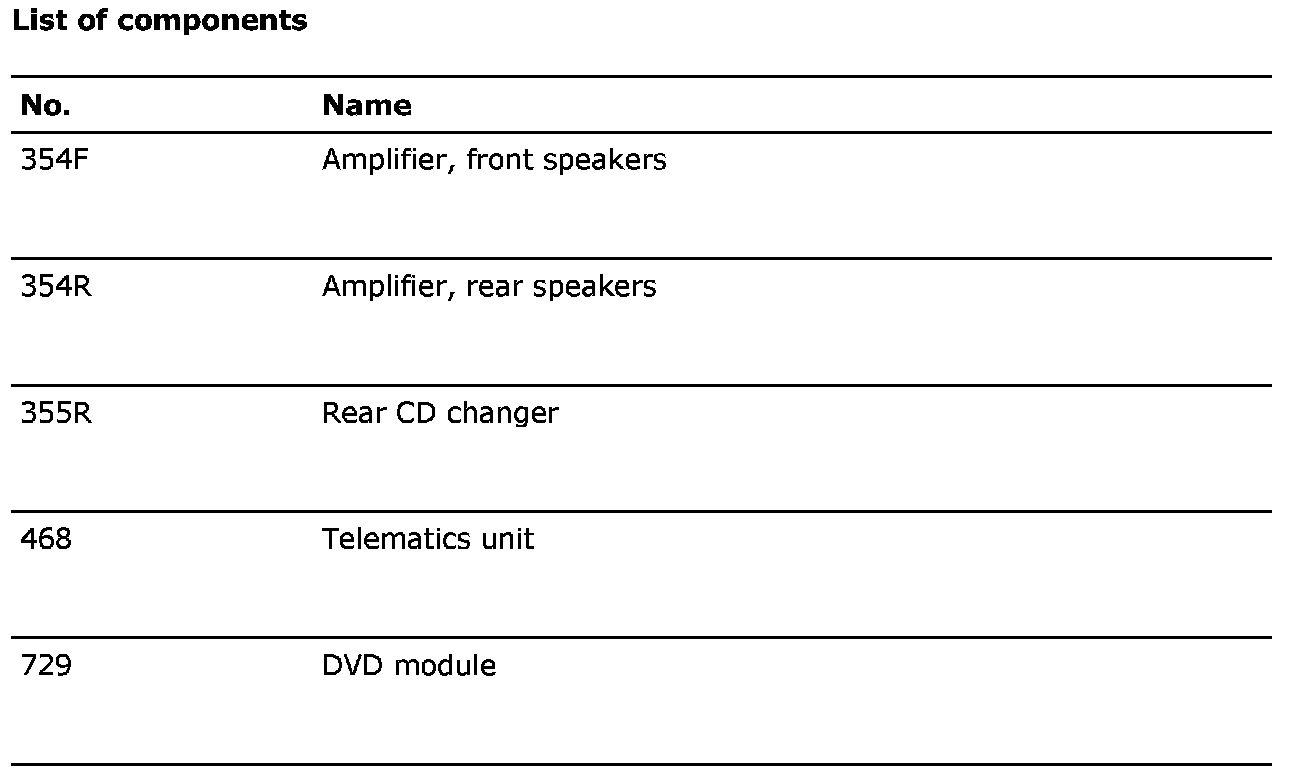

List Of Components:
