Grounding Point G43



Grounding Point G43

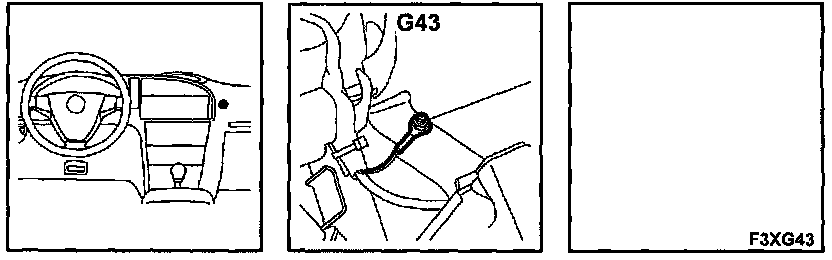

Location: On right-hand side of knee member

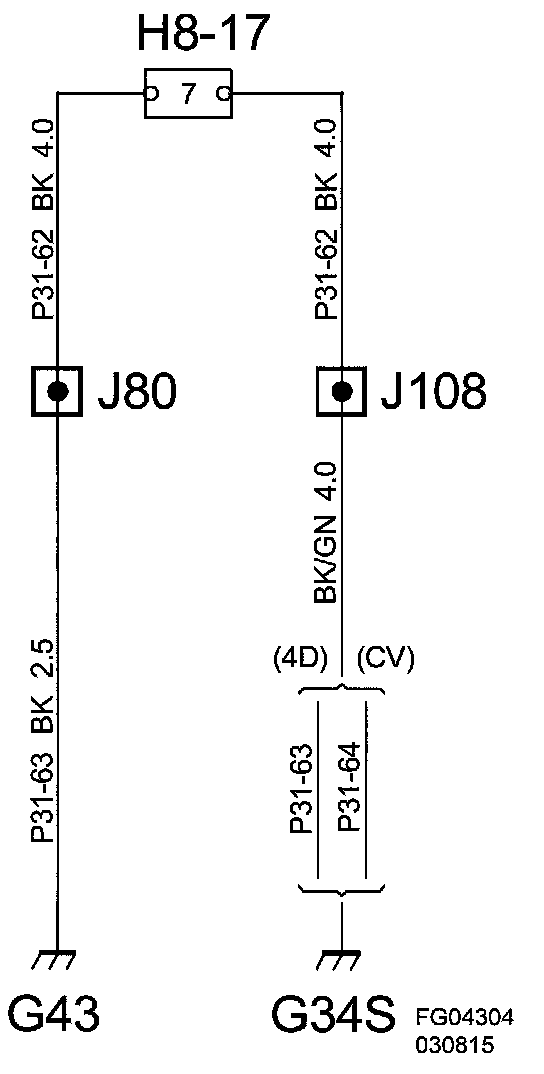

The grounding point is connected with grounding point G34S via crimps J80 and J108.

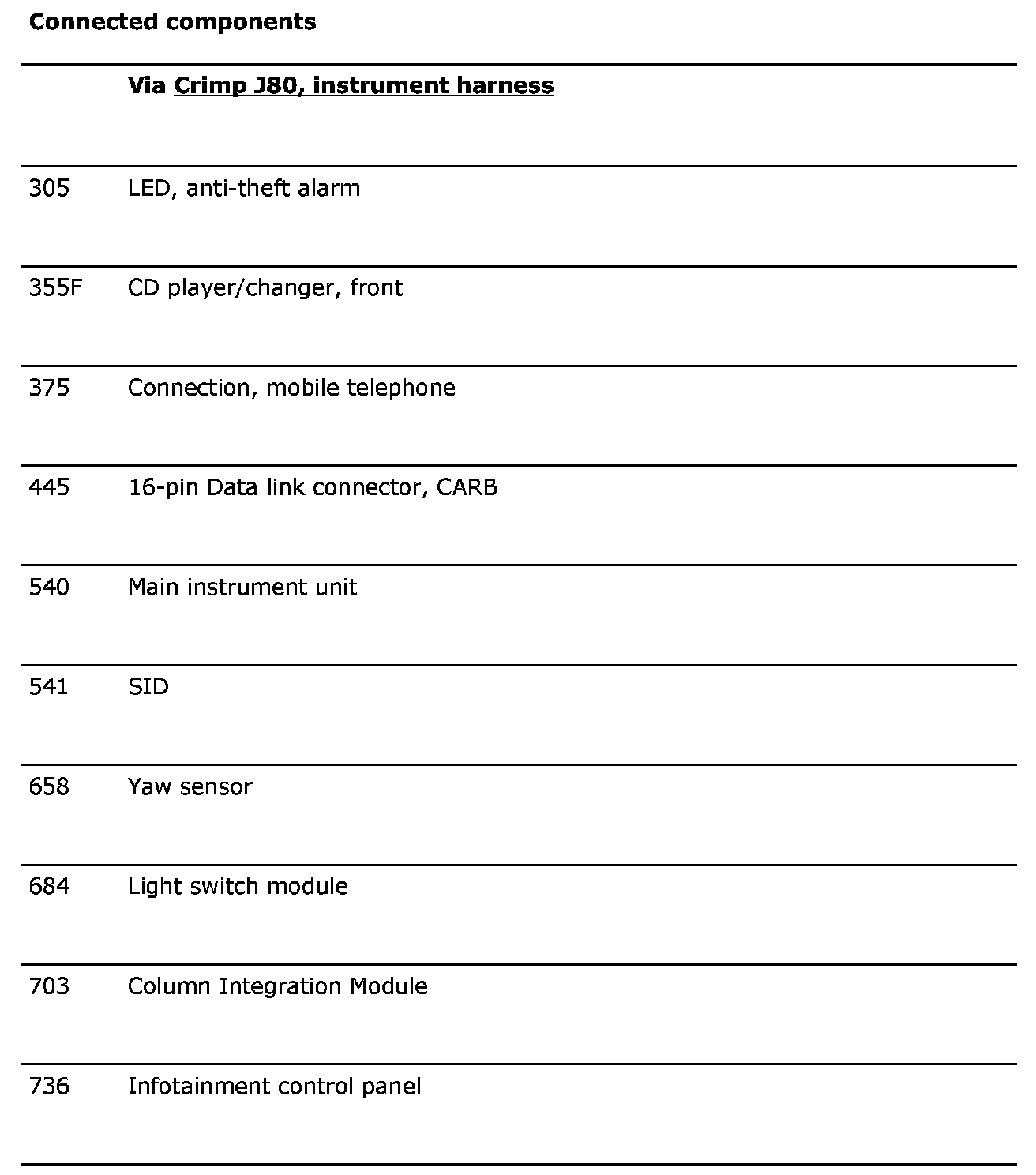

Connected Components:









Crimp J80
