SID Control Panel (SIDC)

SID Control Panel (SIDC)

To remove

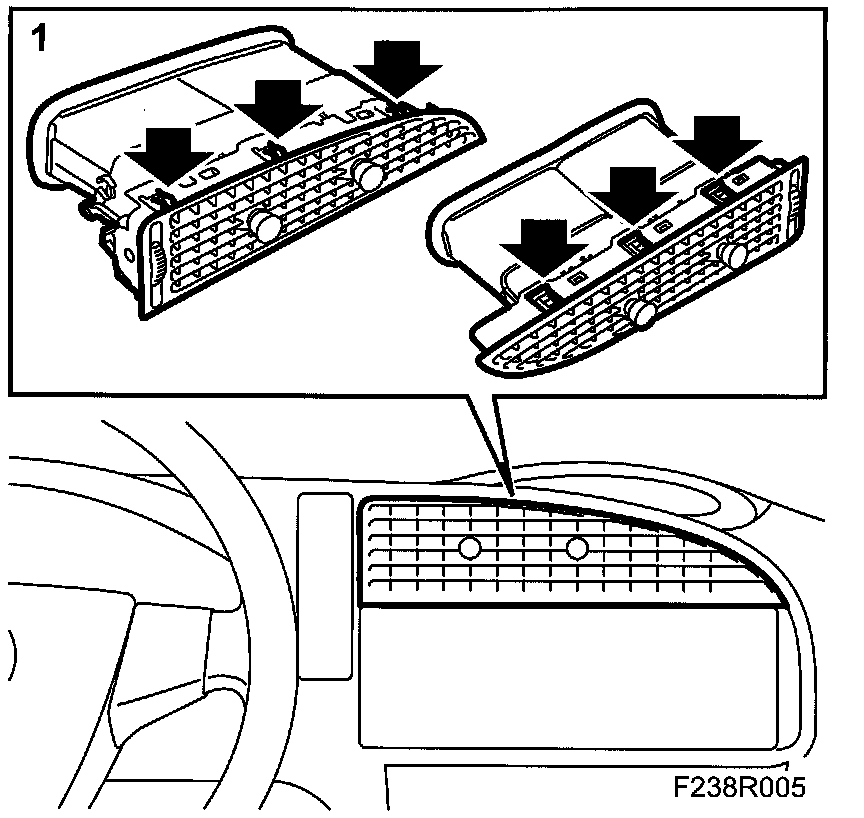

1. Remove the centre air vent from the instrument panel by carefully bending the hooks that are accessible through the grille.







NOTE: It is essential the correct hooks are bent as the hooks holding together the air vent are also visible through the grille.

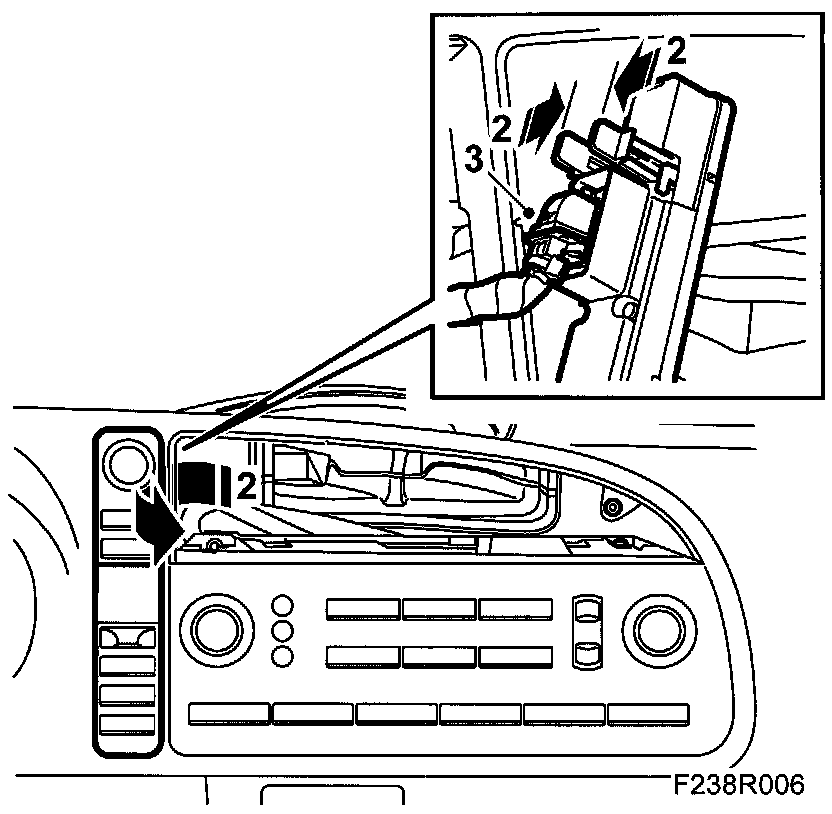

2. Remove SIDC by pressing together the two tabs on the back and then pressing out the control panel from behind, starting at the top.







3. Unplug the connector.

To fit

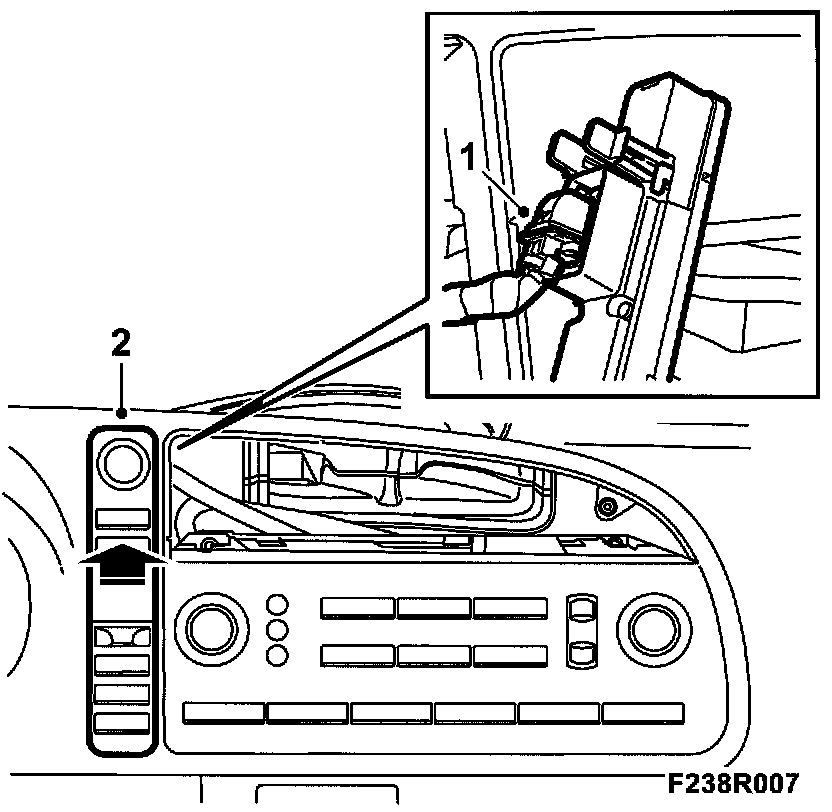

1. Plug in the connector.







2. Fit SIDC by positioning the hook in the bottom and then pressing in the top.

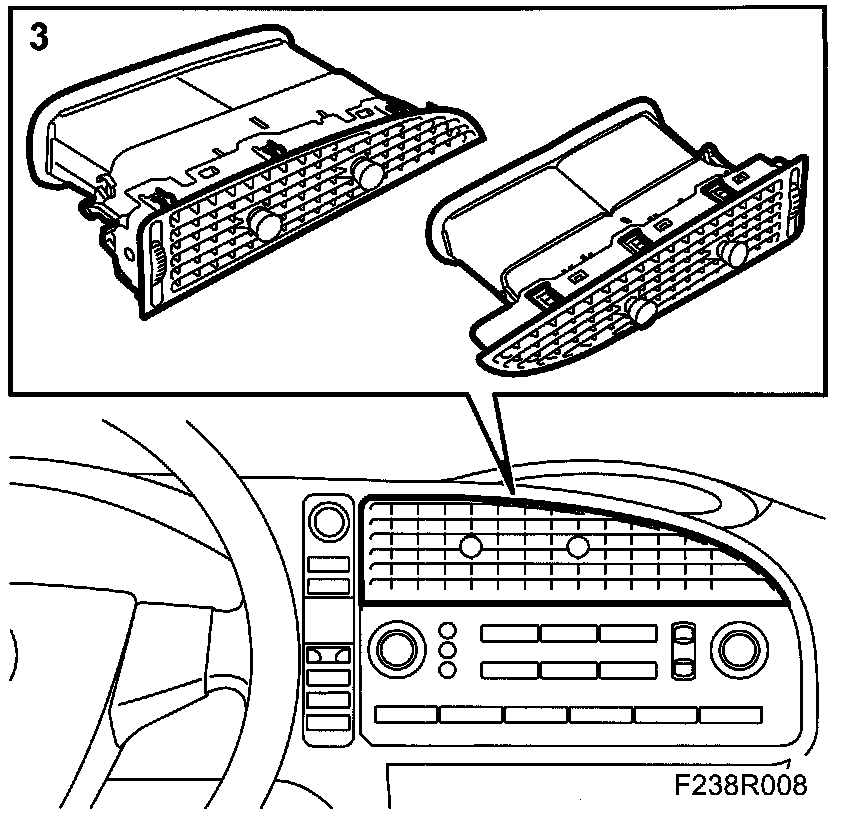

3. Position and fit the air vent.
