9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Collision Avoidance and Parking Assist Systems
>>
Locations
>>
Splice Locations
>>

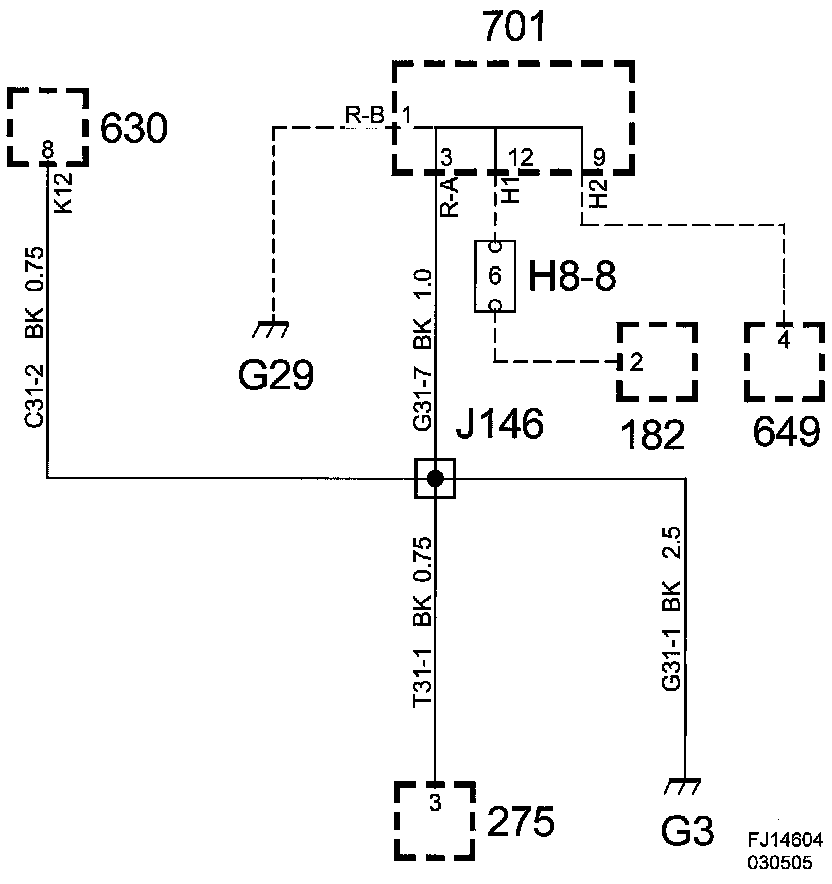

Crimp J146, Rear Harness, Sedan
Crimp J146, Rear Harness, Sedan
Crimp J146, Rear Harness, 4D
Location:
Approx. 380 mm
from the REC

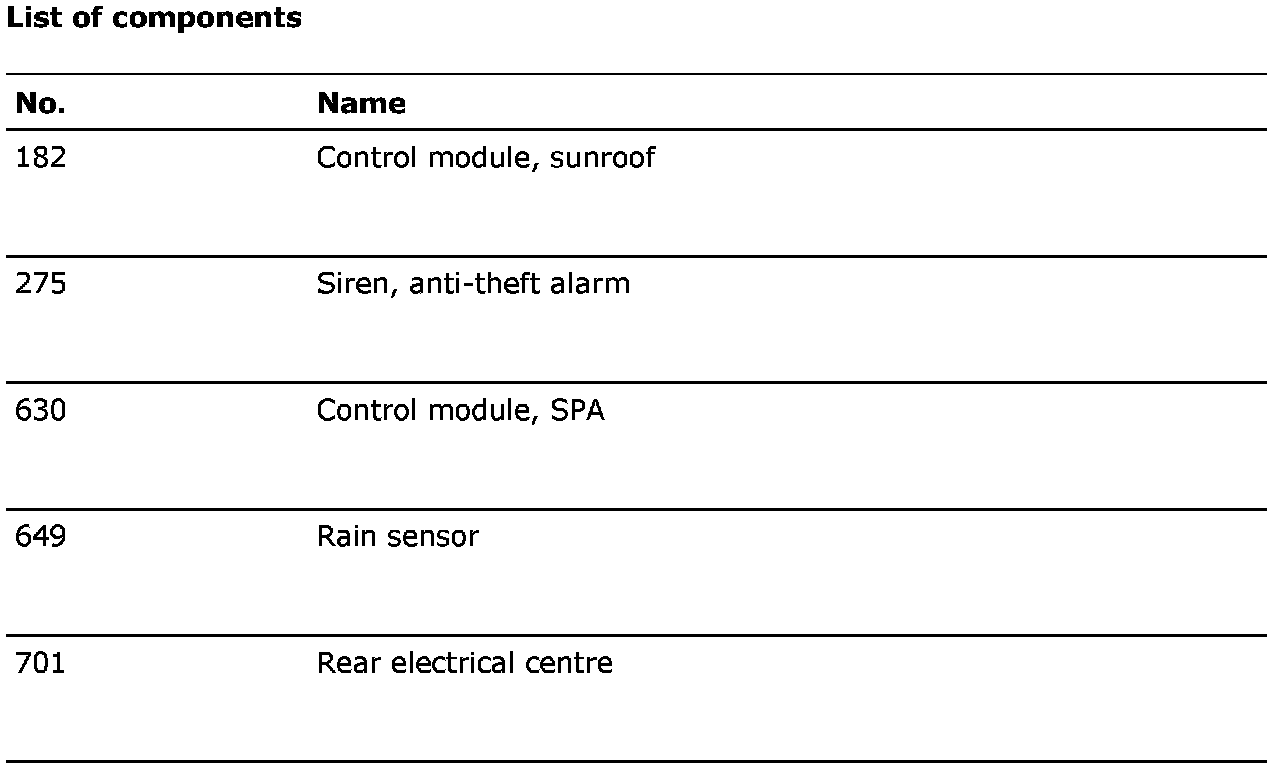

List Of Components:
