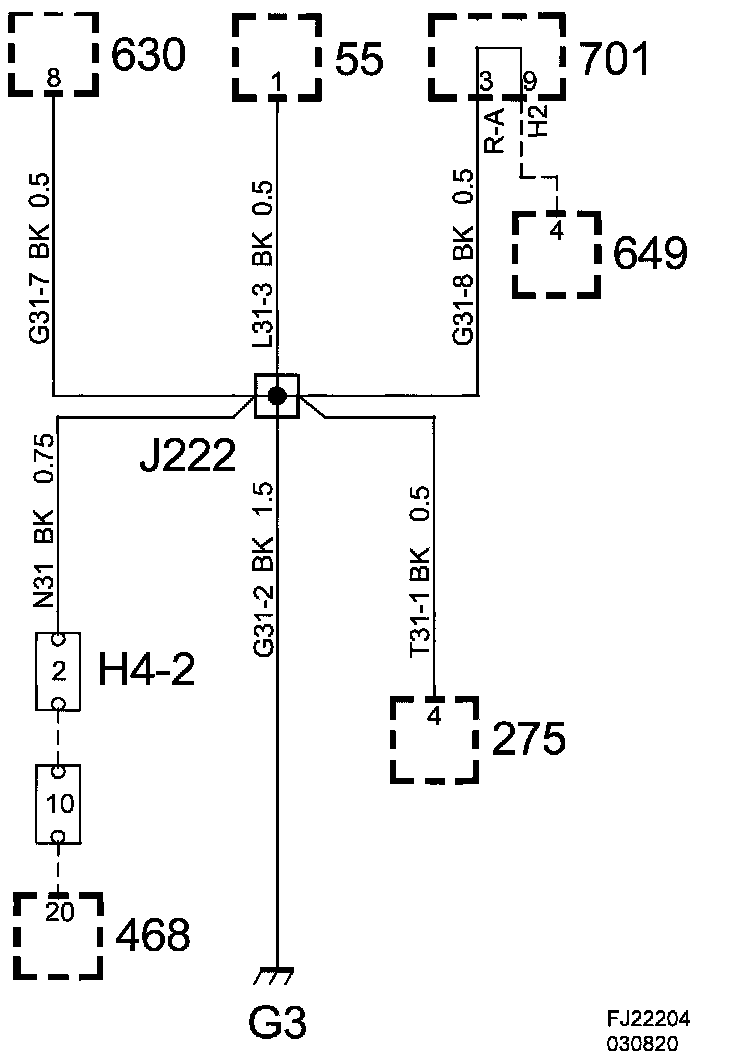

Crimp Connection J222, Rear Harness Convertible



Crimp Connection J222, Rear Harness CV

Location: Approx. 120 mm from branching of light cluster on left rear wing towards the luggage compartment lighting

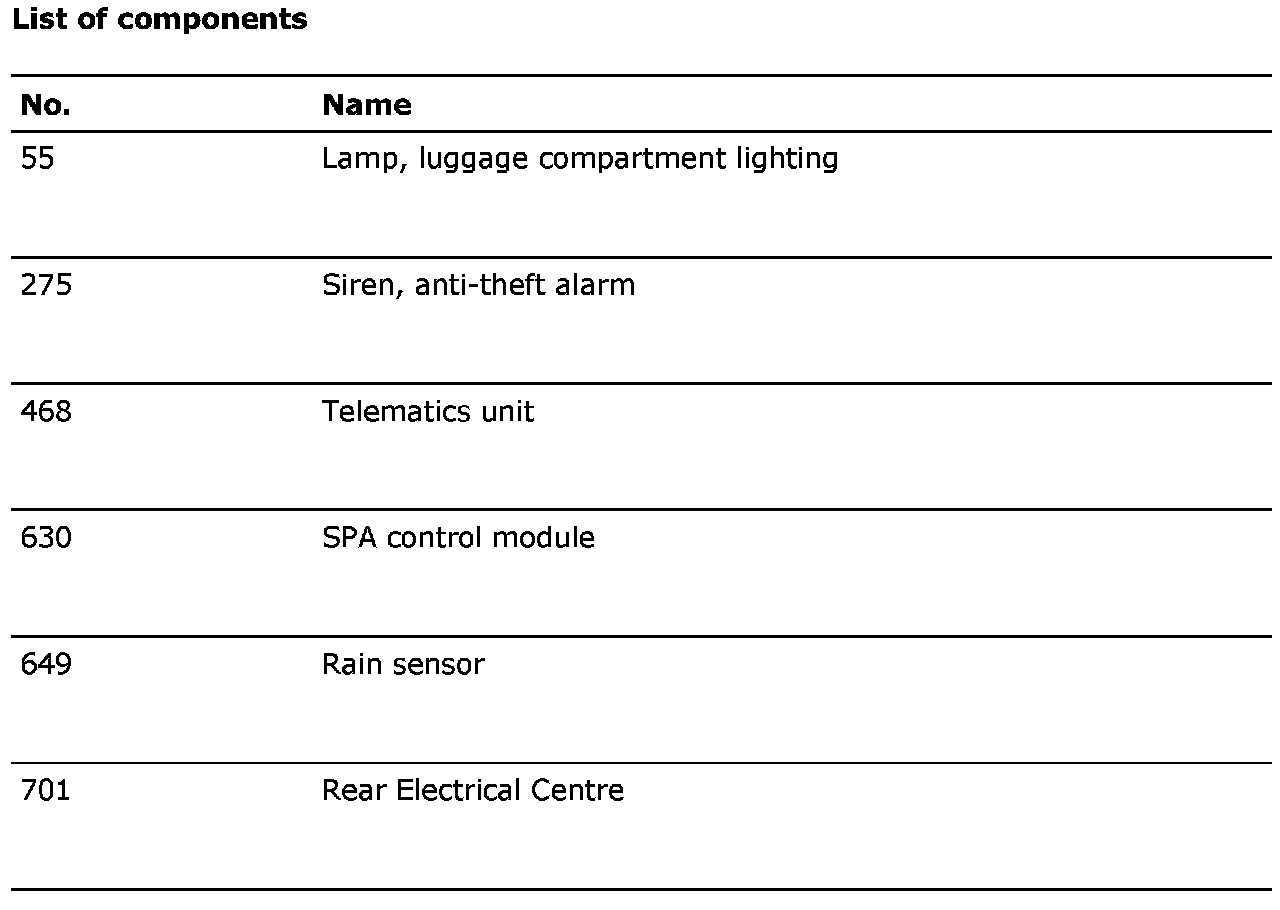

List Of Components:
