Home >> Saab >> 2004 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Locations >> Component Locations >> SPA Control Module (630) >> Convertible

Convertible



SPA Control Module (630)

CV

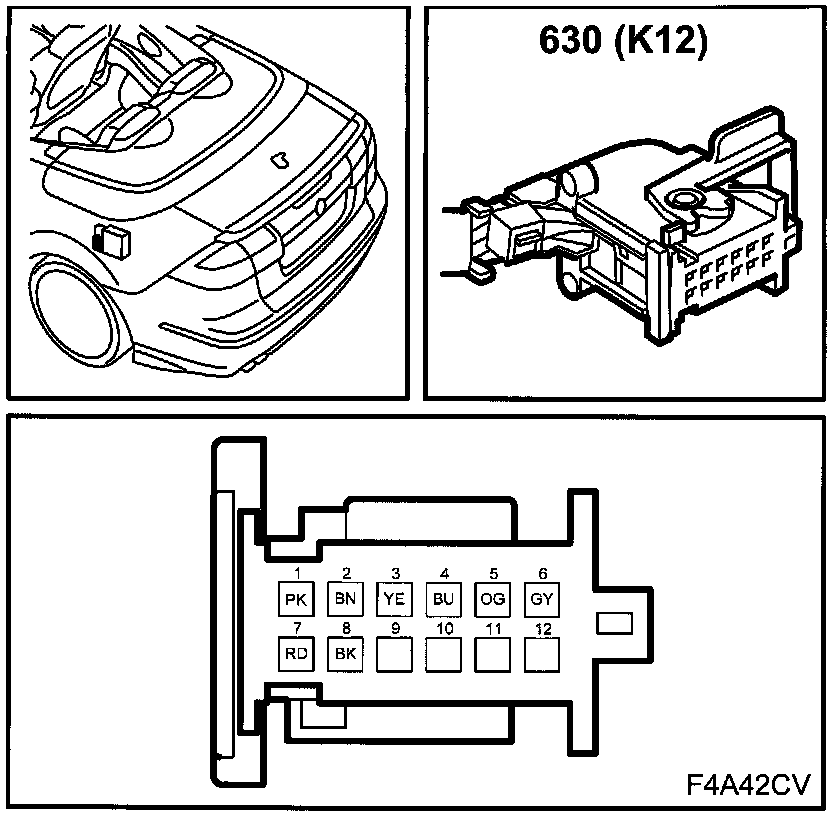

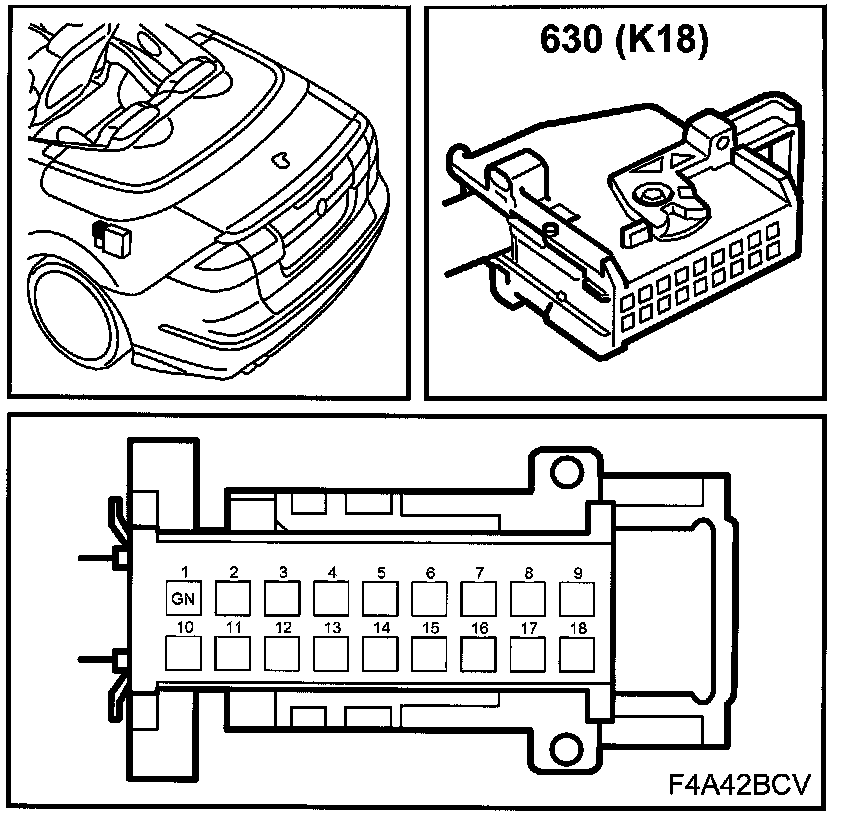

Location: under Rear Electrical Centre


K12







K18
