Main Components

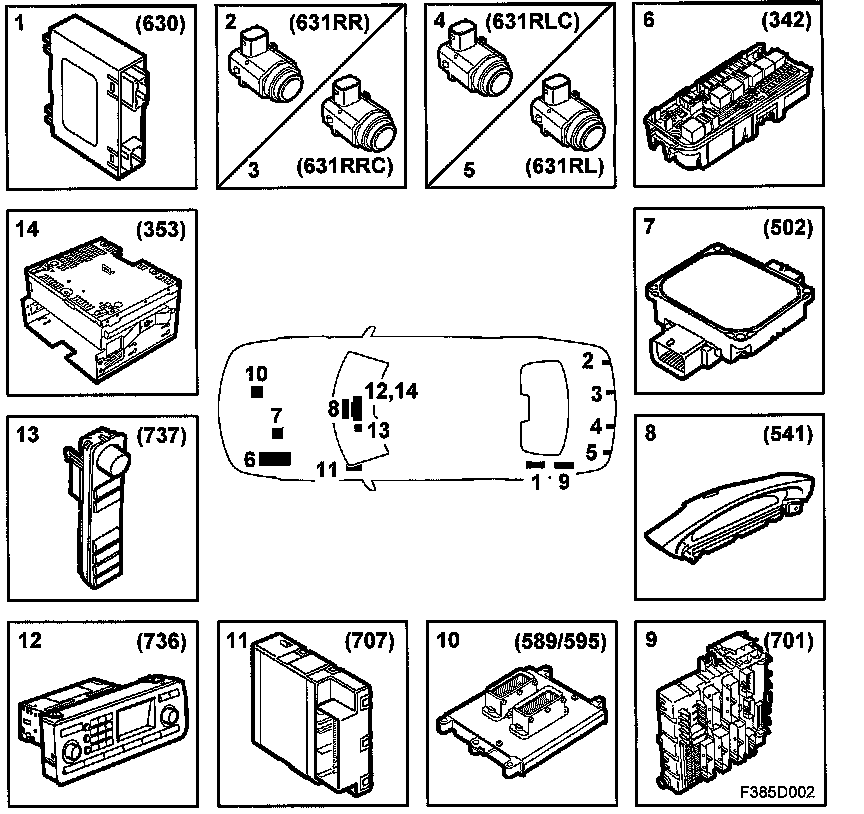

Main Components







1. SPA control module (630)
2. Ultrasound distance sensor, outer right (631RR)
3. Ultrasound distance sensor, centre right (631RRC)
4. Ultrasound distance sensor, centre left (631RLC)
5. Ultrasound distance sensor, outer left (631RL)
6. Main fuse box, engine bay, UEC (342)
7. TCM control module (502)
8. SID (541)
9. Rear electrical centre, REC (701)
10. Engine Control Module (ECM)
11. BCM control module (707)
12. Infotainment control panel, ICM (736)
13. SID control panel, SIDC (737)
14. Entertainment head unit, EHU (353)
