Sedan

Fitting Kit, Anti-Theft Alarm, 4D

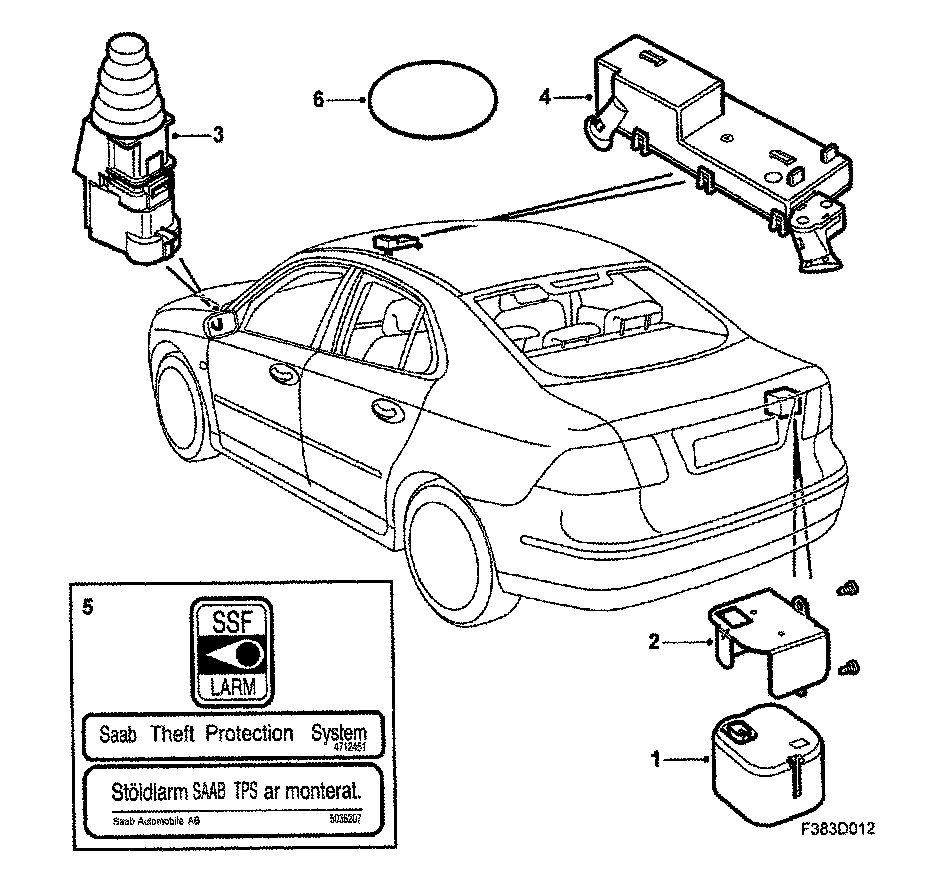

Kit Components






1. Siren (Replacement procedure shown below)
2. Siren console
3. Bonnet switch (Replacement procedure shown below)
4. Theft alarm sensor (Replacement procedure shown below)
5. Labels Affixing Anti-Theft Alarm Labels
6. Self-adhesive foam plug, dia. 50 mm.

Siren
1. Open the boot lid.

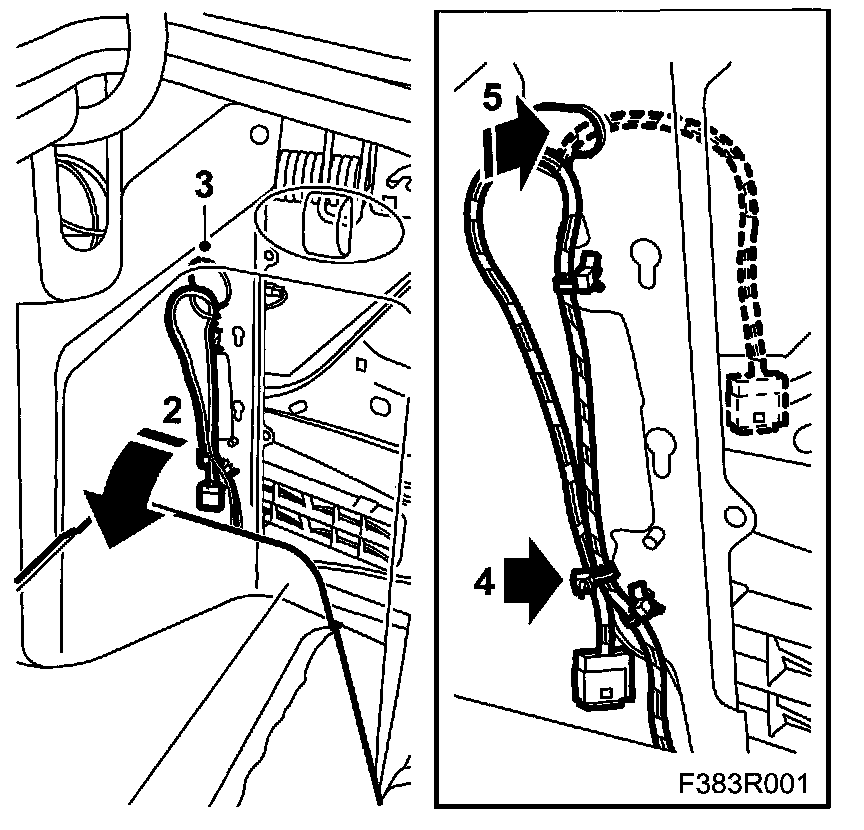

2. Open the right-hand hatch in the luggage compartment.
3. Remove the foam plug.
4. Remove the cable ties holding the cables.
5. Insert the cables through the hole.
6. Plug in the connector to the siren.

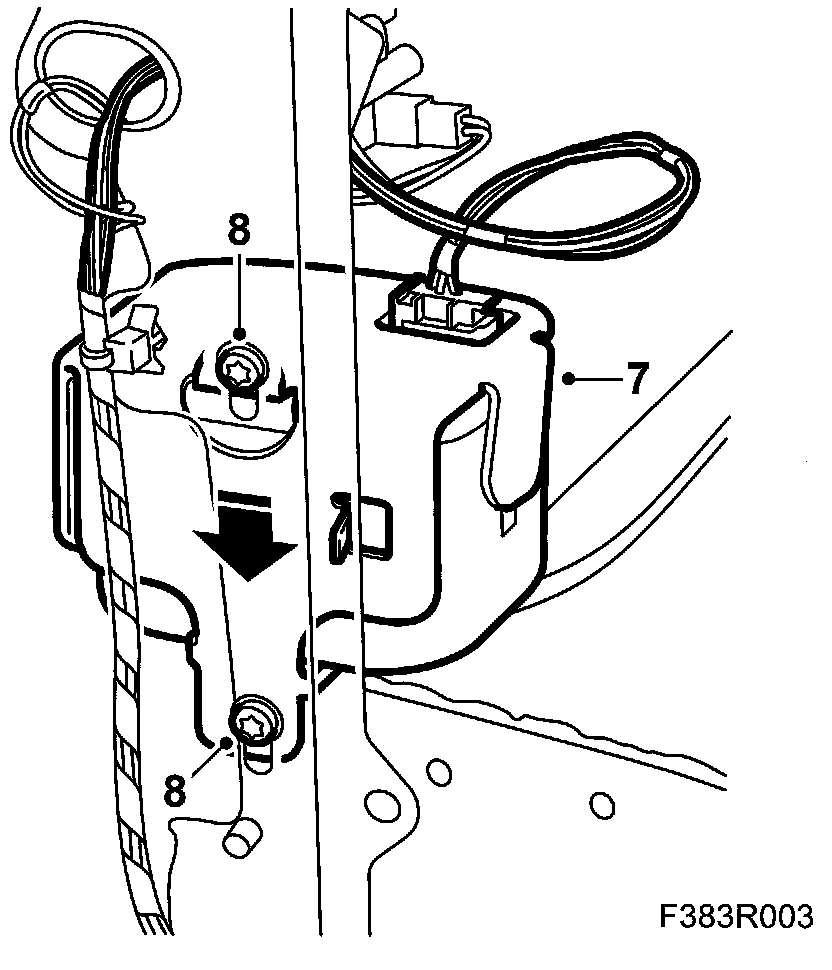

7. Fit the siren.
8. Tighten the 2 bolts securing the siren.
Tightening torque 4.0 +/- 1.2 Nm

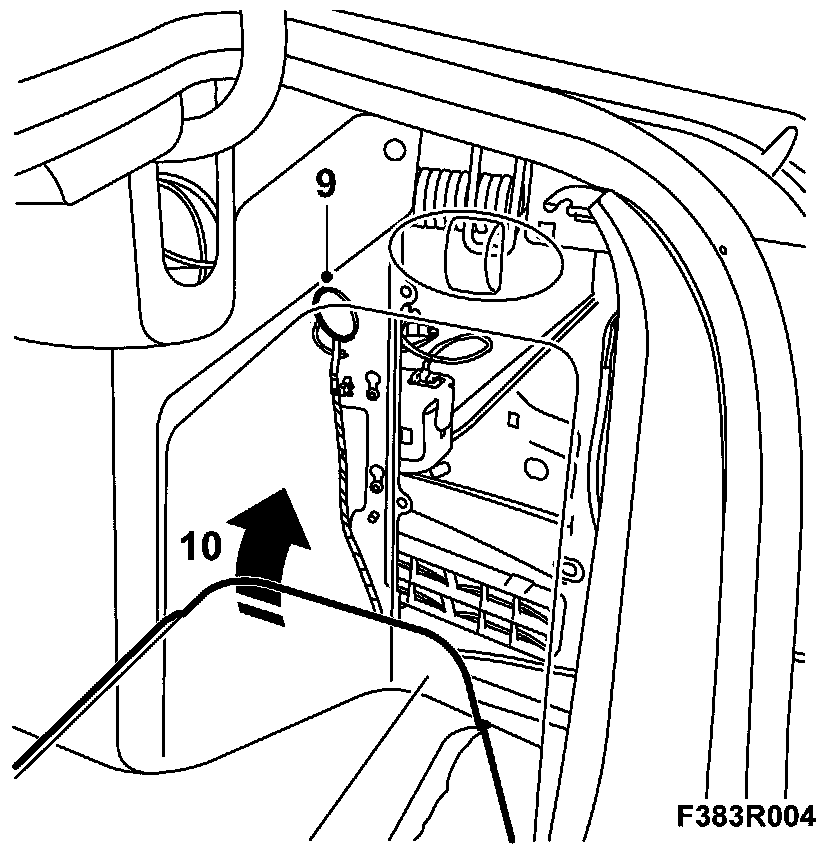

9. Fit the foam plug.
10. Close the side hatch.
11. Close the boot lid.

Bonnet Switch
1. Open the bonnet.

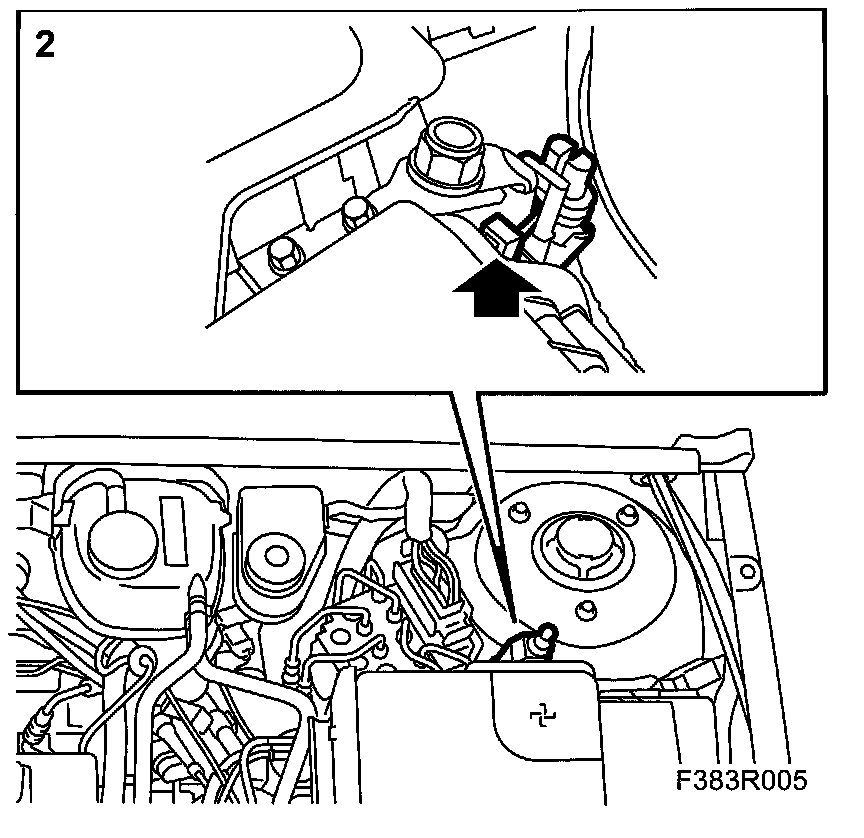

2. Remove the clip holding the cables.

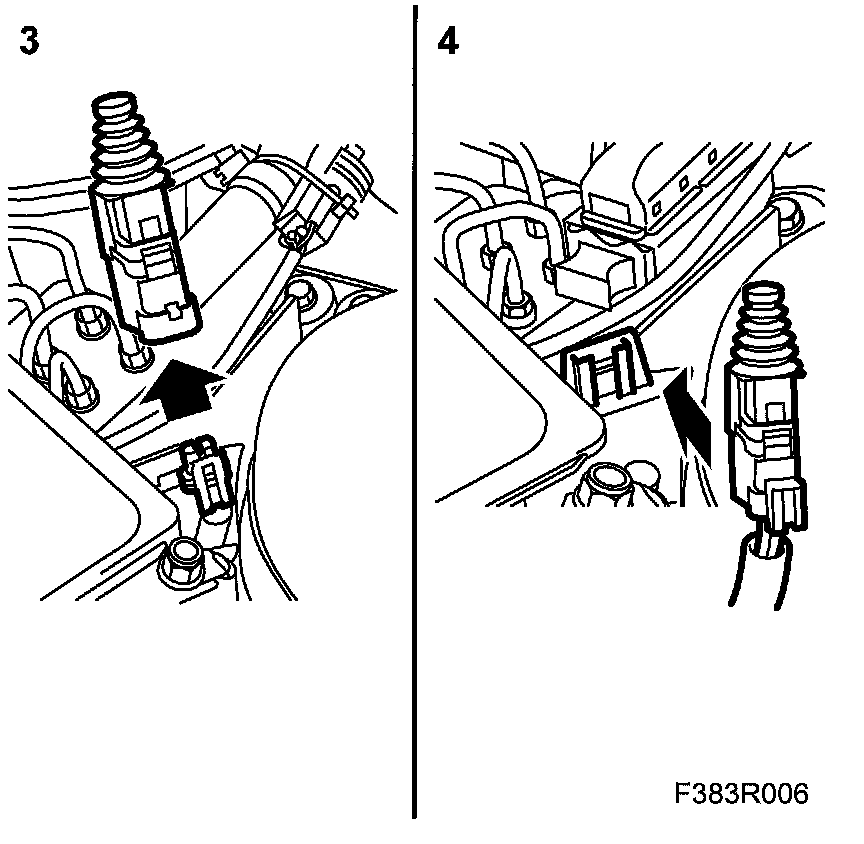

3. Plug in the connector to the bonnet switch.
4. Fit the bonnet switch.
5. Close the bonnet.

Theft Alarm Sensor

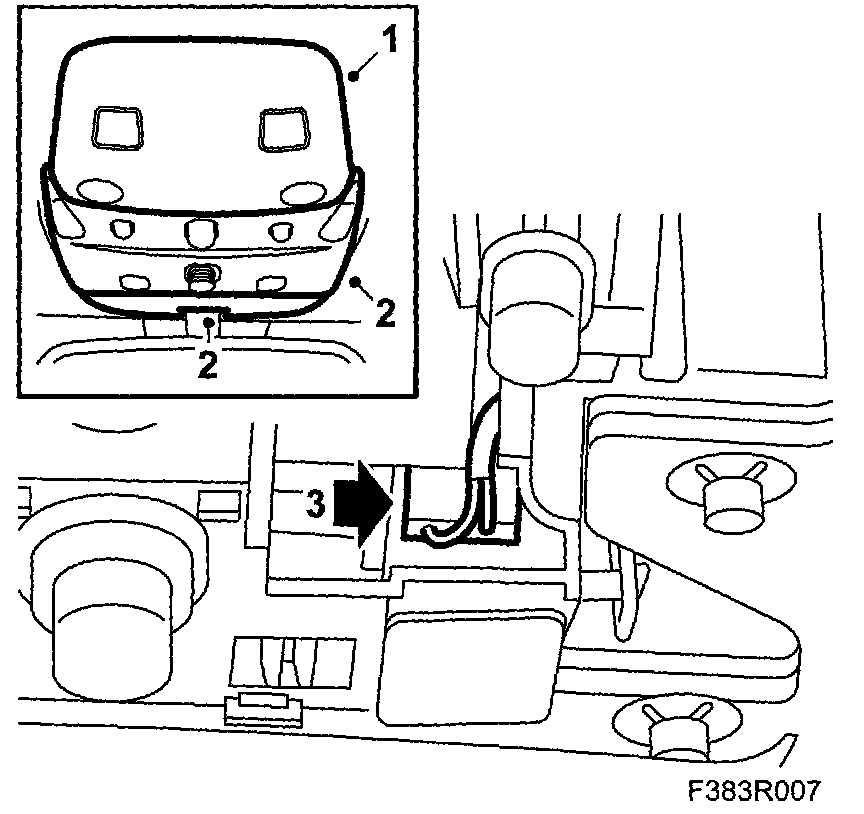

1. Remove the lens protector from the dome light.
2. Remove the switch panel.
3. Remove the connector from its mounting.

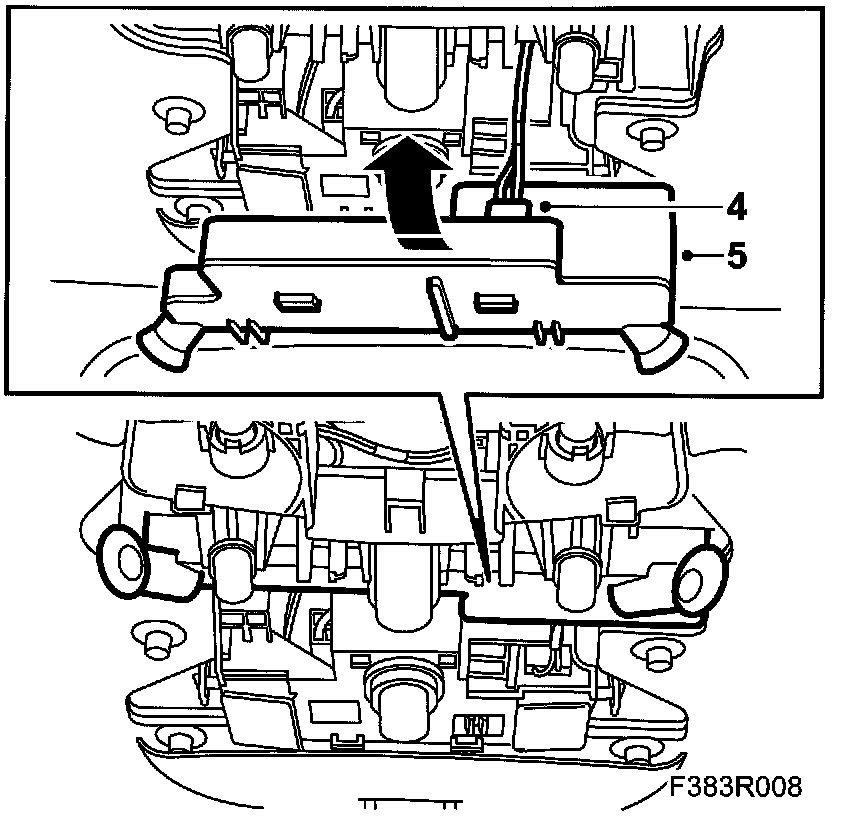

4. Connect the connector to the anti-theft alarm sensor.
5. Fit the theft alarm sensor. A click should be heard.






6. Remove the two protective cases from inside the switch panel.

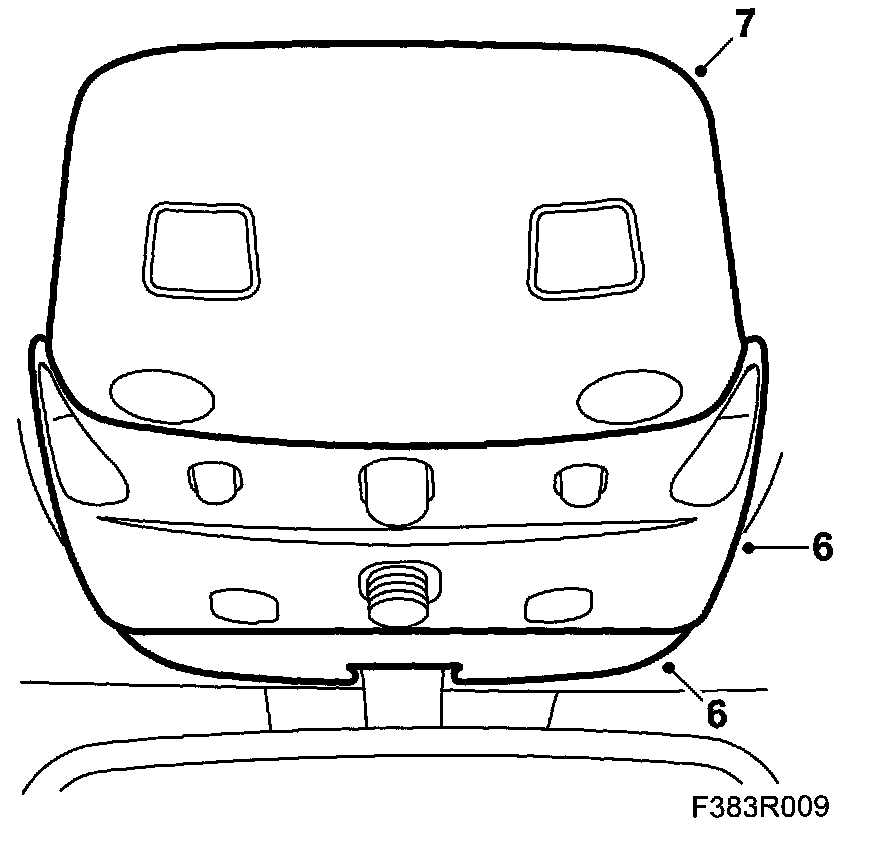

7. Fit the switch panel.
8. Fit the lens protector.
9. Connect the diagnostic tool.
10. Select Add / Remove- Accessories -Theft Alarm and then follow the on-screen instructions.

Theft Alarm Labels
See Affixing theft alarm labels in this section.
