Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Locations
>>
Splice Locations
>>

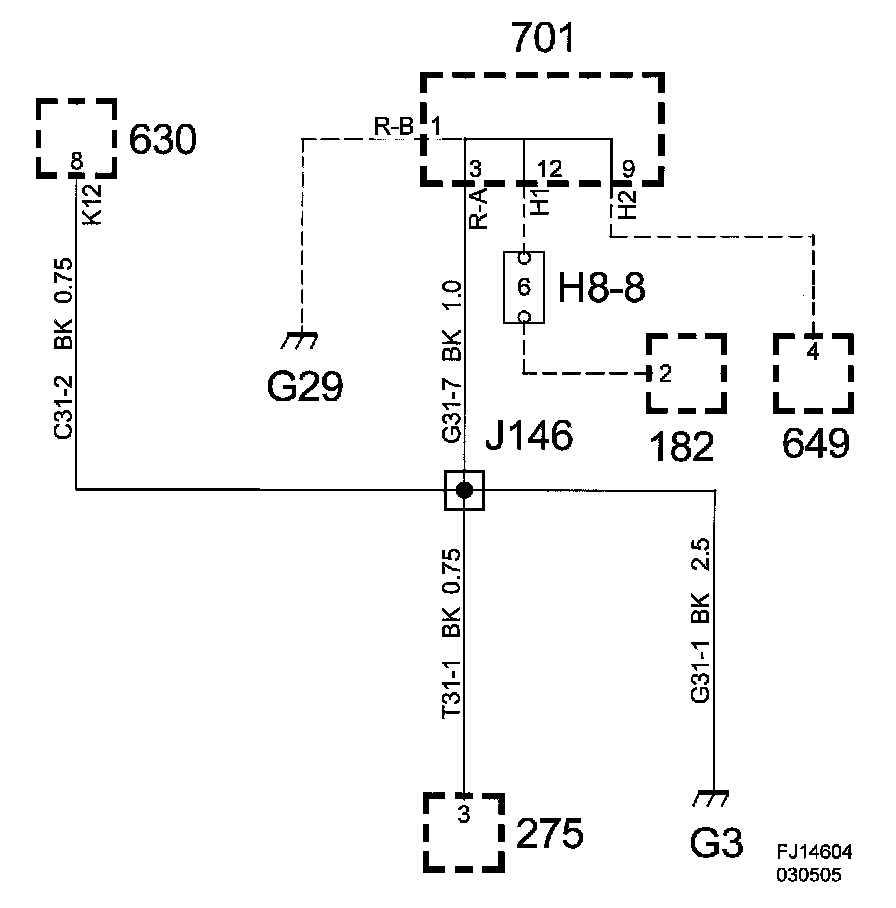

Crimp Connection J146, Rear Harness
Crimp Connection J146, Rear Harness
Crimp J146, Rear Harness, 4D
Location:
Approx. 380 mm
from the REC

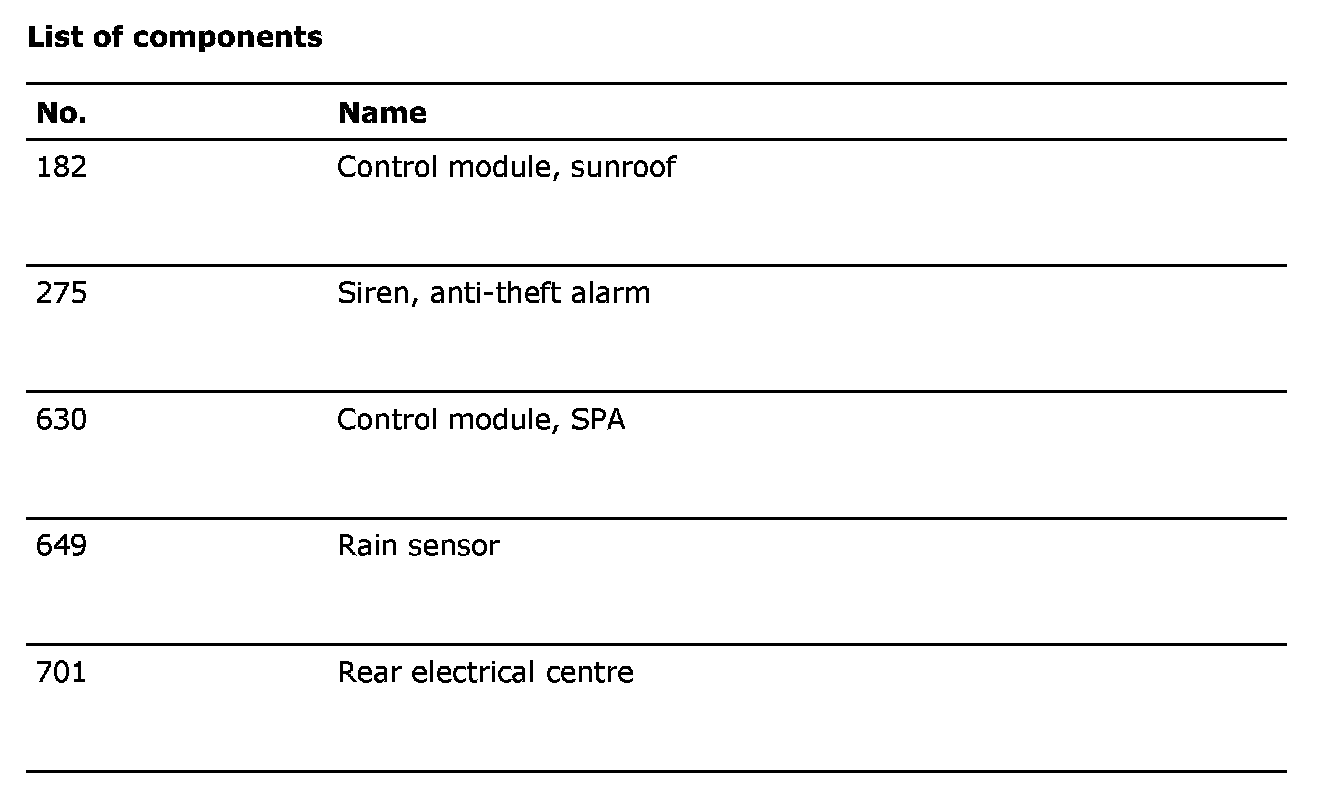

List Of Components:
