U2103

U2103 00

TPMM was Missing on Bus







Fault symptom
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Turn Ignition On

Fault criteria:
- Control module absent on the I-bus.

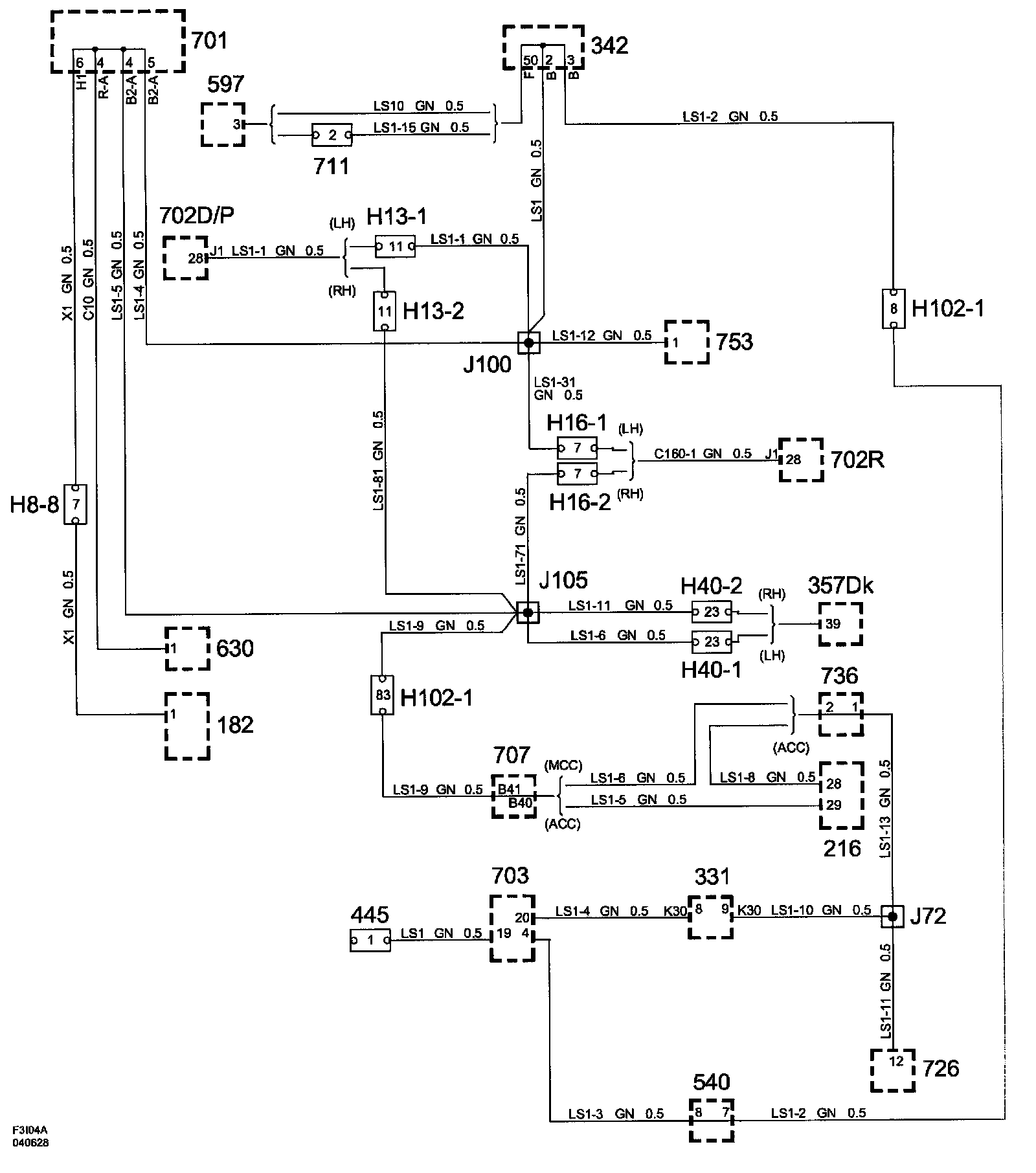

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help
- If the DTC is stored and read with the diagnostic instrument, it indicates intermittent bus lead fault.
