P2535

P2535 00

+15, Voltage Too High







Fault symptom
None

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Ignition ON.
Crankshaft stationary or rotating.

Fault criteria:
When input voltage exceeds 25.5 V.

Dependent
None

System reaction to a fault:
None

OK report:
Fault criteria NOT fulfilled for 2 s with engine running.

Fault handling:
Type III without Check Engine.
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

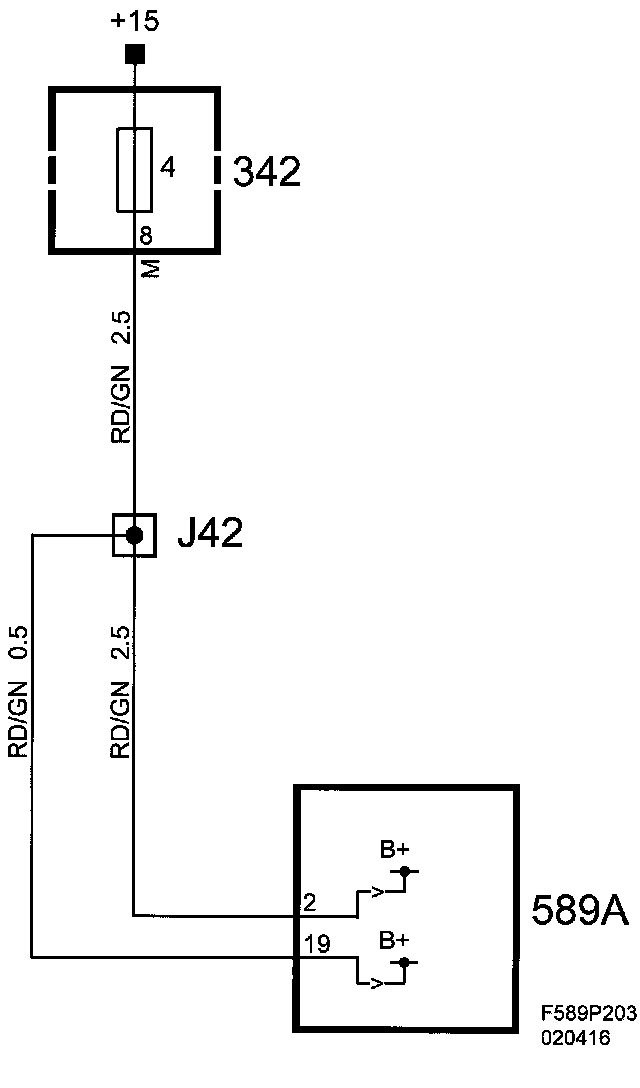

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:
Test value:
- Ignition switch +15
- Ignition Key Position
