P1616

P1616 00

CIM Or I Bus ECU's Not Added







Fault symptom
The car will not start.

On-board diagnosis

Type of diagnosis:
Once per driving cycle.

Enable criteria:
Ignition ON.

Fault criteria:
CIM or ECU on I-bus have not been programmed.

Dependent
None

System reaction to a fault:
Starter motor cannot be started.

OK report:
Fault criteria NOT fulfilled.

Diagnostic help
See which DTC are stored in the other systems and read their diagnostics information.

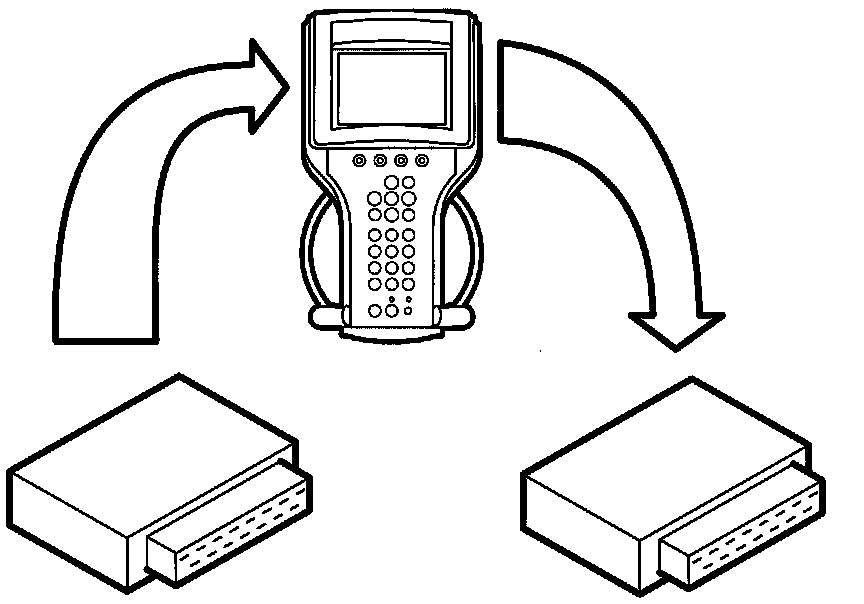

See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.
