P1611

P1611 00

Control Module Not Added







Fault symptom
The car will not start.

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Ignition ON.

Fault criteria:
Incorrect security code entered at "ADD".

Dependent
None

System reaction to a fault:
Control module locks for a specific amount of time whenever an incorrect security code is entered.

OK report:
Fault criteria NOT fulfilled.

Diagnostic help

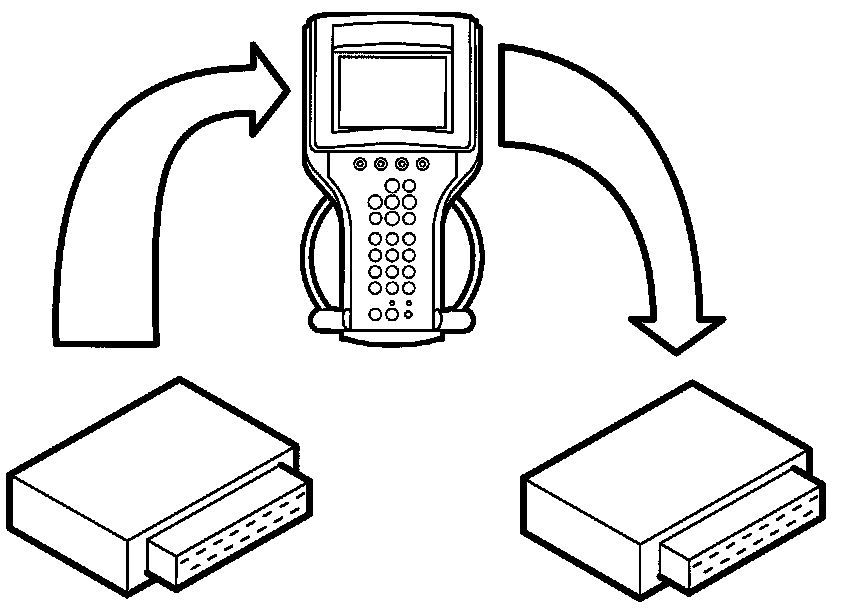

See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.
