P1132

P1132 00

O2S. Switch Point - Rich. Sensor 1







Fault symptom
Check Engine (OBD II, EOBD).

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Engine speed between 1500 and 2800 rpm.
Engine load between 200 - 400 mg/c.
No changes in load.
Closed loop is blocked (rich or lean) for a number of combustions in order to maintain 0.7V from oxygen sensor 2. The prescribed number of combustions is adapted.

Fault criteria:
Closed loop blocked in lean mode for more than 50 combustions.

Dependent
None

System reaction to a fault:
None

OK report:
Diagnosis completed without fault report.

Fault handling:
Type III

Diagnostic help

Diagnosis regards:

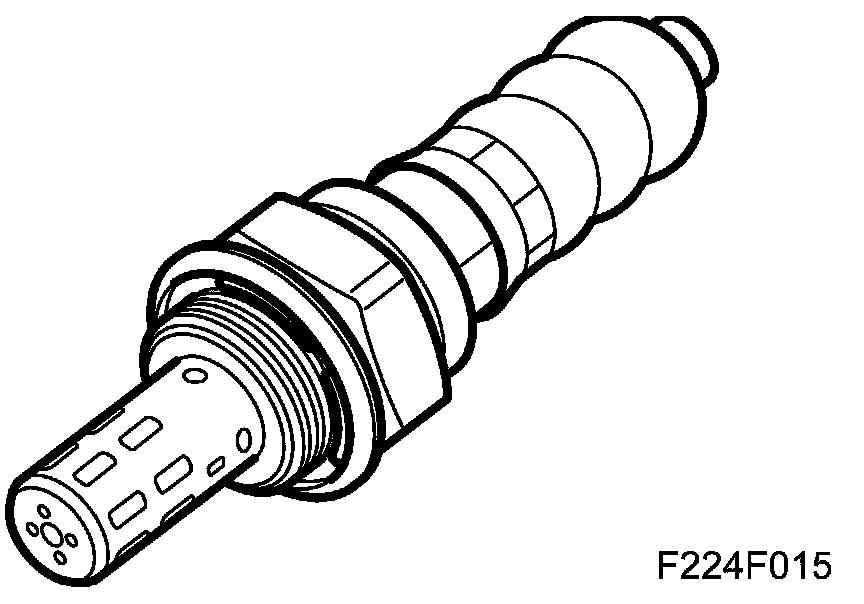

Defective oxygen sensor.

Functions in the diagnostic tool related to the fault:
Test value:
- O2S 1
- Closed Loop
