P0715 00 (TCM - Trans Control Module)

P0715 00

Input RPM. No Signal.







On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Engine running.
Exceptions:
- Limp home
Output speed is less than or equal to:
- 2nd gear, Output speed less than or equal to 207 rpm.
- 3rd gear, Output speed less than or equal to 317 rpm.
- 4th gear, Output speed less than or equal to 469 rpm.
- 5th gear, Output speed less than or equal to 610 rpm.

Fault criteria:
Control module receives no voltage from the input speed sensor.
Control module receives no value from input speed sensor but receives value from the output speed sensor.

System reaction to a fault:
Change value for input speed to that of output speed.
If the DTC remains during several test cycles:
- Limp home

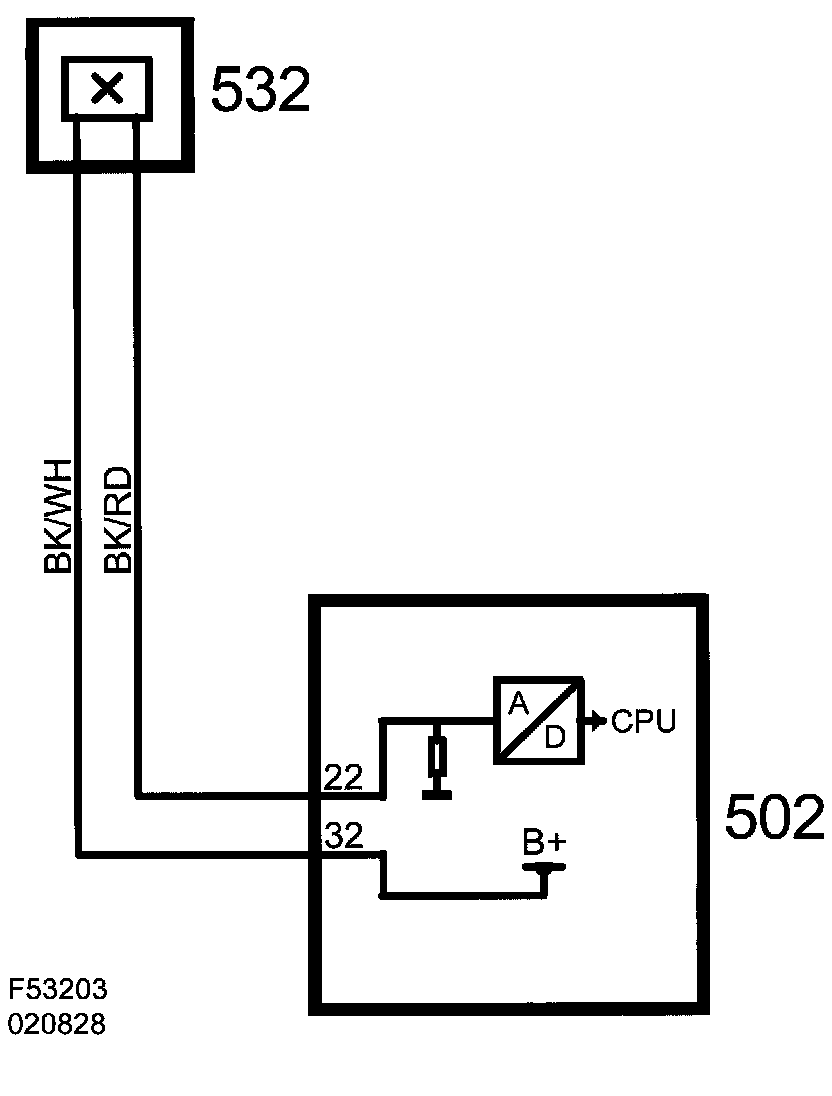

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
Electrical fault in connecting leads or component.
