P0705



P0705 08

Transmission Range Switch. Input Incorrect.







Fault symptom
Messages shown in SID.
Poor shifting quality.

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Engine running.

Fault criteria:
Combination of gear position sensor inputs to TCM not permitted.

System reaction to a fault:
TCM in Limp Home.
Limited shifting functions.

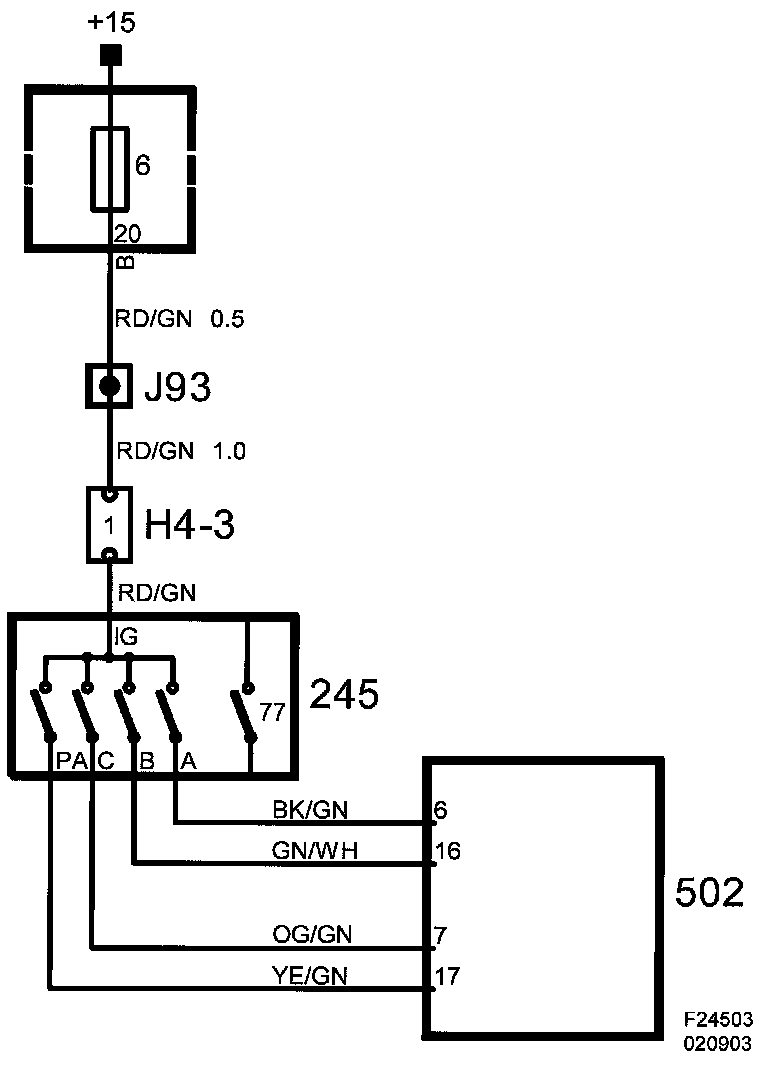

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
Locating a mechanical fault.

Functions in the diagnostic tool related to the fault:
Test value:
- Gear Selector Position
