P0704

P0704 00

Clutch Switch Input Circuit Malfunction







Fault symptom
Cruise control not working.

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Battery voltage must be between 11 - 16 V.
Manual gearbox.
Vehicle speed has not been reduced from 50 to 3 km/h (31 to 2 mph) within a period of 2 s.

Fault criteria:
No status change for the clutch switch when vehicle speed has increased from 3 - 50 km/h (2 - 31 mph).
A DTC is generated if this occurs 4 consecutive times.

Dependent
None

System reaction to a fault:
Cruise control switched off.

OK report:
Status change for the clutch switch has occurred.

Fault handling:
Type III without Check Engine.
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

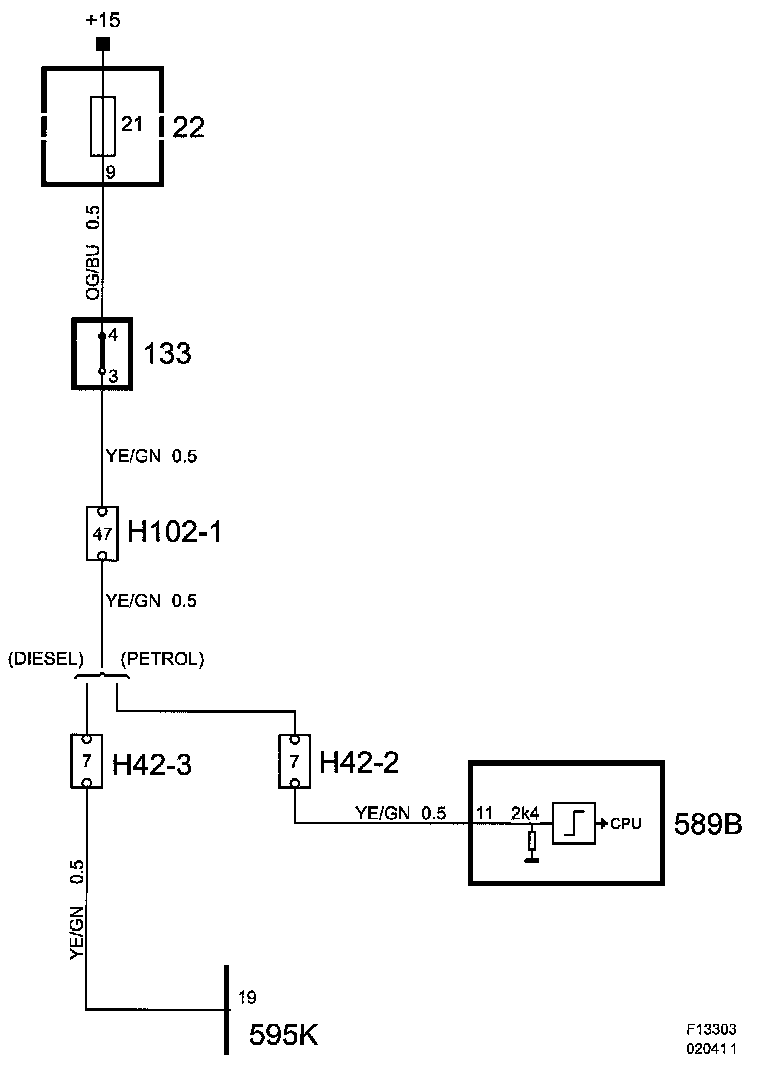

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:
Test value:

Clutch Switch
