P0695

P0695 00

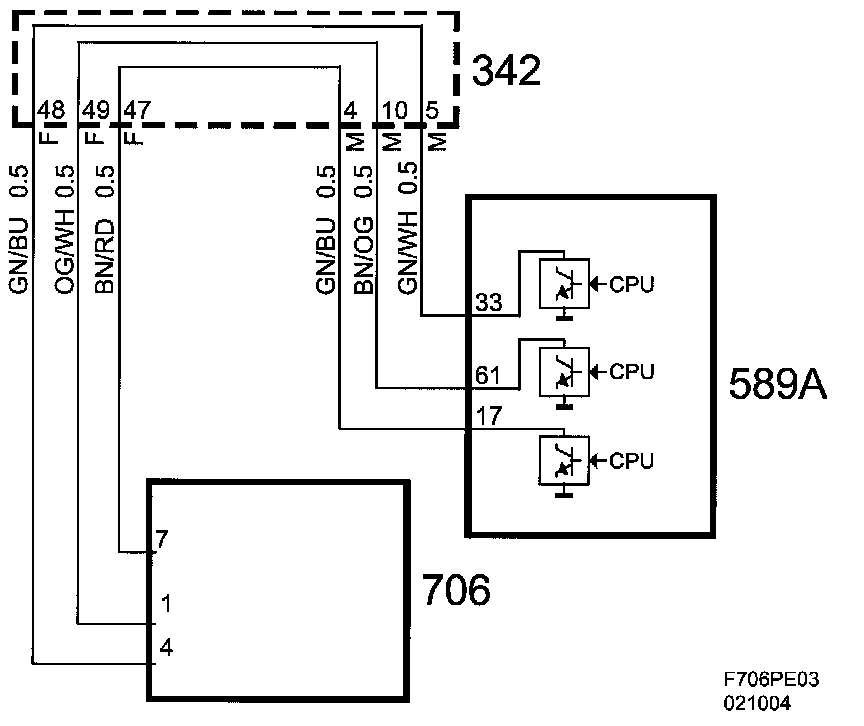

Cooling Fan 3 Control Circuit, Open/Short To Ground







Fault symptom
Radiator fan malfunction.
No A/C function.
Limp home

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Battery voltage must be between 11 - 16 V.
Engine running.
Output is not active.

Fault criteria:
When voltage on the output is below 2.0 V for more than 1 s.

Dependent
None

System reaction to a fault:
Switches off output to A/C relay.
Engine torque limitation (which is a function of vehicle speed, intake air temperature and number of incorrect fan stages).

OK report:
Fault criteria NOT fulfilled for 5 s.

Fault handling:
Type III without Check Engine.
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:
Test value:
- Fan Control Output 3

Activation:
- Radiator Fan Speed 4
