P0632

P0632 00

Control Module Not Added







Fault symptom
Check Engine

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Ignition on for at least 3 s.

Fault criteria:
Wheel circumference not programmed.

Dependent
None

System reaction to a fault:
None

OK report:
Fault criteria NOT fulfilled.

Fault handling:
Type III
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

Diagnostic help

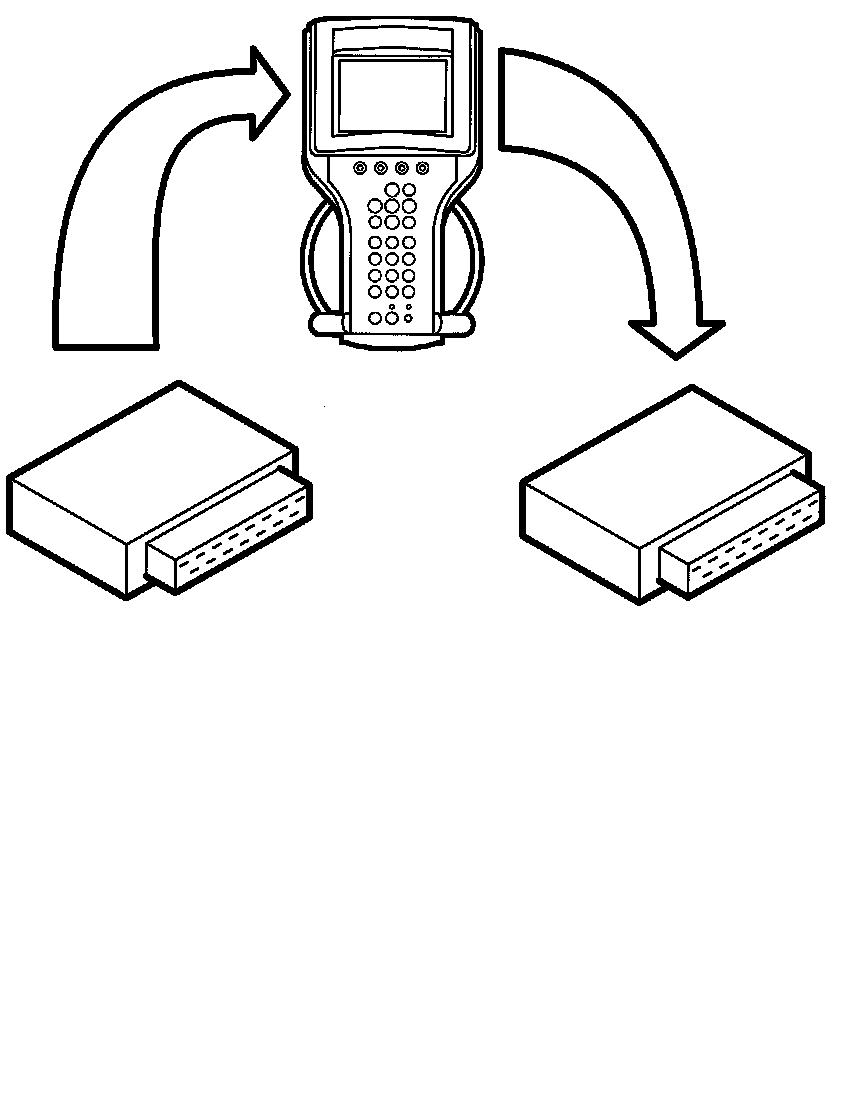

See "After fitting a control module" under fault diagnosis, general.
