P0628

P0628 00

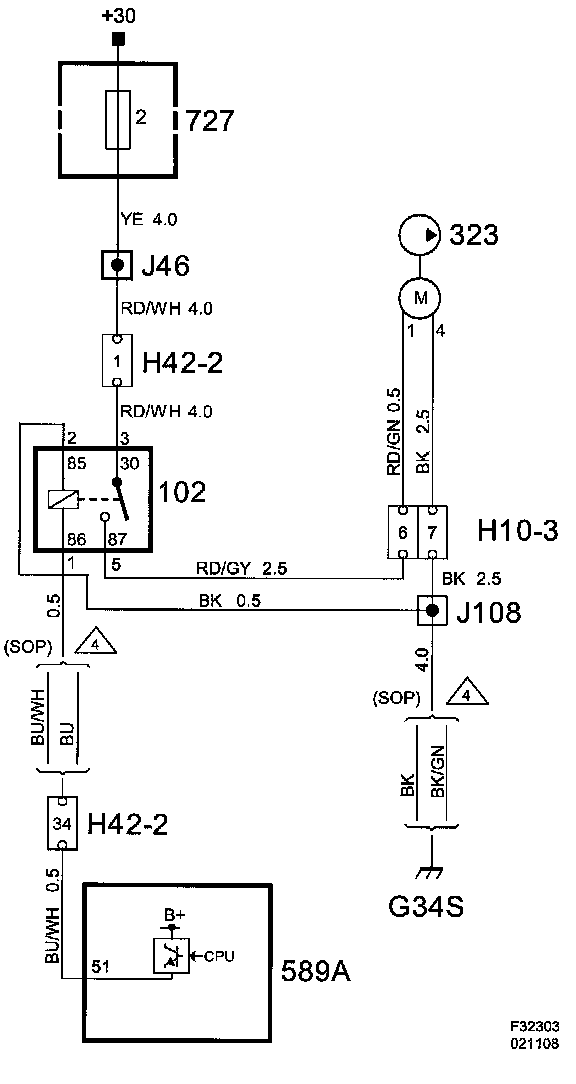

Fuel Pump Relay Circuit, Short To Ground







Fault symptom
Check Engine
Engine does not start.

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Battery voltage must be between 11 - 16 V.
Ignition ON.
Output active.

Fault criteria:
When voltage on the output is below 2.0 V for more than 1 s.

Dependent
None

System reaction to a fault:
None

OK report:
Fault criteria NOT fulfilled for 2 s with engine running.

Fault handling:
Type III
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help
Fault in connector H42-2 is often a cause of this DTC.
