P0602 00 (TCM - Trans Control Module)

P0602 00

Control Module Not Added







Fault symptom
Messages shown in SID.
Gearbox not shifting gear.

On-board diagnosis

Type of diagnosis:
During each initiation and after each programming

Enable criteria:
Ignition ON.

Fault criteria:
The control module is not EOL programmed.

System reaction to a fault:
Gearbox not shifting gear.

Diagnostic help

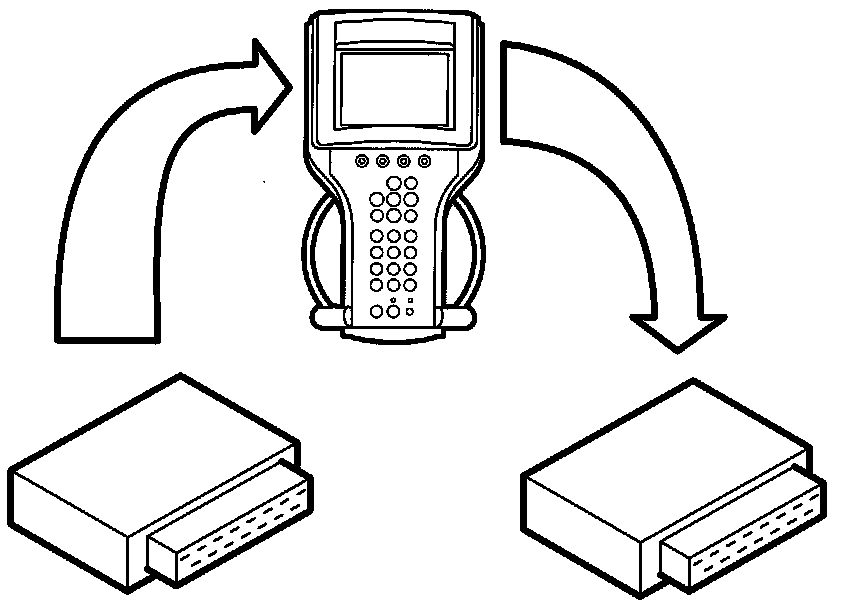

See "After fitting a control module" under fault diagnosis, general.
