P0602 00 (T8 - Trionic Engine Management)

P0602 00

Control Module Not Added







Fault symptom
Check Engine

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Ignition ON for at least 3 seconds.

Fault criteria:
Control Module not Added

Dependent:
None

System reaction to a fault:
None

OK report:
Fault criteria NOT fulfilled.

Fault handling:
Type III
(See section Fault handling III, "Other emission-related components and functions" for more information.)

Diagnostic help
Diagnosis regards:

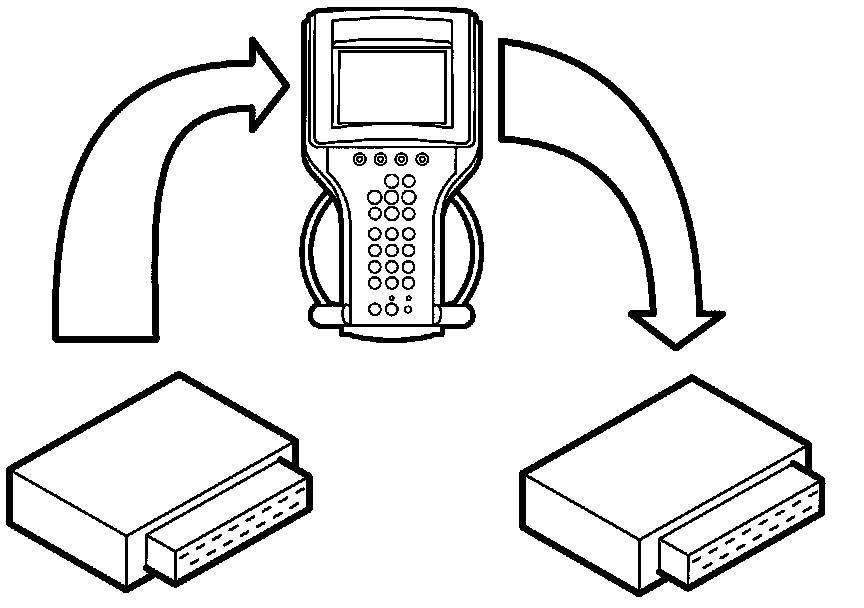

See "After fitting a control module" under fault diagnosis, general.

Functions in the diagnostic tool related to the fault:
See menu "All - Add/Remove"
