P0551

P0551 00

Power Steering Pressure Switch Performance Problem







Fault symptom
No load compensation for power steering.
Higher idling speed.

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Battery voltage must be between 11 - 16 V.
Engine running.


Fault criteria:
Status change for the power steering pressure switch has occurred for a duration of 600 s when vehicle speed has been higher than 50 km/h (31 mph).

Dependent
P0501

System reaction to a fault:
Control module continues working with the higher idling function.

OK report:
Status change for the power steering pressure switch has occurred.

Fault handling:
Type III without Check Engine.
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

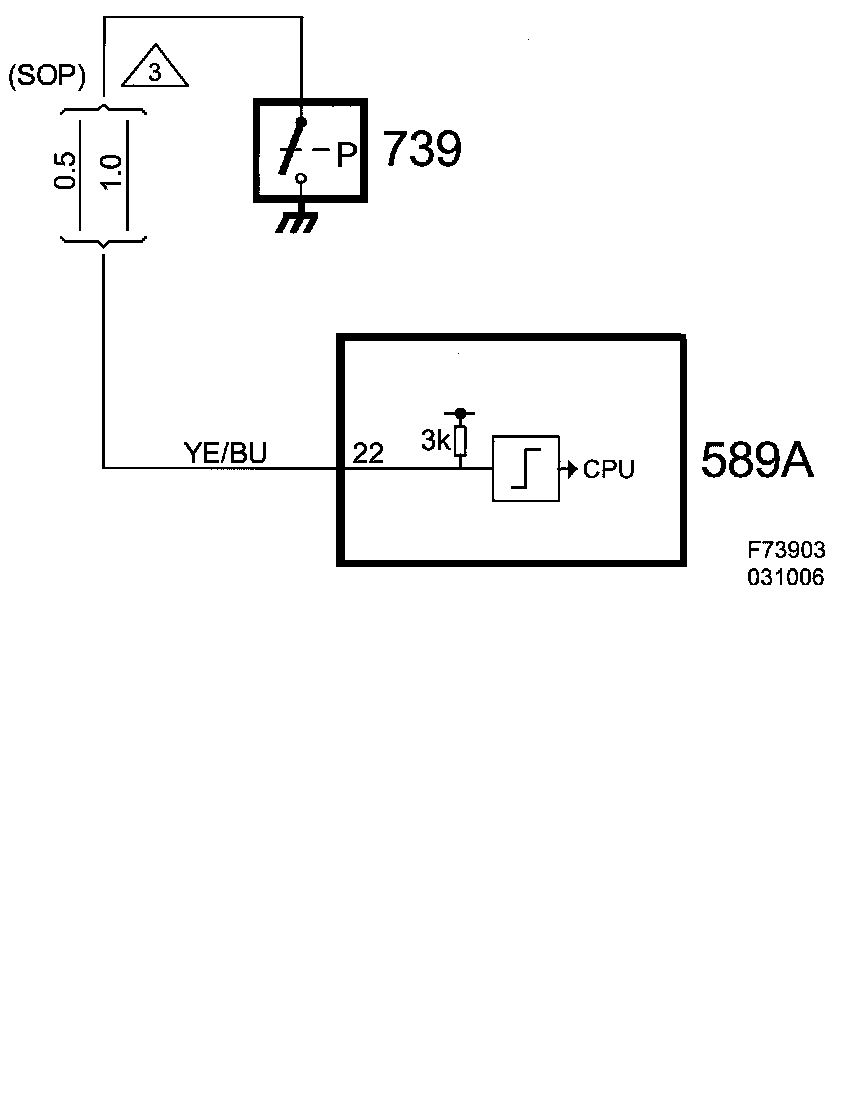

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:
Test value:
- Power Steering Pressure Switch
