P0507

P0507 00

Idle Speed Control. Idling Speed Too High.







Fault symptom
Check Engine (OBD II).
Higher idling speed.

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Engine running.
Accelerator pedal released.
Vehicle speed 0 km/h.

Fault criteria:
Engine speed exceeds requested idling speed by more than 100 rpm for more than 10 s.

Dependent
None

System reaction to a fault:
Control module continues working with the higher idling function.

OK report:
Fault criteria NOT fulfilled for 11 s.

Fault handling:
Type III
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

Diagnostic help

Diagnosis regards:

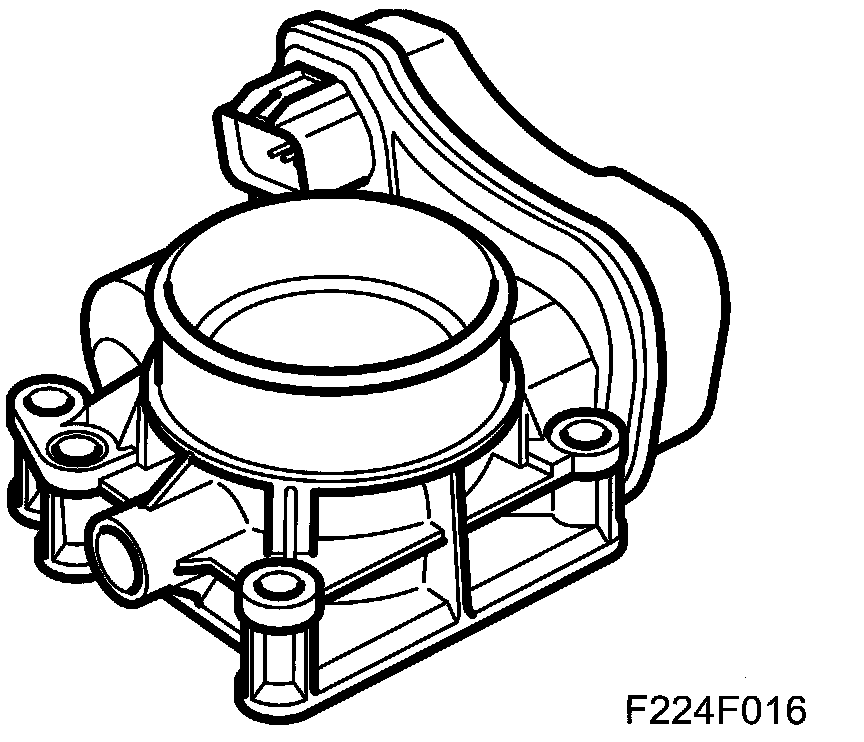

Air leak after throttle or blocked throttle.

Functions in the diagnostic tool related to the fault:
Test value:
- Engine RPM
