P0462

P0462 00

Fuel Level Sensor Circuit, Short to Ground







Fault symptom
Incorrect display of fuel level

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Battery voltage must be between 11 - 16 V.
Engine running.

Fault criteria:
When the voltage on the input is below 0.72 V for more than 1 s.
(Value is -15 L in case of a fault)

Dependent
None

System reaction to a fault:
The control module uses a substitute value of 40 litres when fault is detected.

OK report:
Fault criteria NOT fulfilled for 2 s with engine running.

Fault handling:
Type III without Check Engine.
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

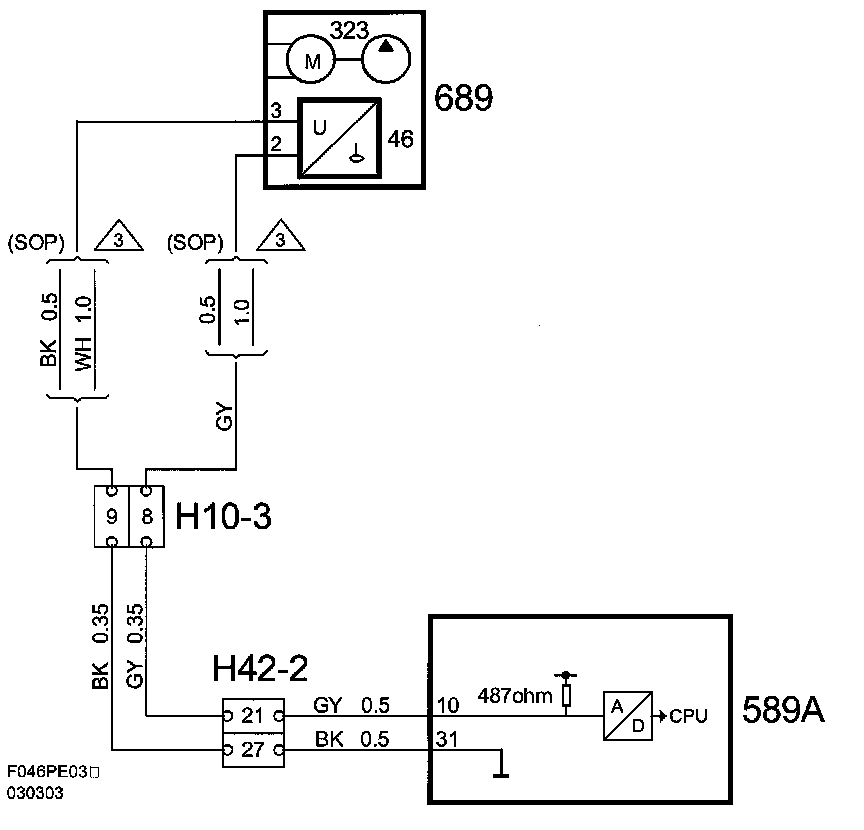

Fault in connector H42-2 is often a cause of this DTC.
