P0461

P0461 00

Fuel Level Sensor Circuit, Preformance Problem







Fault symptom
D.T.E (Distance to Empty) out of order.

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
General conditions for this DTC
- Battery voltage must be between 11 - 16 V.
- Engine running.

NONE of the following DTCs must be detected: P0462, P0463

Test 1
- Fuel level below 55 litres.

Test 2
- Fuel level over 55 litres.


Fault criteria:
Test 1
- The diagnosis calculates the fuel consumption over a distance of 35 km. A DTC is generated if 5 measurements in succession differ more than 0.5 litres from each other.

Test 2
- The diagnosis calculates the fuel consumption over a distance of 70 km. A DTC is generated if 5 measurements in succession differ more than 0.5 litres from each other.

Dependent
None

System reaction to a fault:
The control module uses a substitute value of 40 litres when fault is detected.

Fault handling:
Type III without Check Engine.
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

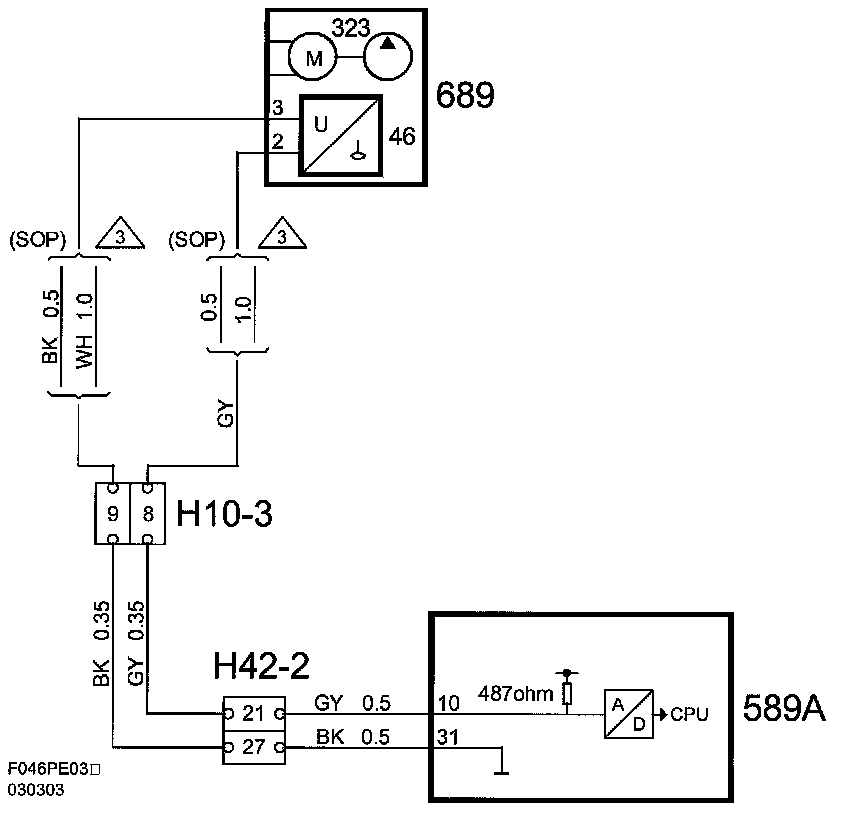

Fault in connector H42-2 is often a cause of this DTC.
