P0037

P0037 00

O2S 2 Preheather Circuit, Open/Short to Ground







Fault symptom
CHECK ENGINE

On-board diagnosis

Type of diagnosis:
Continuous

Enable criteria:
Battery voltage must be between 11 - 16 V.
Engine running.
Preheating active.
NONE of the following DTCs must be detected: P0685, P0686, P0687

Fault criteria:
When current is below 1500 mA for more than 6 s..

Dependent:
P0628
P0629

System reaction to a fault:
Preheating is switched off.
Adaption of rear oxygen sensor is blocked and reset.

OK report:
When fault criteria NOT fulfilled for 7 s.

Fault handling:
Type III
(See Description of On-Board Diagnostics/Fault handling III, "Other emission-related components and functions" for more information.)

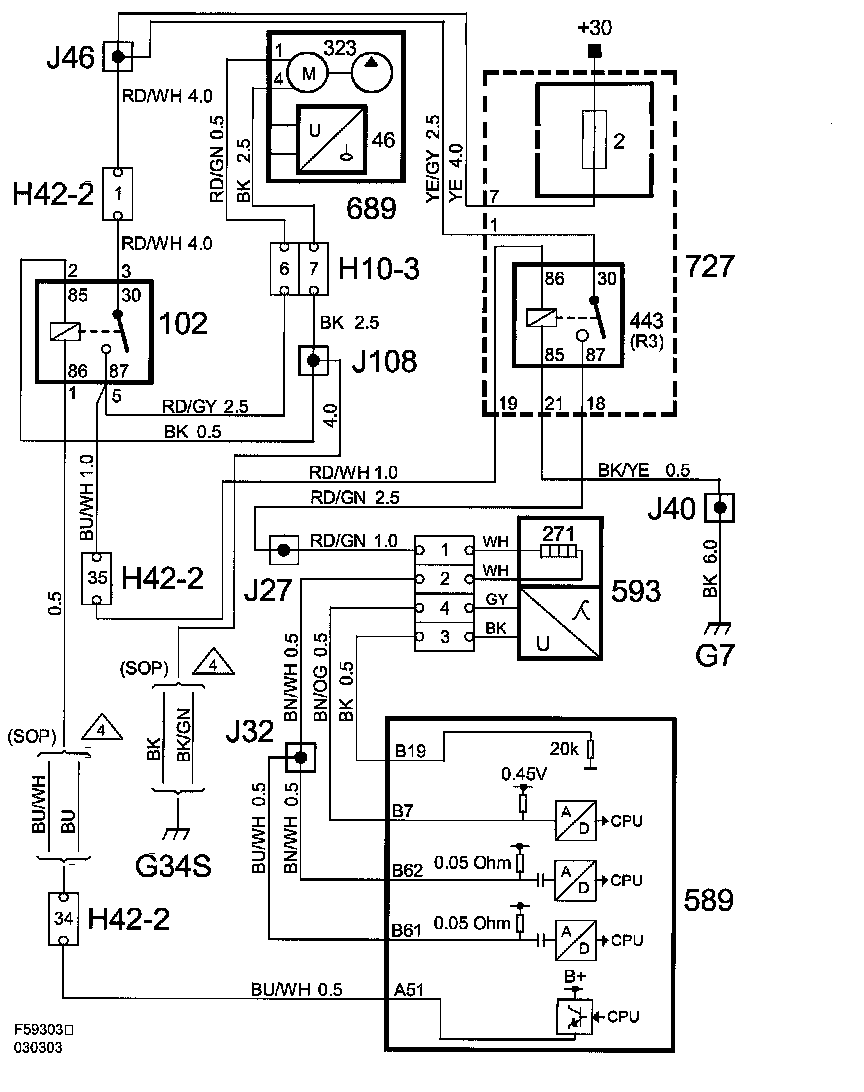

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:
Test value:
- O2S 2 Preheating

Activation:
- O2S 2 Preheating
- Pump Relay
