C0895

C0895 08
Yaw Rate Sensor, Supply Voltage Out of Range





Fault symptom
ESP warning lamp on.
Messages shown in SID.
On-board diagnosis
Type of diagnosis:
Continuous
Enable criteria:
Ignition ON.
Fault criteria:
Voltage to yaw rate sensor below 7.8 V for 10 seconds with ignition on.
System reaction to a fault:
No ESP function

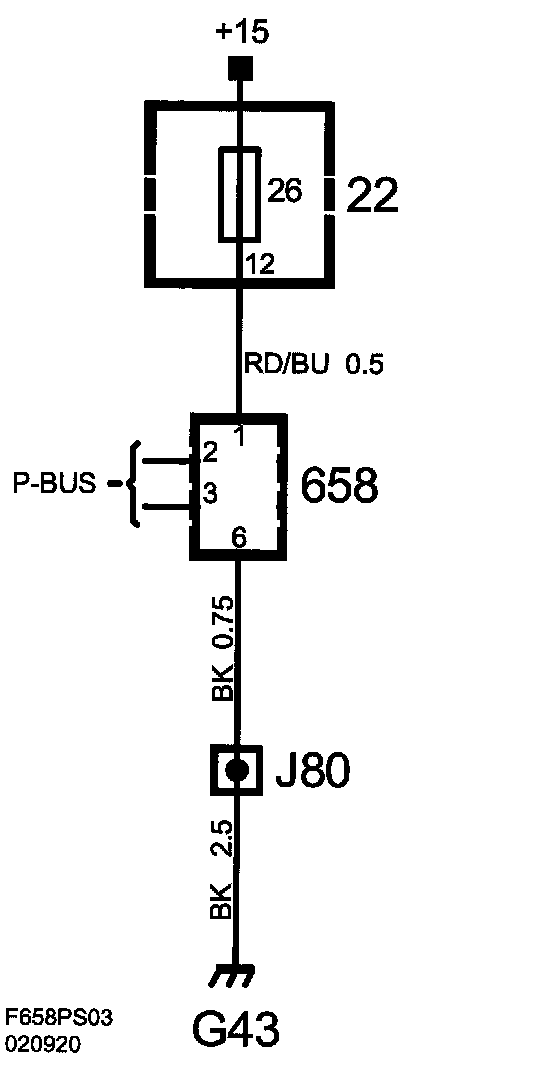

Checking the wiring harness
Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.
Diagnostic help
The sensor is a combined yaw angle sensor and lateral acceleration sensor.
