C0551 46 (TPMM - Tire Pressure Monitor Module)

C0551 46

Control Module not Added







Fault symptom
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Upon start-up.

Enable criteria:
- Vehicle speed above 30 km/h for more than 30 seconds.

Fault criteria:
- Control module not configured.

Diagnostic help

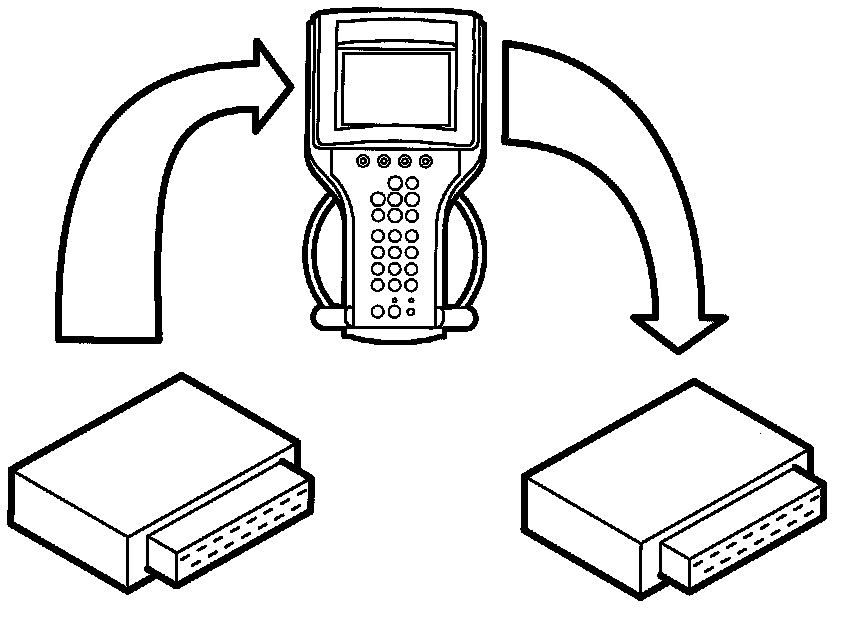

- See "After fitting a control module" under fault diagnosis, general.

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
